Yamaha F75 F80 F90 F100 Trim Tilt Motor 12V 6D8-43880-09

Spain Stock. 5-7days delivery.

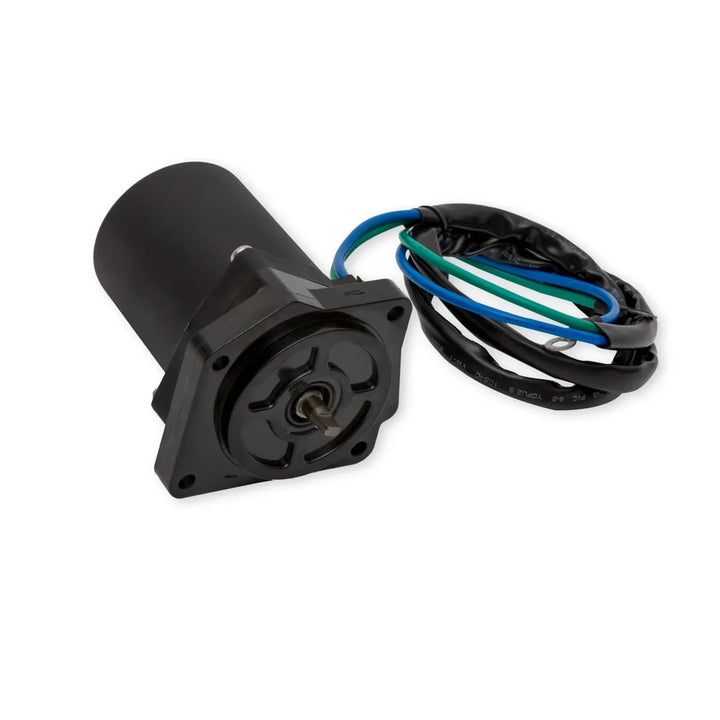

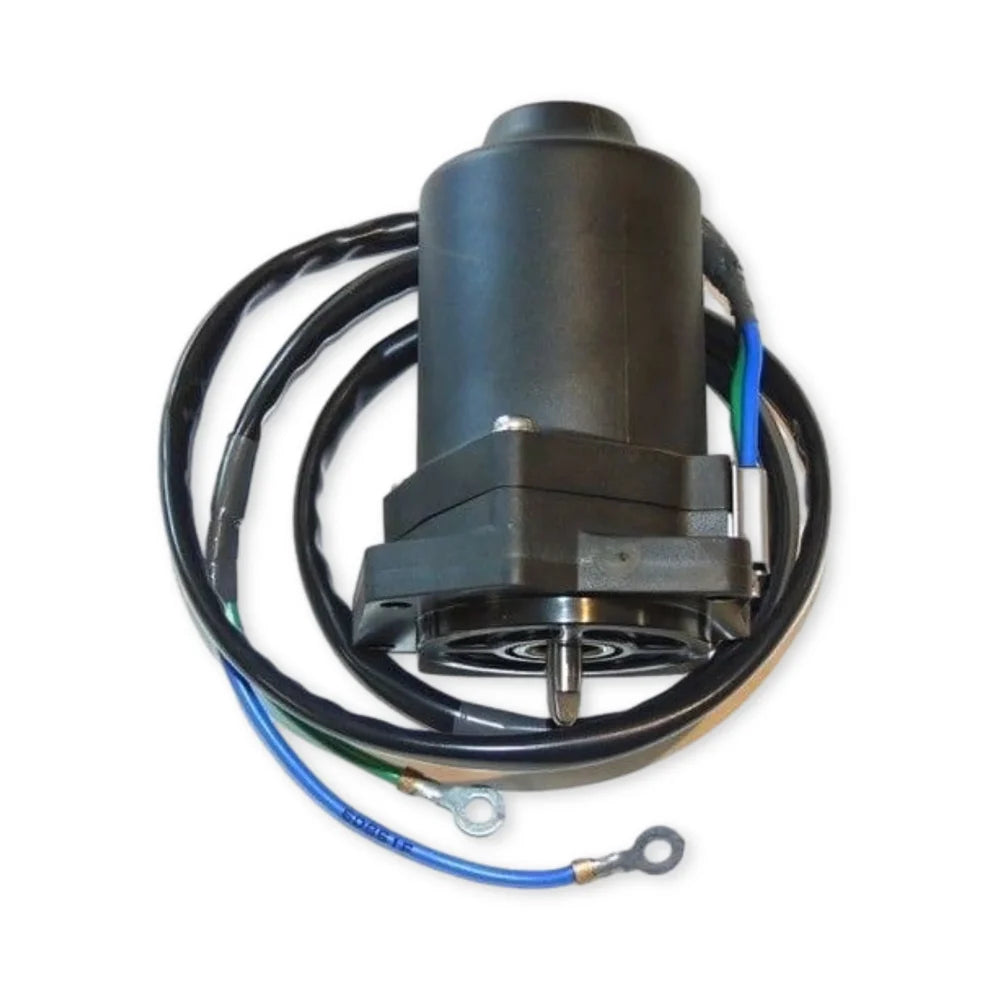

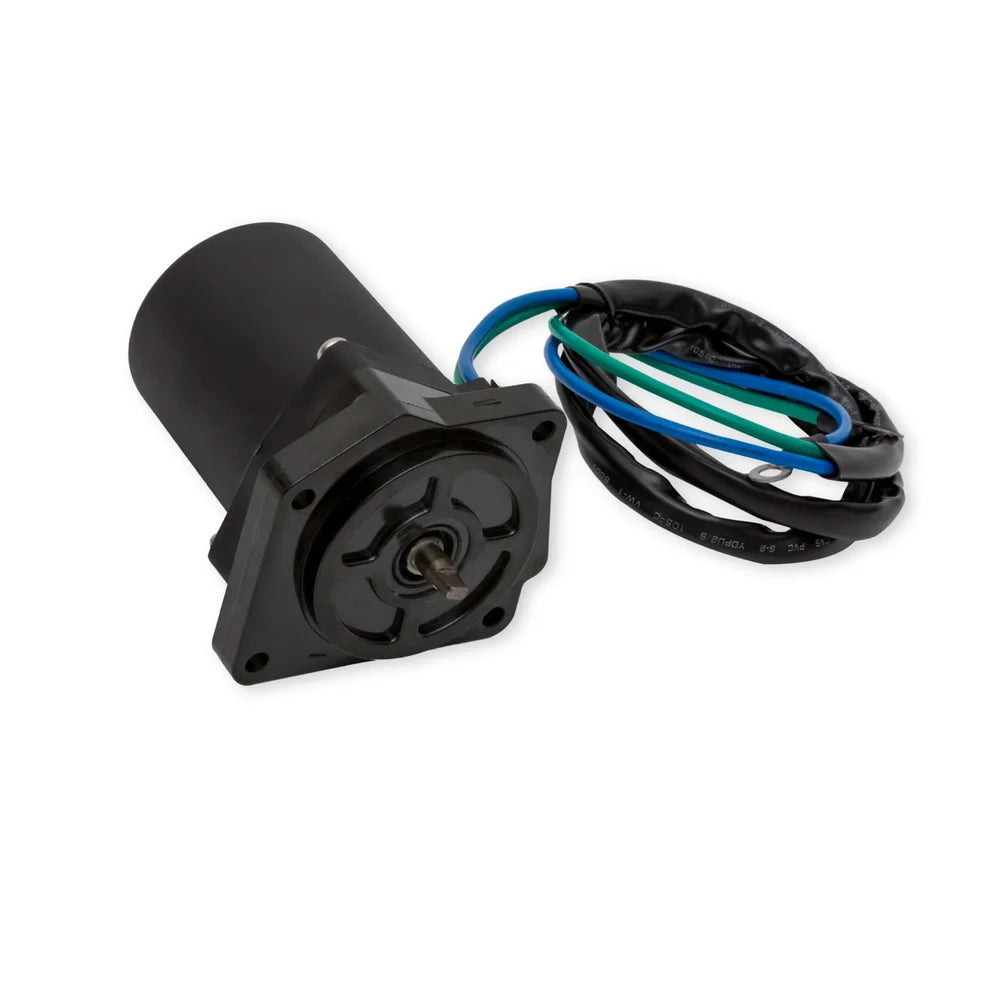

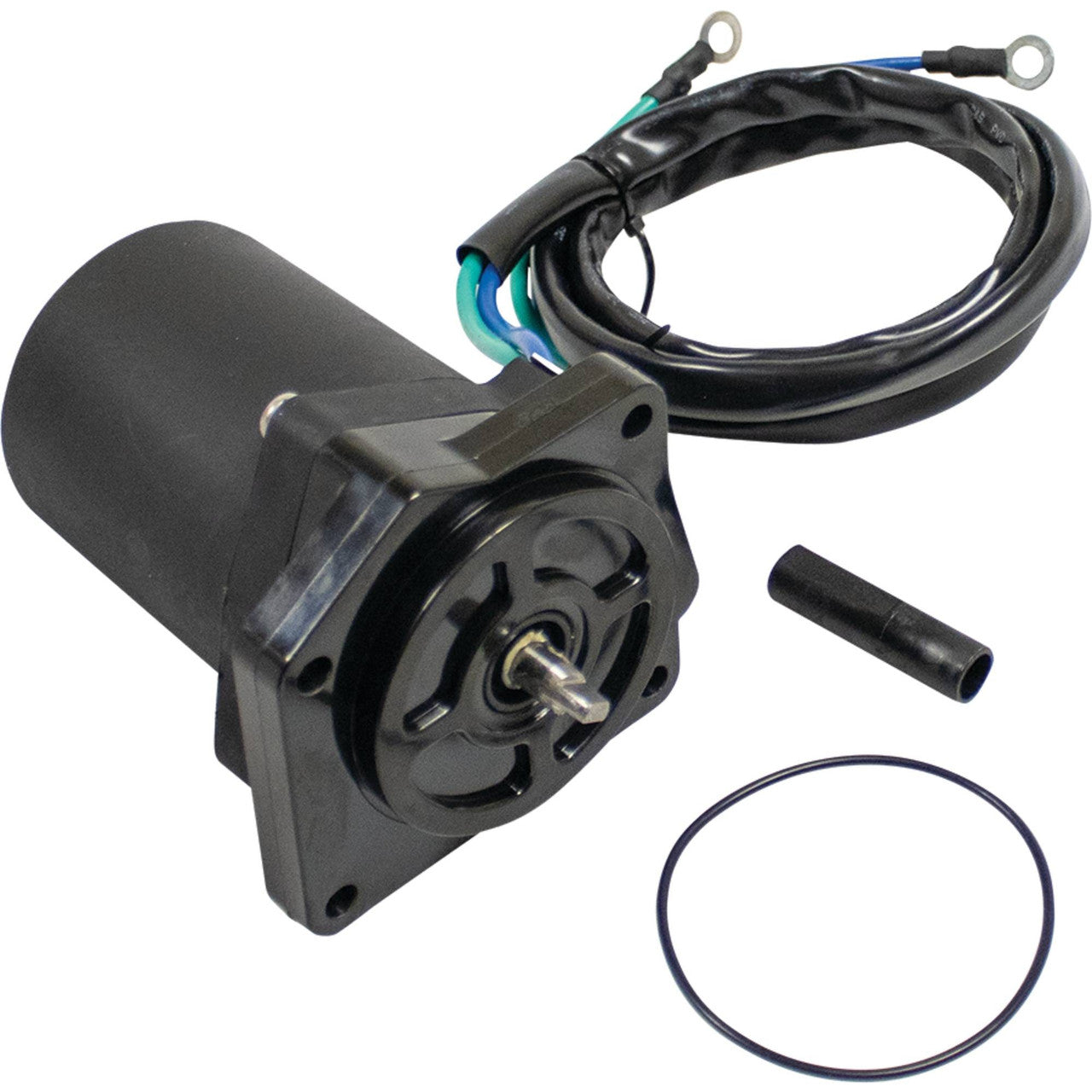

12V power trim-and-tilt motor for specified Yamaha 75-100 HP four-stroke outboards

A two-wire, four-bolt aftermarket replacement motor for the Yamaha model families, years and OEM references listed below.

Key features

  • For specified Yamaha F75, F80, F90 and F100 four-stroke applications
  • 12V DC reversible operation
  • Two-wire electrical connection and four-bolt mounting flange
  • Approximately 65.1 mm motor body with keyed drive shaft
  • Exact model and year table included below

Specifications

Part type New aftermarket power trim-and-tilt motor
Engine brand Yamaha outboard
Engine type Four-stroke petrol outboard
Engine power 75, 80, 90 and 100 HP, only as listed below
Voltage 12V DC
Rotation Reversible
Electrical connection 2 wires
Mounting 4-bolt flange
Motor outside diameter Approximately 65.1 mm / 2.563 in
Shaft diameter Approximately 7.9 mm / 0.311 in
Shaft drive Approximately 3.4 mm keyed shaft
Overall length Approximately 139.6 mm / 5.496 in
Yamaha OEM references 6D8-43880-00, 6D8-43880-01 and 6D8-43880-09
Part status Aftermarket replacement; not a genuine Yamaha boxed part

Yamaha engine applications

Exact Yamaha model Engine Application years
F75 / F75TLR 75 HP four-stroke 2005-2012
F75LA 75 HP four-stroke 2013-2018
F80B / F80LA / F80XA 80 HP four-stroke 2005-2017
F90 / F90TJR / F90TLR / F90TXR 90 HP four-stroke 2005-2012
F90JA / F90LA / F90XA 90 HP four-stroke 2013-2018
F100D 100 HP four-stroke 2006-2014
F100LA / F100XA 100 HP four-stroke 2015-2017
Application years can vary by market and serial range. The OEM parts catalogue and the original component number remain the final fitment authority.

Compatibility and application

Yamaha used more than one trim-motor shaft arrangement. Model and year are not enough on their own: the full OEM number, two-wire connection, four-bolt flange, body diameter and keyed shaft must all match the removed motor.

Check before ordering: Read the complete Yamaha model code and serial plate, then compare the old motor's OEM number and physical construction. Diagnose the battery, relays, wiring, earths and hydraulic trim unit before replacing the motor.

Frequently asked questions

Is this a genuine Yamaha motor?
No. It is an aftermarket replacement for the listed Yamaha OEM references.
Will it fit every Yamaha 75-100 HP outboard?
No. Match the exact model, year, OEM number, wiring, flange and keyed shaft.
Which electrical system does it use?
It is a reversible 12V DC motor with a two-wire connection.
What should be diagnosed before replacement?
Check the battery, relays, wiring, earths and hydraulic trim unit before condemning the motor.

Supplied by 4Boats UK. Check the specification and compatibility information above before ordering.
