12V Power Trim Motor for Yamaha 40-90 HP Outboards 6H1-43880-02-00 18-6781
T3410
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

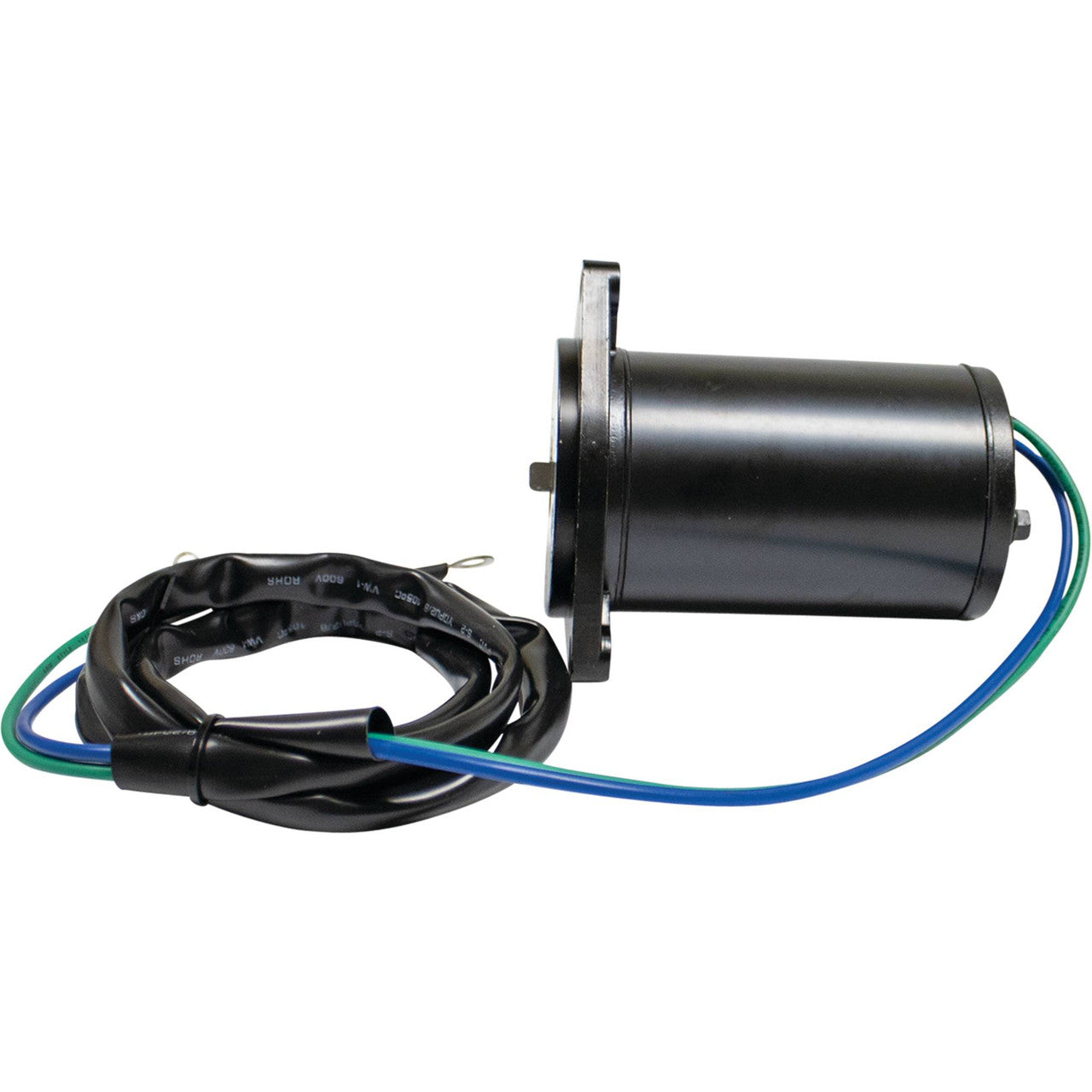

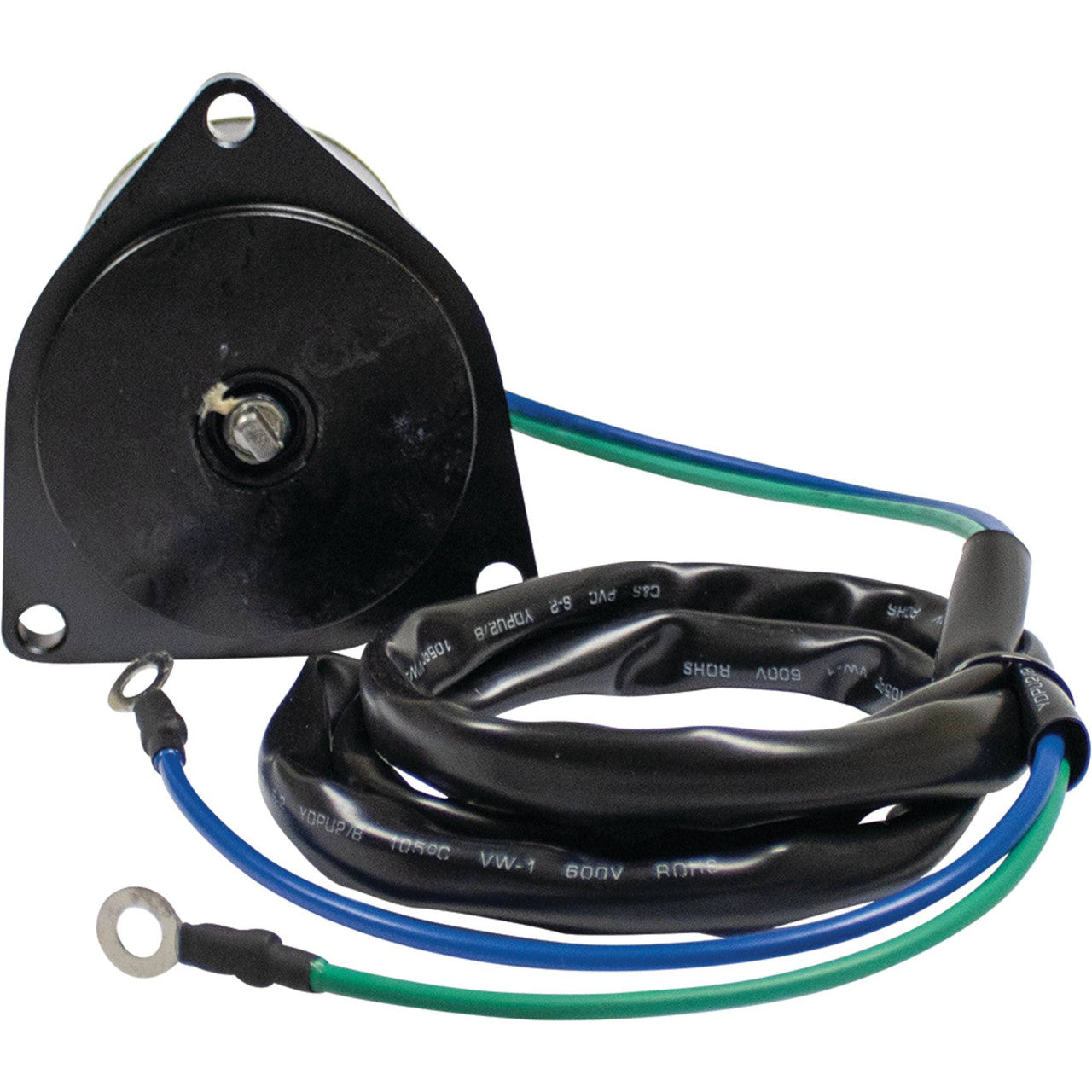

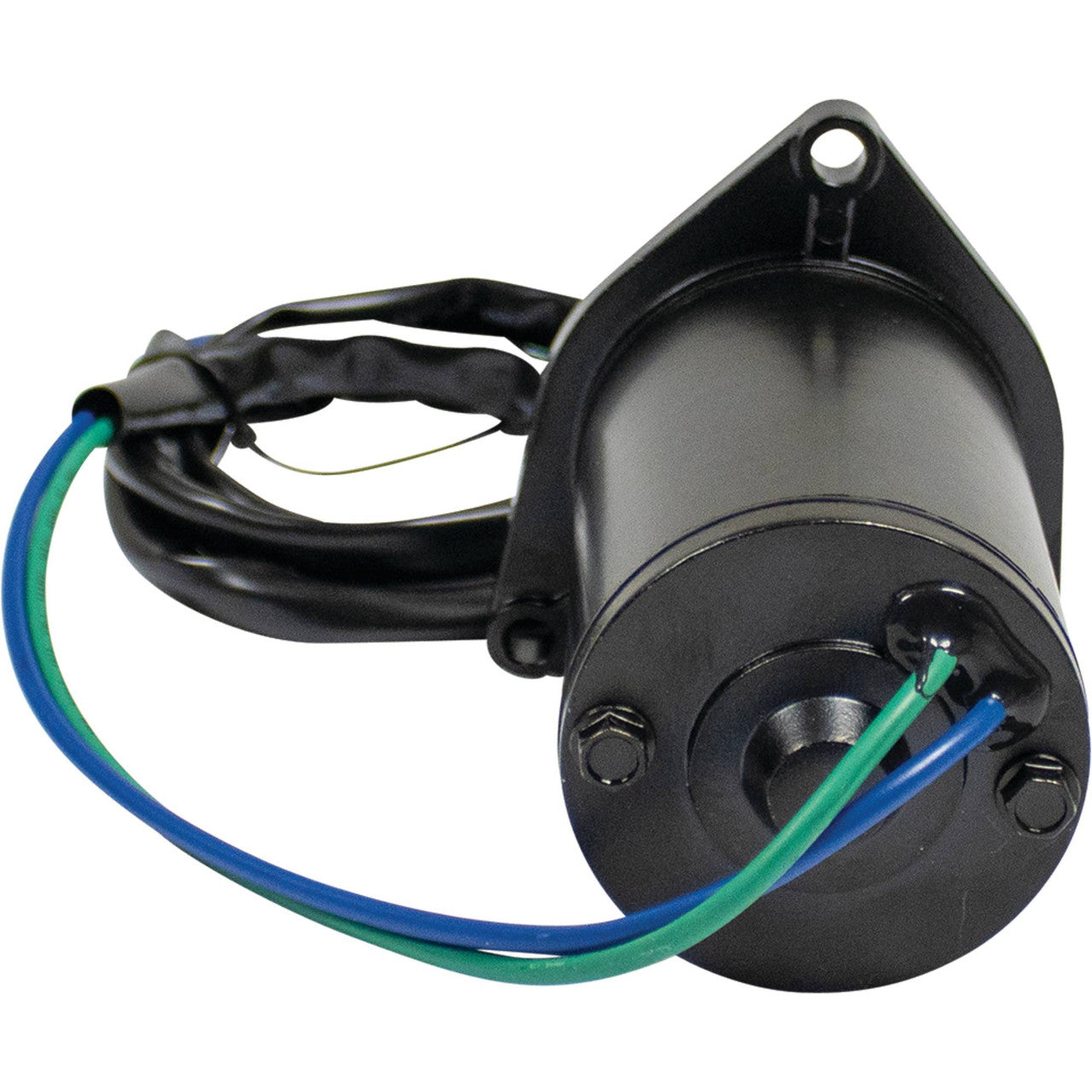

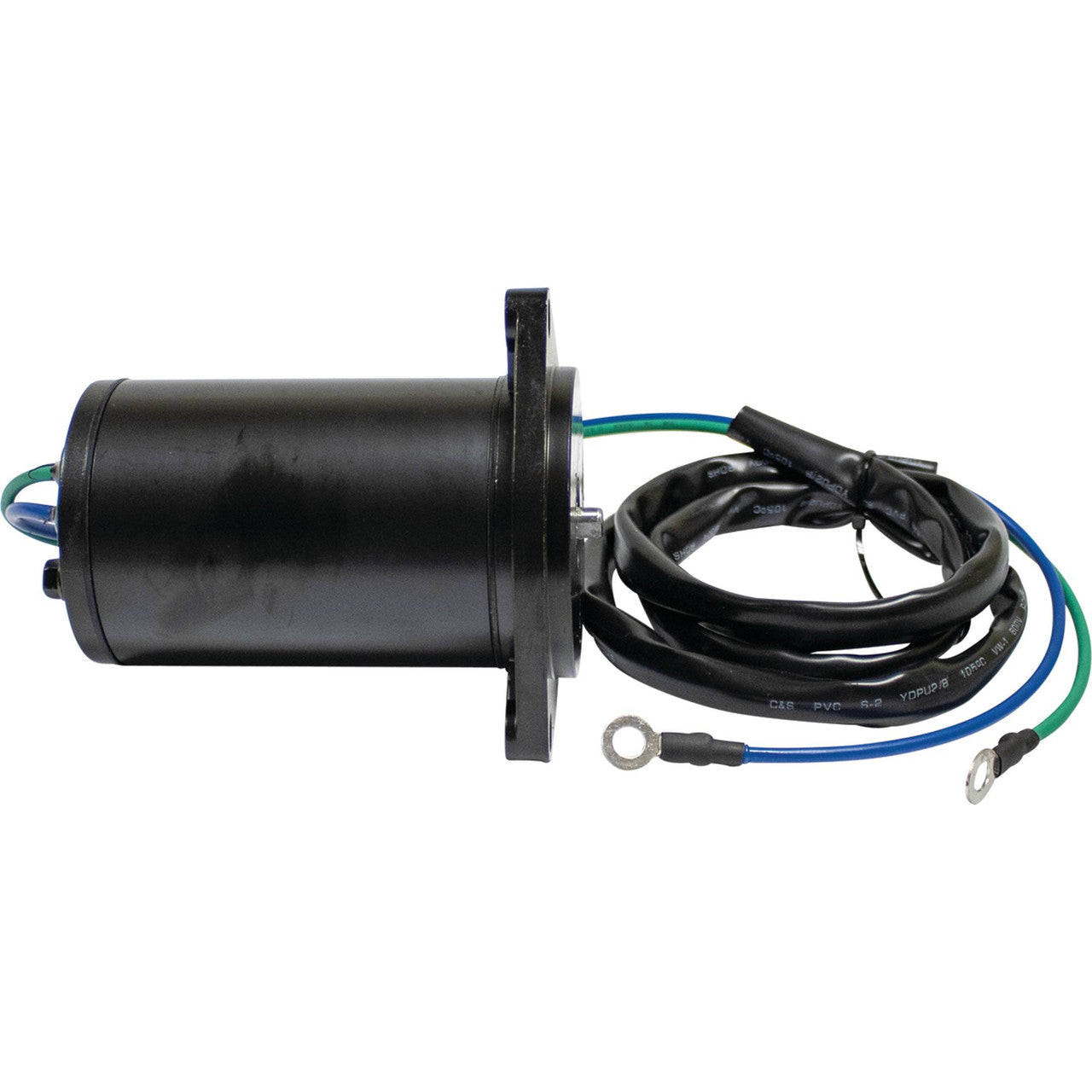

Power Trim Motor 6H1-43880-02-00
For Yamaha 40-90 HP Outboard Engines
This 12V Power Trim and Tilt motor is a premium aftermarket replacement designed to restore smooth lifting and lowering functionality to your Yamaha outboard. Engineered for durability in harsh marine environments, it features a corrosion-resistant housing and high-torque performance to ensure reliable operation in both salt and freshwater conditions.
Key Features
- ✔ Direct fit replacement for Yamaha 2-stroke
- ✔ High-grade corrosion-resistant materials

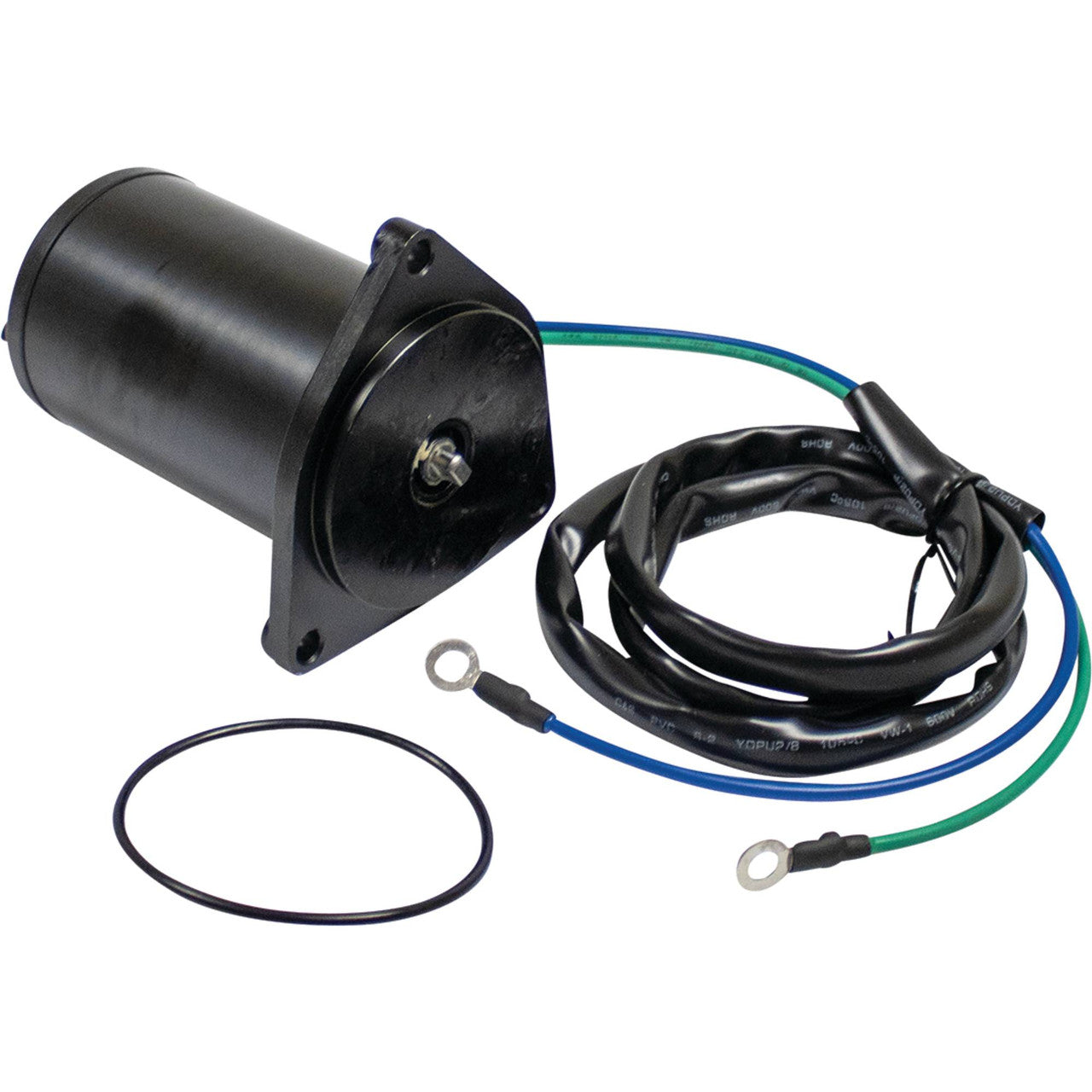

- ✔ Includes sealing O-ring
- ✔ 2-Wire connection with ring terminals
Technical Specs
| Voltage | 12V DC |
| Rotation | Reversible (Bi-directional) |
| Wires | 2-Wire (Blue/Green) |
| Mounting | 3-Bolt Mount |
| Shaft Type | Flat-Blade (Tang) |
| Shaft Size | Approx. 4mm |
Compatibility / Fitment Guide
| Engine Range | Approx. Years | Model Codes |
|---|---|---|
| Yamaha 40 HP | 1992 - 1994 | 40H, 40EJ, 40EL, 40TLR |
| Yamaha 50 HP | 1992 - 1995 | 50D, 50G, 50TLH, P50TLR |
| Yamaha 60-70 HP | 1992 - 2010 | 60F, 70B, 60TLR, 70TLR |
| Yamaha 75-85 HP | 1992 - 1999 | 75A, 75C, 80A, 85A, C85TLR |
| Yamaha 90 HP | 1992 - 2010 | 90A, 90TLR, 90TJR, B90TLR |
OEM Cross Reference
| Yamaha OEM | 6H1-43880-00, 6H1-43880-01, 6H1-43880-02, 6H1-43880-02-00 |
| Sierra Marine | 18-6781 |
| Arco Marine | 6260 |
| Lester / WAI | 10830 / W10830N |
| Other | API PT602NM, Arrowhead TRM0025, Mallory 9-18406 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance on Yamaha systems.
How do I know if it is compatible?
We recommend checking your current motor's mounting (3-bolt) and shaft type (flat blade). If your original part number matches any of the OEM references provided, it is a guaranteed fit.
Does this include the O-ring for installation?
Yes, this motor comes complete with a high-quality sealing O-ring to ensure a watertight seal during installation.
Note: Visit 4boats.co.uk for more technical support. Please verify your original part number against the references above before purchasing.
