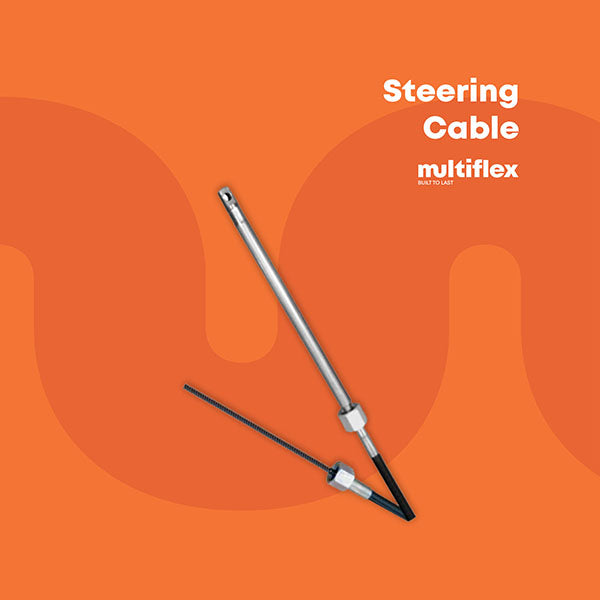

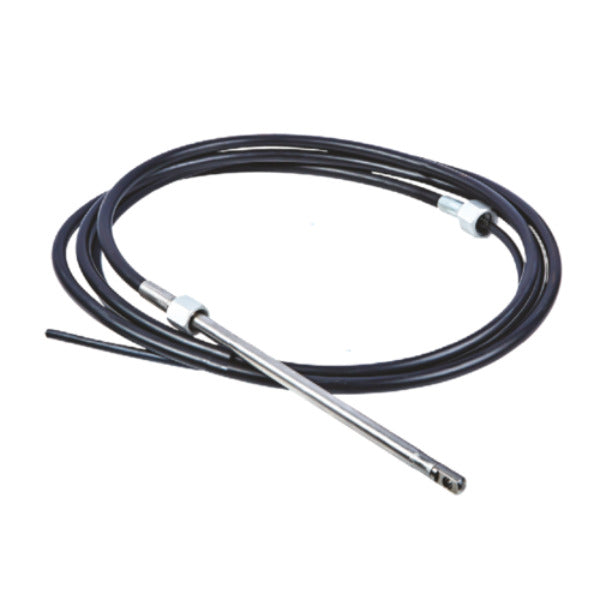

Multiflex SC-11 Thread-Connect Steering Cable 16ft
Multiflex Marine Component | SC-11-16
This 16 ft Multiflex SC-11 mechanical steering cable uses the manufacturer’s thread-connect helm interface. It transfers helm rotation to the engine or rudder through a stainless-ended push-pull cable assembly.
Key Features
- ✔ 16 ft nominal cable length
- ✔ Thread-connect helm end
- ✔ Stainless-steel output ends
- ✔ 230 mm maximum travel
- ✔ 8 in / 200 mm minimum bend radius
- ✔ Exceeds ISO 8848 steering-cable requirements
Technical Specs
| Series | SC-11 thread connect |
| Length | 16 ft / approx. 4.88 m |
| Maximum travel | 9 in / 230 mm |
| Minimum bend radius | 8 in / approx. 200 mm |
| Maximum tiller-end working load | 5000 N / 500 kg |
| Outer diameter | 15 mm |
| Inner cable | 8 mm spiral |
| Part number | SC-11-16 |
Compatibility / Fitment Guide
Confirmed Multiflex helms: LM-H-001 single and LM-H-002 double thread-connect helms; Multiflex also specifies SC-11 for its H4 / MS4 reduction steering system.
Length selection: replace an existing cable by matching the SC-11 code and length, or measure the complete helm-to-engine route using the manufacturer’s method. Allow for broad bends and outboard movement through full trim, tilt and steering.
Engine/rudder end: confirm the tilt-tube or clamp-mount arrangement and the required link arm. The 230 mm cable travel must suit the steering geometry.
Not compatible: SC-16 Easy Connect, SC-18 Lite 55, rack systems or unrelated quick-connect helms.
Part Number Cross Reference
| Multiflex cable | SC-11-16 |
| Compatible helms | LM-H-001 / LM-H-002; H4 system |
| Series reference | SC-11-XX, where XX is feet |
Frequently Asked Questions
Will it fit an Easy Connect helm?
No. Easy Connect helms use SC-16.
Can I replace a 16 ft cable with a different length?
Only after measuring the routing correctly; excess cable must not be forced into tight bends.
What does 16 ft measure?
It is the manufacturer’s nominal cable length designation, not simply the straight-line distance from wheel to engine.
Is the helm included?
No. This listing is for the steering cable only.
Compare the exact part number, interface and installation geometry before purchase. Steering and control components should be installed and checked by a competent marine technician.
