Fuel Pump for Yamaha Outboard 25-90HP 663-24410-00-00 692-24410-01-00 2-Stroke
1399-39553
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon

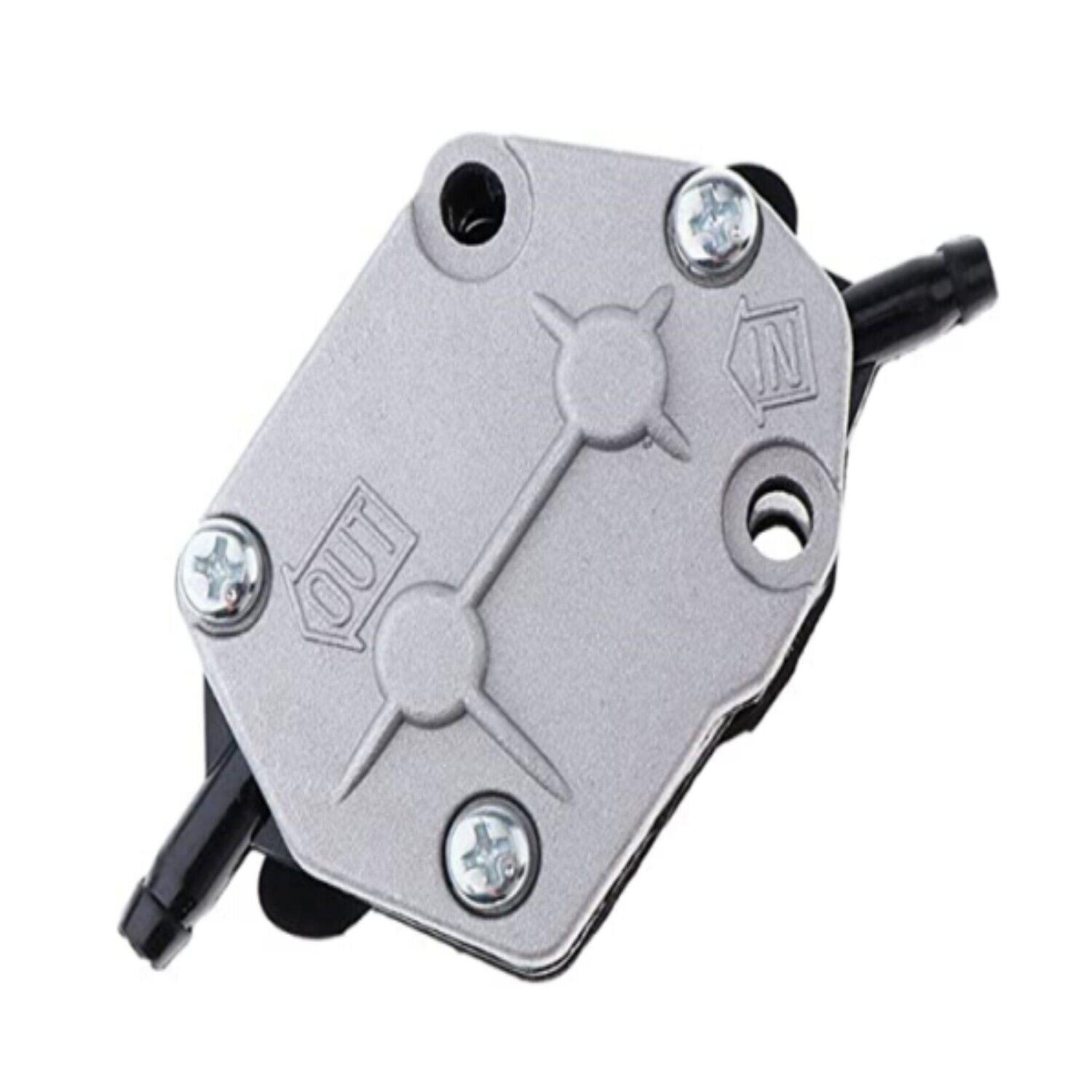

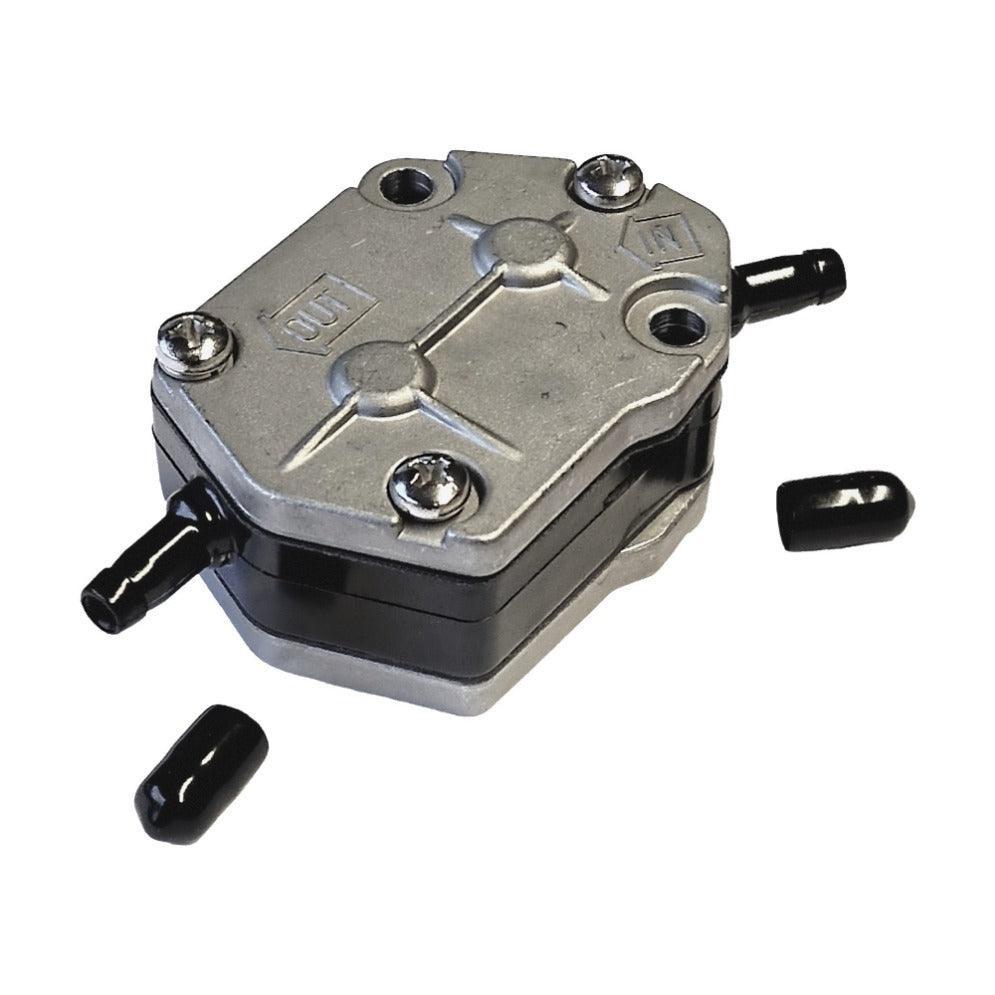

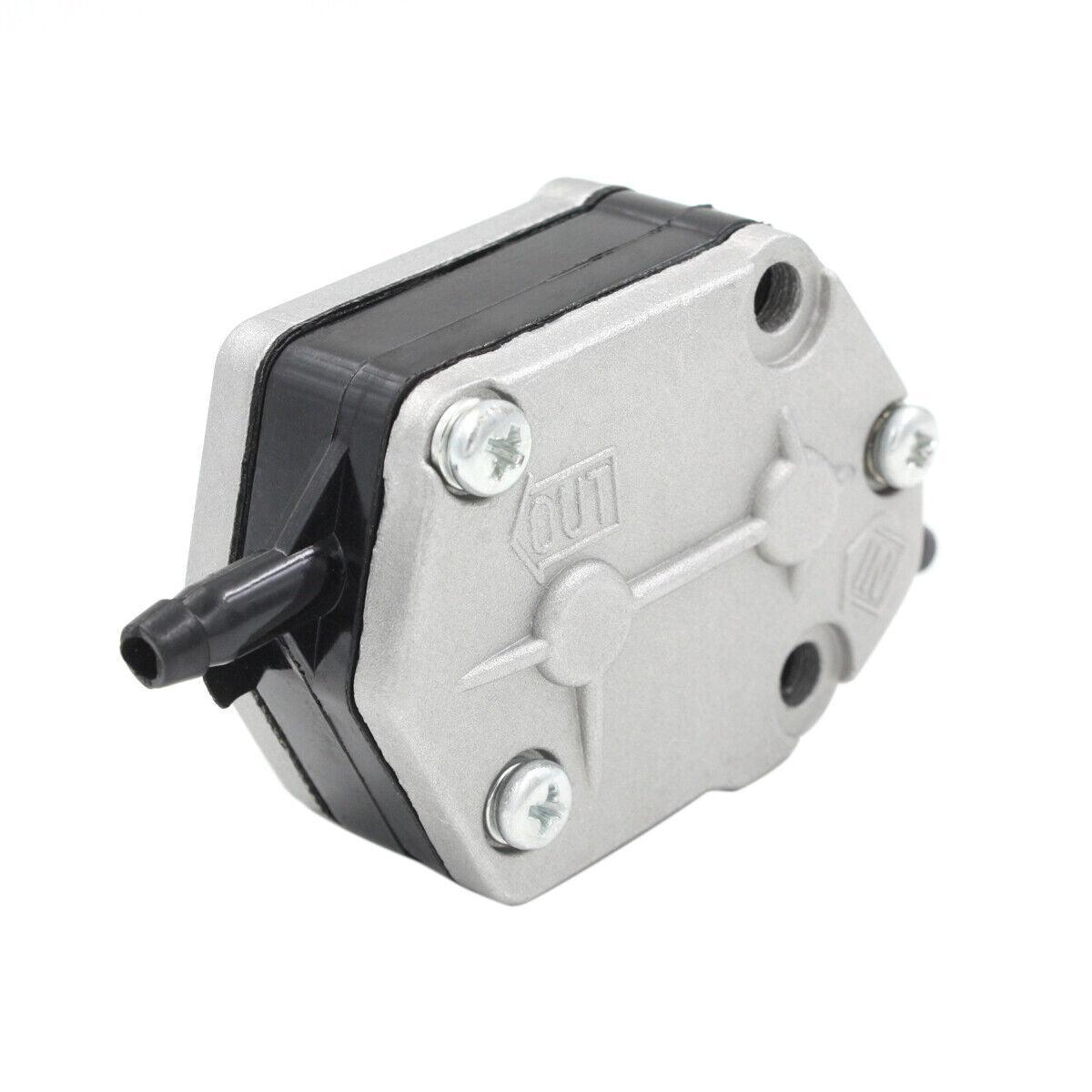

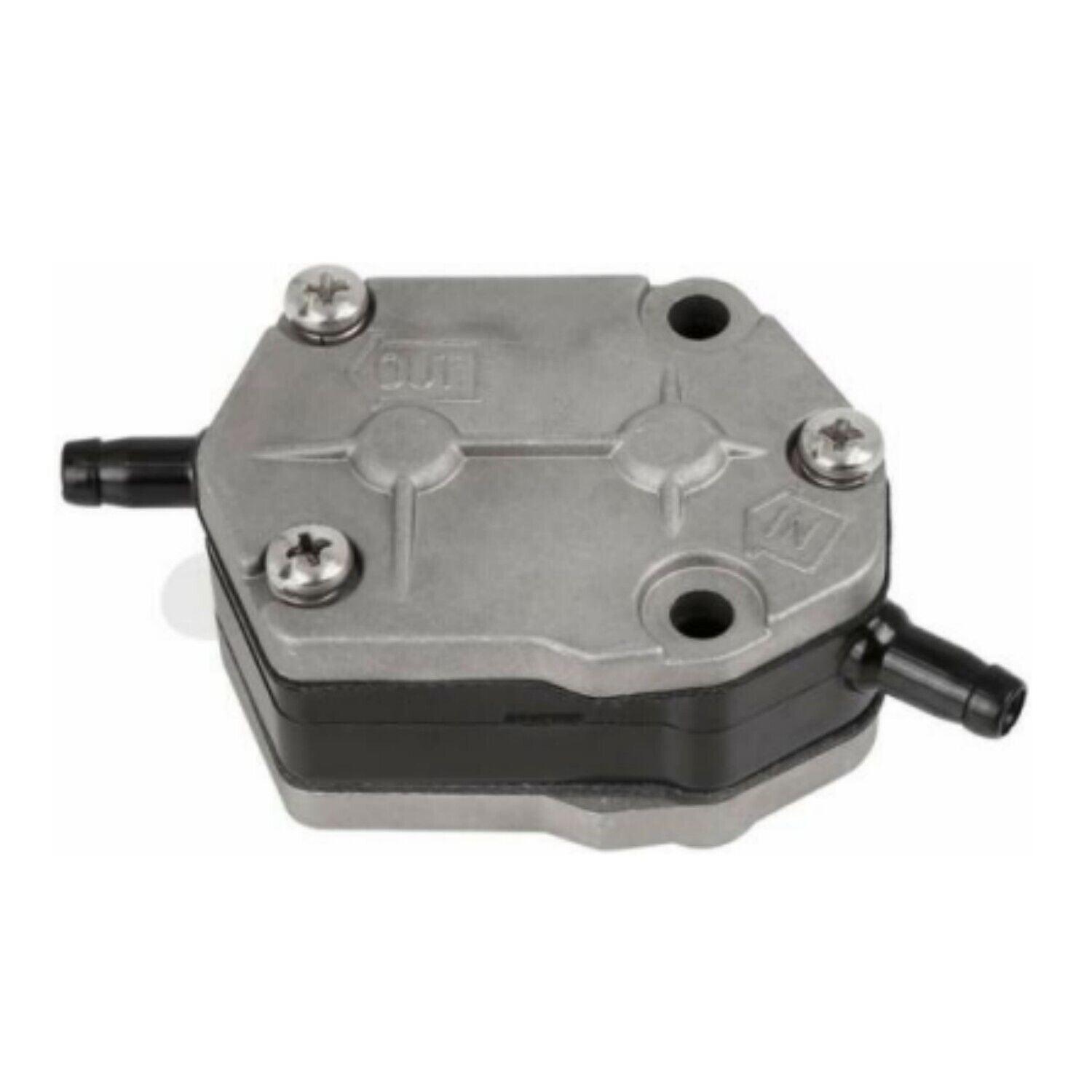

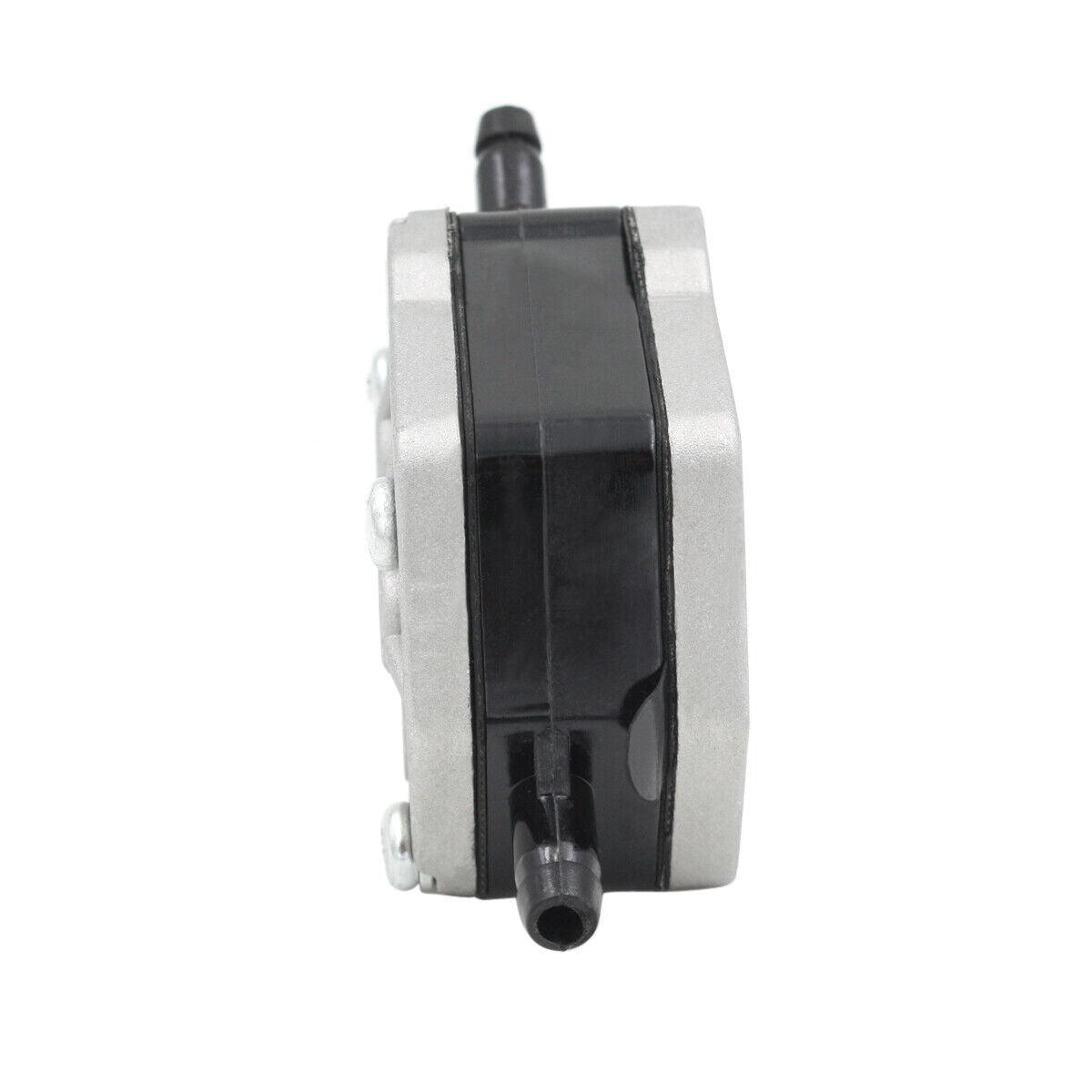

Yamaha Fuel Pump Assembly
SKU: 663-24410-00-00 / 692-24410-01-00
This premium fuel pump assembly is a critical component for maintaining the performance of your Yamaha 2-stroke outboard engine. It is designed to provide consistent, reliable gasoline delivery to the carburetors, ensuring smooth idling and peak power across the RPM range. Constructed from marine-grade aluminum alloy, this pump is engineered to resist corrosion and withstand the harsh vibrations of high-speed marine operation.
Key Features
- β Direct fit replacement for easy installation
- β Marine-grade aluminum alloy housing
- β High-temperature resistant diaphragm
- β Optimized for 2-stroke fuel/oil mixtures
Technical Specs
| Engine Type: | 2-Stroke Outboard |
| Fuel Type: | Gasoline |
| Pump Type: | Mechanical Diaphragm |
| Max Temp: | 105Β°C Vapor Resistance |
Compatibility / Fitment Guide
| Make | Horsepower Range | Common Applications |
|---|---|---|
| Yamaha 2-Stroke | 25 HP - 30 HP | C25, C30, CV30 (1985-2001+) |
| Yamaha 2-Stroke | 40 HP - 55 HP | 40TLR, C40, C55, E48 (1985-2015) |
| Yamaha 2-Stroke | 60 HP - 90 HP | 60TLR, 70TLR, 90TLR, C90, P60 (1986-2010+) |
OEM Cross Reference
| Yamaha OEM: | 663-24410-00-00, 692-24410-01-00, 692-24410-00-00, 6A0-24410-00-00 |
| Yamaha Alternate: | 6A0-24410-01 thru 05, 648-24410-00, 679-24410-00 |
| Sierra Marine: | 18-7334 |
| Mallory Marine: | 9-35300, 9-35305 |
Questions & Answers
Is this a genuine original part?
This is a premium quality replacement fuel pump assembly, manufactured to meet or exceed the performance specifications of the original Yamaha factory part.
How do I know if it is compatible?
This pump is designed for Yamaha 2-stroke engines from 25HP to 90HP. If your original part number matches any of the OEM numbers in our cross-reference list, it is a guaranteed fit.
Does this require a separate gasket for installation?
While this is a complete pump assembly, it is always recommended to check your mounting surface. Some applications may require the standard 18-7797 diaphragm kit if rebuilding, but as a full assembly, this is a direct bolt-on replacement.
Note: Please verify your original part number against the references above before purchasing. Domain: 4boats.co.uk.
