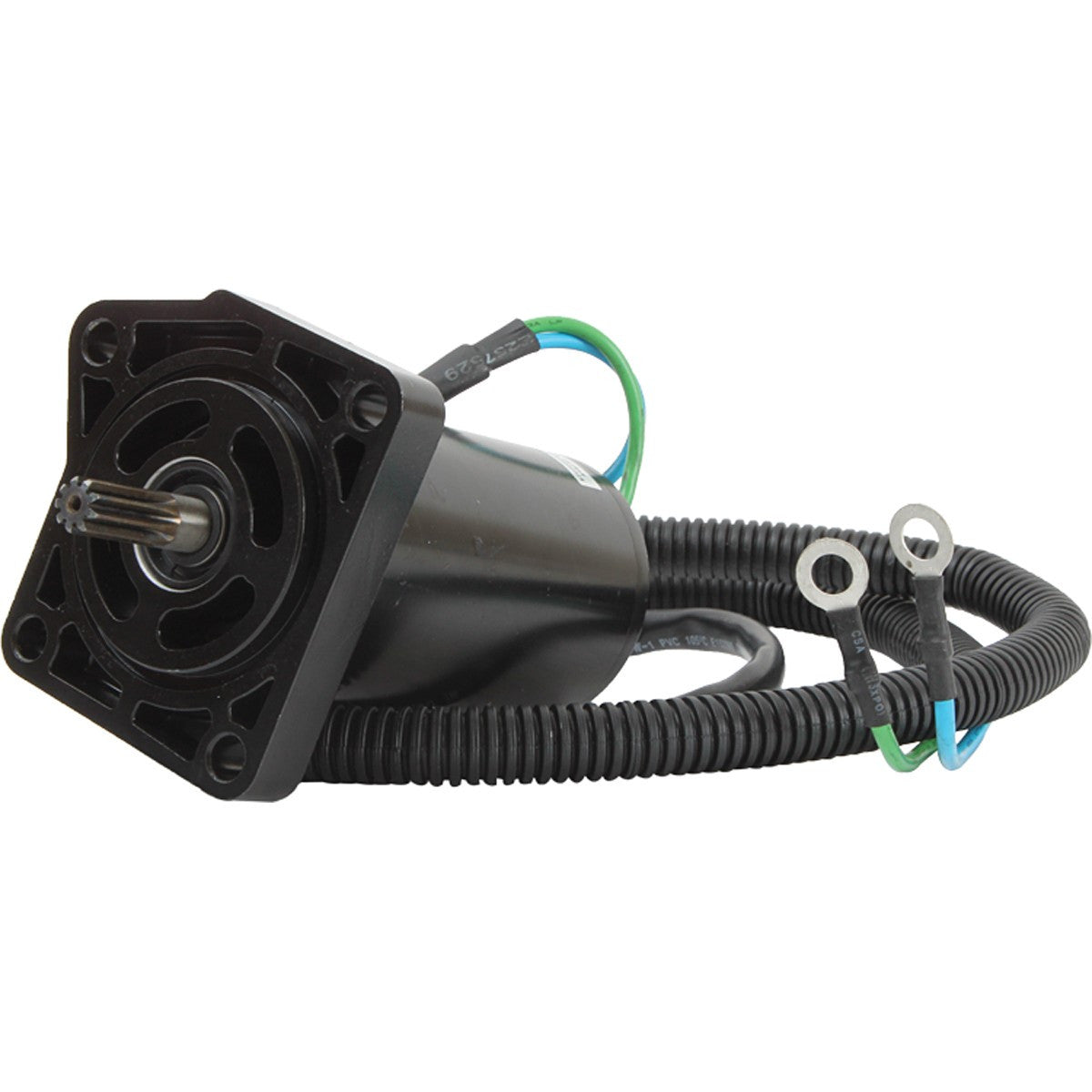

12V power trim motor for Yamaha outboard F30 F40, black with wiring, marine boat part
Boat starter motor with attached cables, marine engine part from 4Boats UK
Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00
Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00

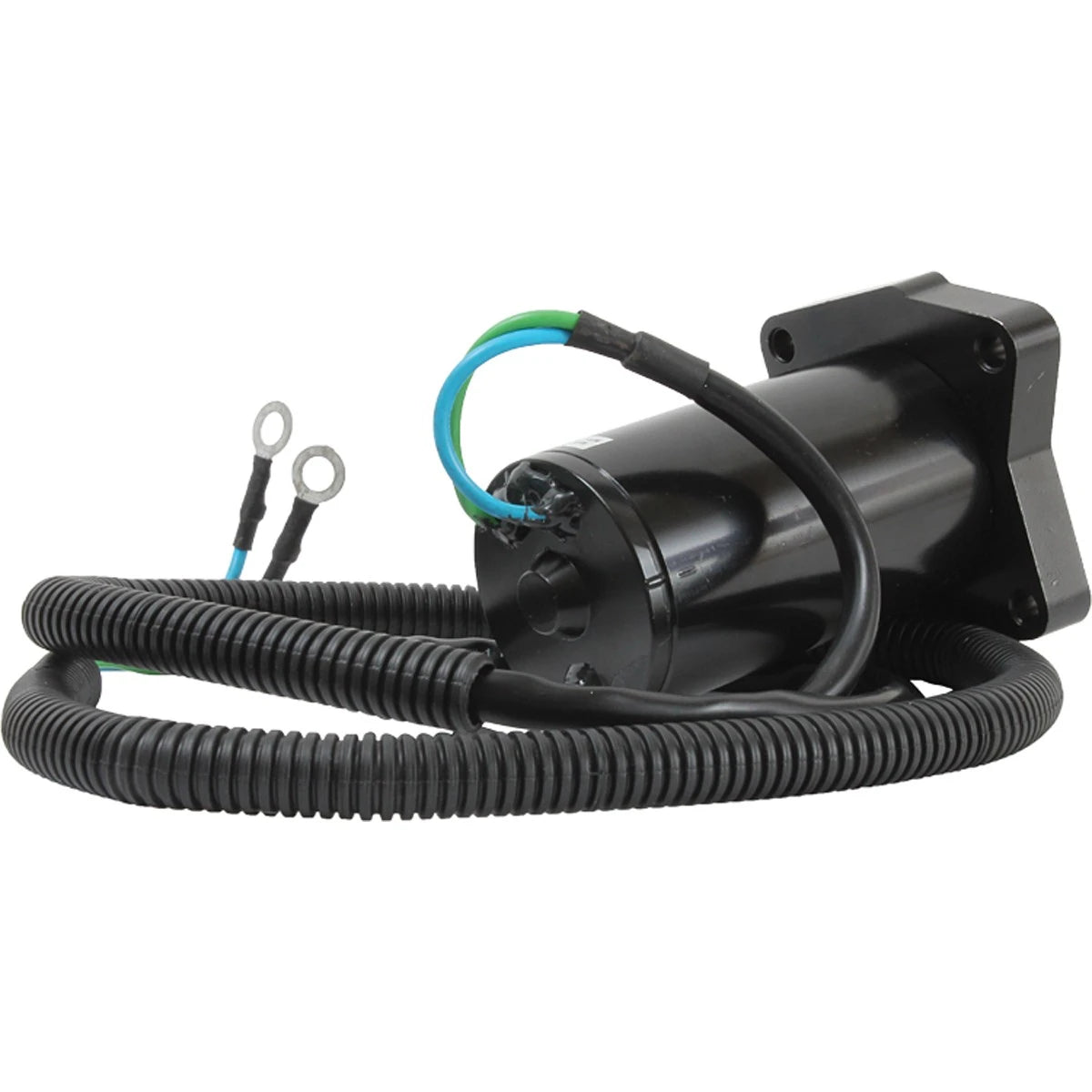

Outboard trim motor with wiring harness, marine boat part from 4Boats UK

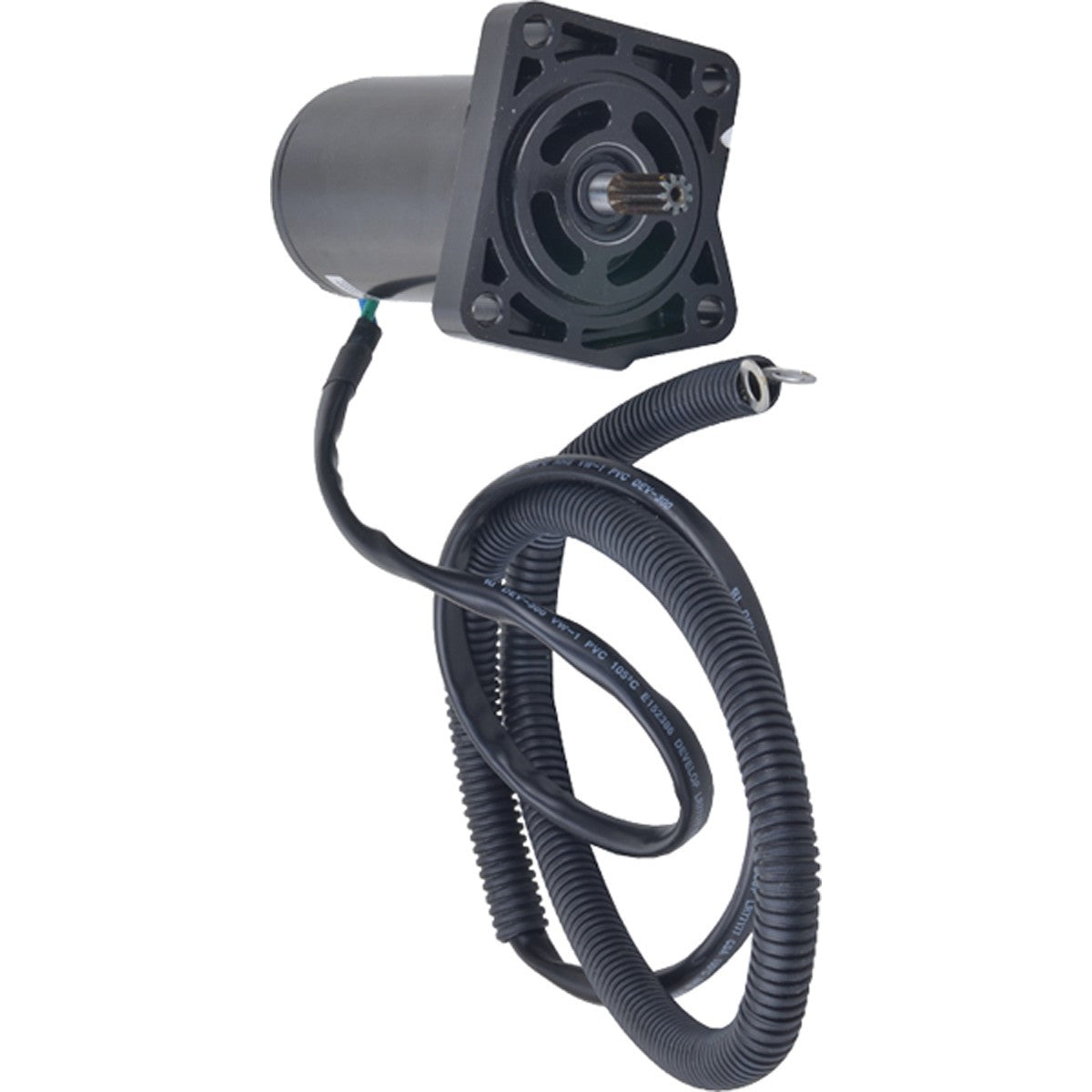

Boat trim motor part with black wires for marine engines, 4Boats UK marine accessories

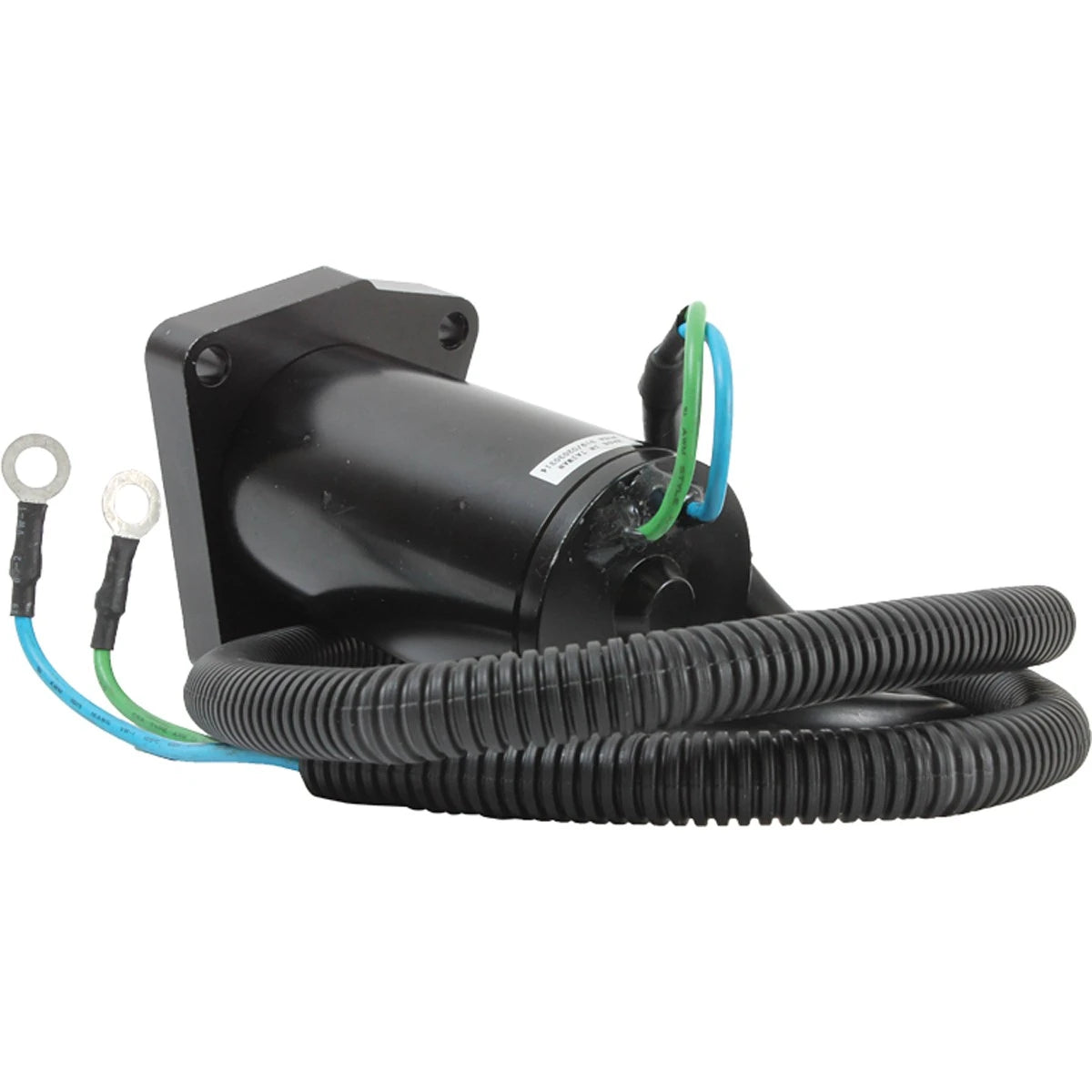

Boat engine trim motor part with wiring for outboards, marine accessory from 4Boats UK
12V power trim motor for Yamaha outboard F30 F40, black casing, wiring visible
Power trim motor for Yamaha outboard F30 F40 4-stroke, marine part, 4Boats UK
Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00
Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00
12V power trim motor for Yamaha outboard F30 F40, black with wiring, marine boat part
Boat starter motor with attached cables, marine engine part from 4Boats UK
Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00
Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00
Outboard trim motor with wiring harness, marine boat part from 4Boats UK
Boat trim motor part with black wires for marine engines, 4Boats UK marine accessories
Boat engine trim motor part with wiring for outboards, marine accessory from 4Boats UK
12V power trim motor for Yamaha outboard F30 F40, black casing, wiring visible
Power trim motor for Yamaha outboard F30 F40 4-stroke, marine part, 4Boats UK
Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00
Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00

Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00

67C-43880-00

  • Dispatched in 2-3 days
  • 30 Day Return Policy
  • In stock, ready to ship
  • Backordered, shipping soon
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
£199.00 £129.00 Save £70.00
/
Tax included.

Yamaha F25 T25 F30 F40 30D 40XWT Trim Motor 67C-43880-00

Power trim-and-tilt motor for specified Yamaha 25-40 HP outboards

A 12V reversible aftermarket replacement motor with a nine-spline shaft, two-wire ring-terminal connection and four-bolt flange for the Yamaha applications and years listed below.

Key features

  • Aftermarket replacement for the listed Yamaha OEM references
  • For specified Yamaha 25-40 HP two-stroke and four-stroke outboards
  • 12V DC reversible motor with two ring-terminal leads
  • Nine-spline 8.8 mm drive shaft and four-bolt mounting flange
  • Exact engine-family, model and year tables included below

Specifications

Part type New aftermarket replacement
Product type Power trim and tilt motor
Engine brand Yamaha outboard
Engine power range 25-40 HP, only for the applications listed below
Electrical system 12V DC
Rotation Reversible
Electrical connection 2 wires with ring terminals
Mounting 4-bolt flange with approximately 6 mm unthreaded holes
Drive shaft 9 spline
Shaft diameter 8.8 mm / 0.346 in
Motor outside diameter 52 mm / 2.047 in
Overall length Approximately 133 mm / 5.236 in
Approximate weight 2.5 kg
Yamaha OEM references 65W-43880-00, -01, -10, -20, -21; 67C-43880-00, -01, -10
Part status New aftermarket replacement; not a genuine Yamaha boxed part

Engine fitment by family and year

Yamaha family Engine Year range Fitment note
Yamaha F25 25 HP four-stroke 1998-2021 Includes multiple F25 ELR/ELH/ESR/ESH/MLH/MSH/TLR suffixes; verify suffix, serial and OEM number
Yamaha T25 25 HP high-thrust four-stroke 2001-2019 Detailed applications include T25TLR 2001-2006 and T25LA 2010-2016
Yamaha F30 30 HP four-stroke 2001-2021 Detailed applications include F30TLR 2001-2006 and F30LA 2014-2016
Yamaha F40 40 HP four-stroke 2000-2021 Detailed submodels and years are listed below
Yamaha 30D 30 HP two-stroke, 3 cylinder 1998-2016 Match the original 65W/67C trim-motor reference
Yamaha 40XWT 40 HP two-stroke, 2 cylinder 1998-2017 Match the original 65W/67C trim-motor reference

Detailed Yamaha model applications

Exact model Engine Confirmed application years
F30TLR 30 HP four-stroke 2001-2006
F30LA 30 HP four-stroke 2014-2016
F40TLR 40 HP four-stroke 2000-2007
F40EJR 40 HP four-stroke jet 2003-2007
F40ESR 40 HP four-stroke 2000-2004
F40MLH 40 HP four-stroke tiller 2001-2007
F40MJH 40 HP four-stroke jet/tiller 2001-2007
F40MSH 40 HP four-stroke tiller 2001-2006
F40BEJR / F40BMJH / F40BMLH / F40BTLR 40 HP four-stroke B-series 2008
F40LA 40 HP four-stroke 2009-2016
T25TLR 25 HP high-thrust four-stroke 2001-2006
T25LA 25 HP high-thrust four-stroke 2010-2016
Model lists vary by market. For engines outside the detailed rows but inside a family range, match the full Yamaha serial/parts catalogue and original 65W or 67C motor number.

Compatibility and application

This motor is not selected by horsepower alone. The engine model suffix, production year, original motor number, nine-spline shaft, 52 mm body, 8.8 mm shaft, four-bolt flange and two-wire connection must agree.

Check before ordering: Read the full Yamaha model code and serial plate, then compare the old motor's OEM number and physical construction. Diagnose the battery supply, relays, wiring, earths and hydraulic trim assembly before replacing the motor.

Frequently asked questions

Is this a genuine Yamaha motor?
No. It is a new aftermarket replacement for the listed Yamaha OEM references.
Does it fit every Yamaha 25-40 HP outboard?
No. Only the listed models and years are potential applications, and the OEM number plus physical construction must match.
Does it have a spline or flat drive?
It has a nine-spline shaft measuring approximately 8.8 mm in outside diameter.
What must be checked before replacement?
Check the battery, relays, wiring and hydraulic unit, then compare the old motor number, flange, shaft and two-wire connection.

Supplied by 4Boats UK. Check the specification and compatibility information above before ordering.
