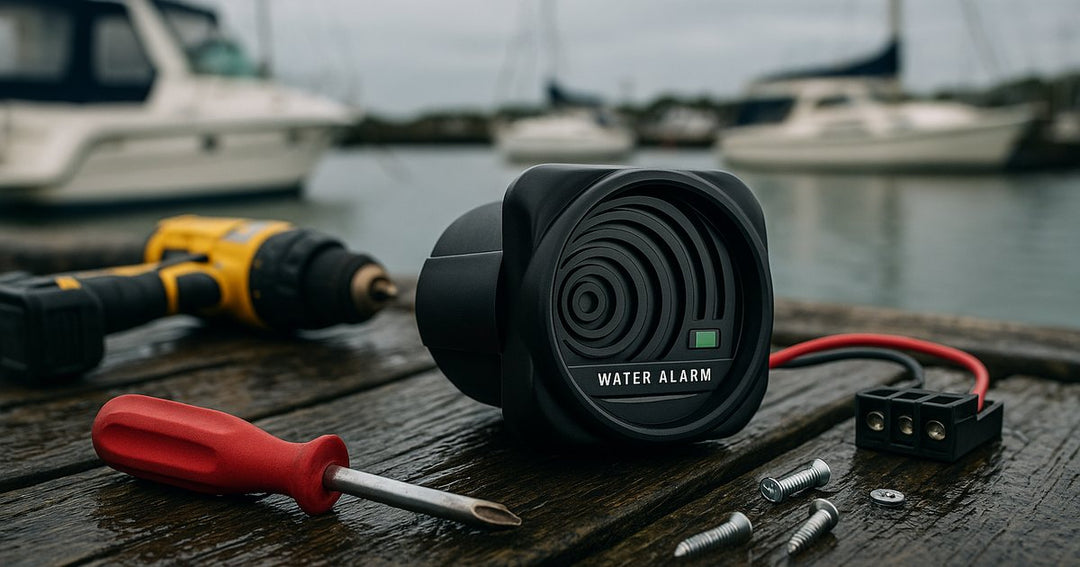

How to Install Your Seaflo 24V Bilge Water Alarm Panel
In the unpredictable waters around the UK, early detection of water ingress can be the difference between a minor inconvenience and a major disaster. A Seaflo 24V Bilge Water Alarm Panel is a crucial safety device that alerts you to rising water levels in your bilge, allowing you to address leaks before they become critical. This guide will take you through a detailed, step-by-step process to correctly install this panel on your boat, ensuring peace of mind on your next voyage.
Understanding the Seaflo 24V Bilge Water Alarm Panel
The Seaflo 24V Bilge Water Alarm Panel is designed to monitor water levels in your bilge and provide an audible and visual alert when water is detected. This system is particularly important in the UK, where unpredictable weather and tidal conditions can lead to unexpected water ingress. The alarm is powered by a 24V DC system and can handle a maximum current of 10A. It includes a float switch, which activates the alarm when water levels rise to a predetermined point.
Before installation, it is important to understand the components and their functions. The alarm panel consists of a control panel, a float switch, and wiring to connect these components. The float switch is installed in the bilge, and it triggers the alarm when it floats due to rising water levels. The control panel, typically installed at the helm or another easily accessible location, houses the audible and visual alarms.
Tools and Materials Needed
Before starting the installation, gather the necessary tools and materials. You will need:
- Electric drill with drill bits
- Wire strippers and crimping tool
- Screwdrivers (Phillips and flathead)
- Multimeter
- Marine-grade wire (AWG 16-18 recommended)
- Heat shrink tubing
- Marine sealant
- Cable ties
Ensure all electrical connections are made using marine-grade materials to prevent corrosion from the salty and moist marine environment. The use of heat shrink tubing and marine sealant will protect connections from moisture ingress.
Step-by-Step Installation Guide
- Plan the Installation: Decide on the location for the control panel and float switch. The control panel should be easily accessible, while the float switch needs to be in the lowest part of the bilge.
- Install the Control Panel: Use the drill to create mounting holes on the chosen surface. Secure the panel with the provided screws, ensuring it's level and firmly attached.
- Position the Float Switch: Drill holes for the float switch bracket in the bilge. Mount the switch horizontally so it can float freely without obstruction.
- Wire the System: Cut appropriate lengths of marine-grade wire. Strip the ends and use the crimping tool to attach connectors. Connect the float switch to the control panel, ensuring polarity is correct.
- Connect to Power: Run wires from the panel to a 24V power source. Use a multimeter to verify voltage and ensure connections are secure.
- Test the System: Before sealing connections, test the system by manually lifting the float switch. The alarm should sound and the light should illuminate.
- Seal and Secure: Once tested, apply marine sealant to all connections and use heat shrink tubing. Secure wires with cable ties to prevent movement.
Common Installation Mistakes
Even seasoned boat owners can make mistakes during installation. A common error is not securing the float switch properly, which can lead to false alarms or failure to detect rising water. Ensure the switch is free from obstructions and securely mounted. Another frequent issue is inadequate sealing of connections, leading to corrosion and system failure. Always use marine-grade sealant and heat shrink tubing to protect electrical connections.
Improper wiring can also cause problems. Double-check the wiring diagram provided with your alarm panel to avoid incorrect connections, which can lead to system malfunction or short circuits. Ensure all connections are tight and secure, as loose wires can cause intermittent operation or failure.
Seaflo 24V Bilge Water Alarm Panel Specifications
| Specification | Details |
|---|---|
| Voltage | 24V DC |
| Max Current | 10A |
| Alarm Type | Audible and Visual |
| Float Switch | Included |
| Material | Marine-grade |
Key Takeaways
- Plan the installation carefully to ensure optimal placement of components.
- Use marine-grade materials to prevent corrosion and ensure longevity.
- Test the system before sealing connections to confirm functionality.
- Secure all wiring to prevent movement and potential disconnections.
- Regularly inspect the system to ensure it remains operational and free of corrosion.
- Consult the wiring diagram to avoid incorrect connections and potential damage.
- Maintain the float switch to prevent obstructions and ensure accurate operation.
Frequently Asked Questions
How often should I test the bilge alarm system?
It's advisable to test your bilge alarm system monthly. Regular testing ensures the system is operational and helps identify any issues before they become serious. Simply lift the float switch to activate the alarm and check for both audible and visual signals.
Can I install the alarm panel myself, or should I hire a professional?
While the installation can be done as a DIY project, it requires a basic understanding of marine electrical systems. If you're not confident, hiring a professional ensures the system is installed correctly and safely, avoiding potential issues from incorrect wiring.
What should I do if the alarm sounds while I'm on the water?
If the alarm activates, immediately check the bilge for water levels. Investigate potential leaks or sources of water ingress. If water levels are rising quickly, use bilge pumps to manage the water and head to a safe harbour for a more thorough inspection and repairs.
Is the Seaflo Bilge Alarm Panel suitable for all boat types?
The Seaflo Bilge Alarm Panel is designed for a wide range of boat types, including RIBs, sailing yachts, and motorboats. Ensure your boat's electrical system is compatible with the 24V requirement before installation.
How do I maintain the bilge alarm system?
Regular maintenance involves checking the float switch for obstructions, ensuring all wiring is intact and corrosion-free, and testing the system monthly. Inspect and replace any worn or damaged components to maintain reliability.
