mms-1742

  • Dispatched in 2-3 days
  • 30 Day Return Policy
  • Low stock - 3 items left
  • Backordered, shipping soon
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
£109.48
/
Tax included.

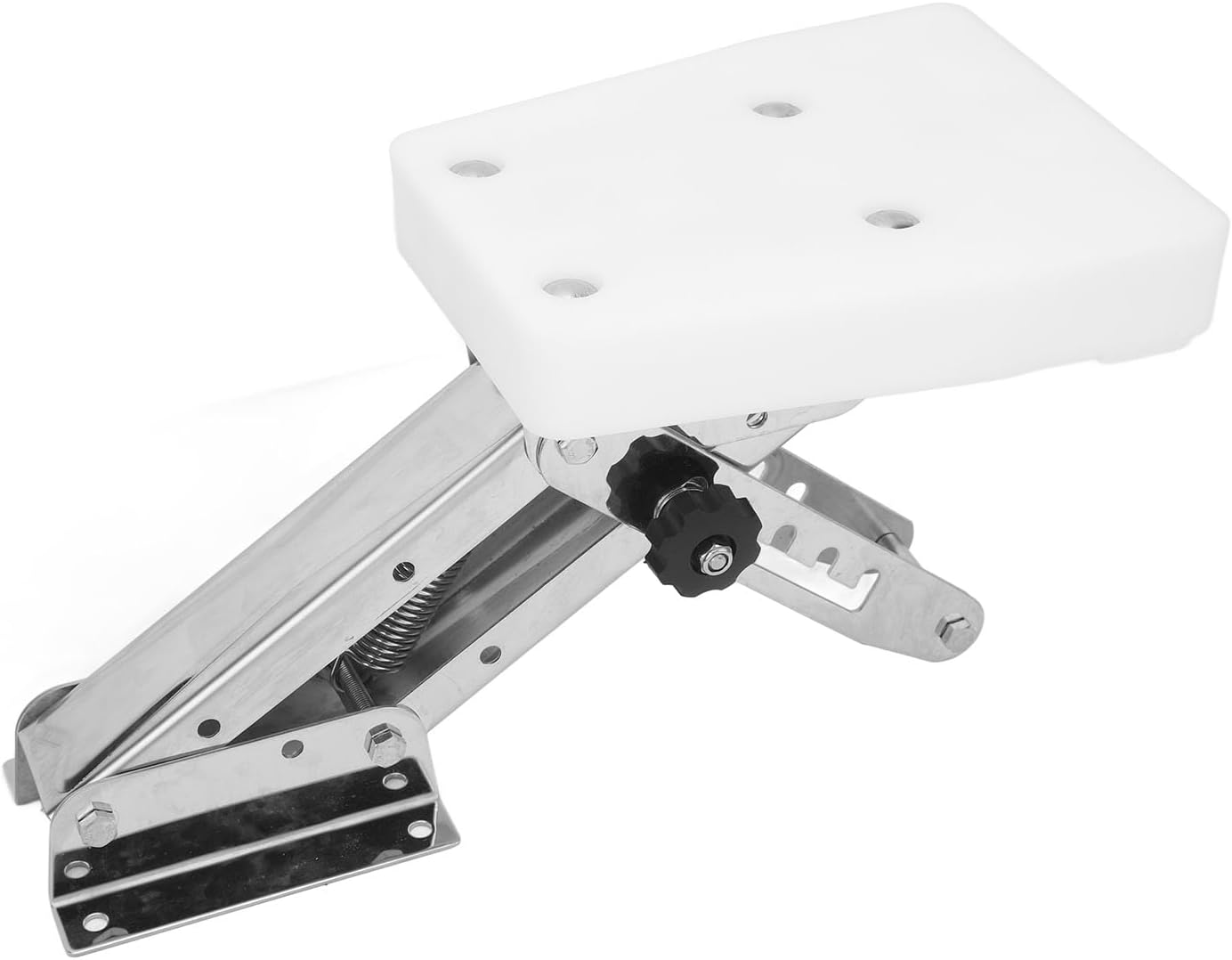

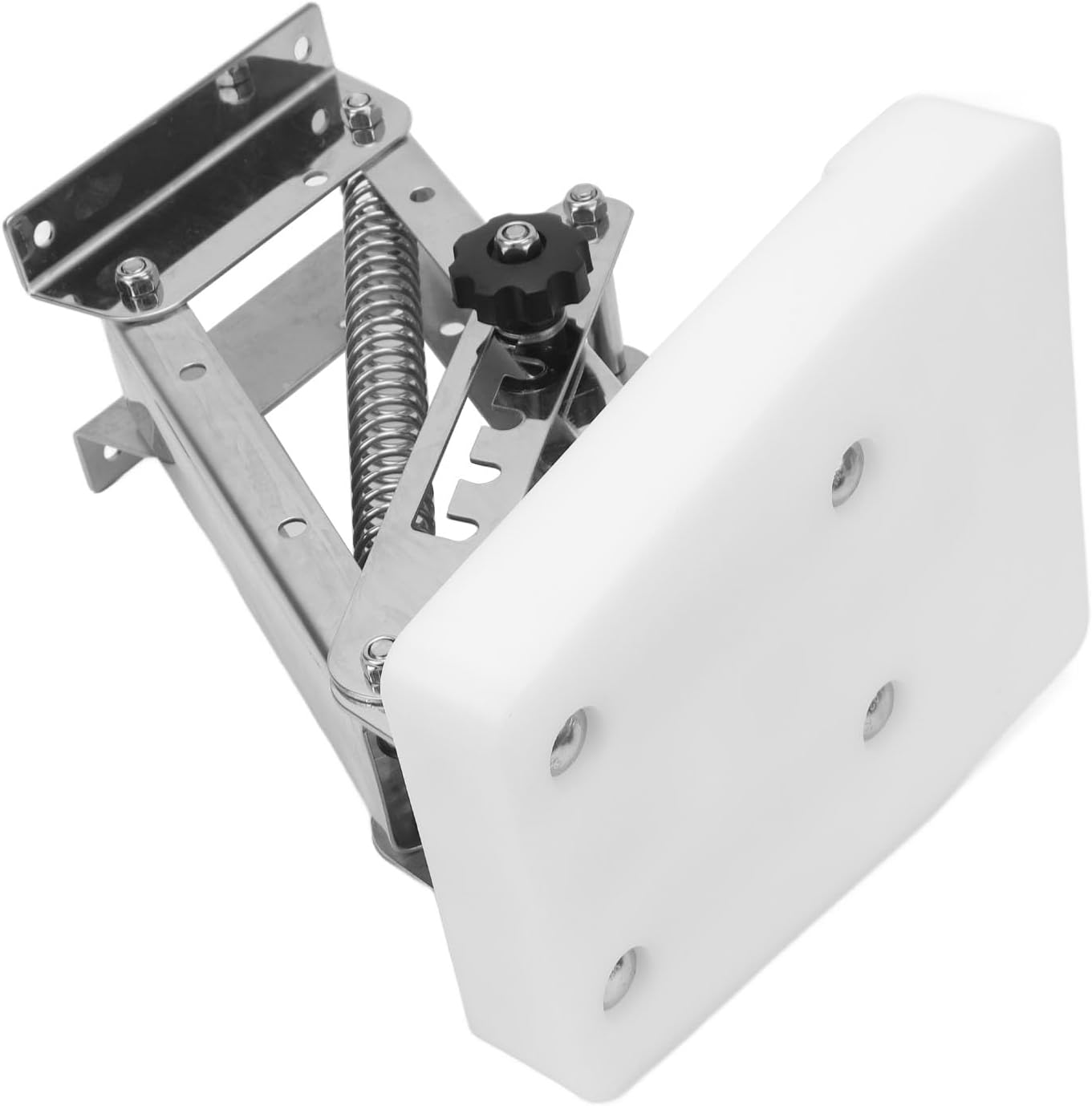

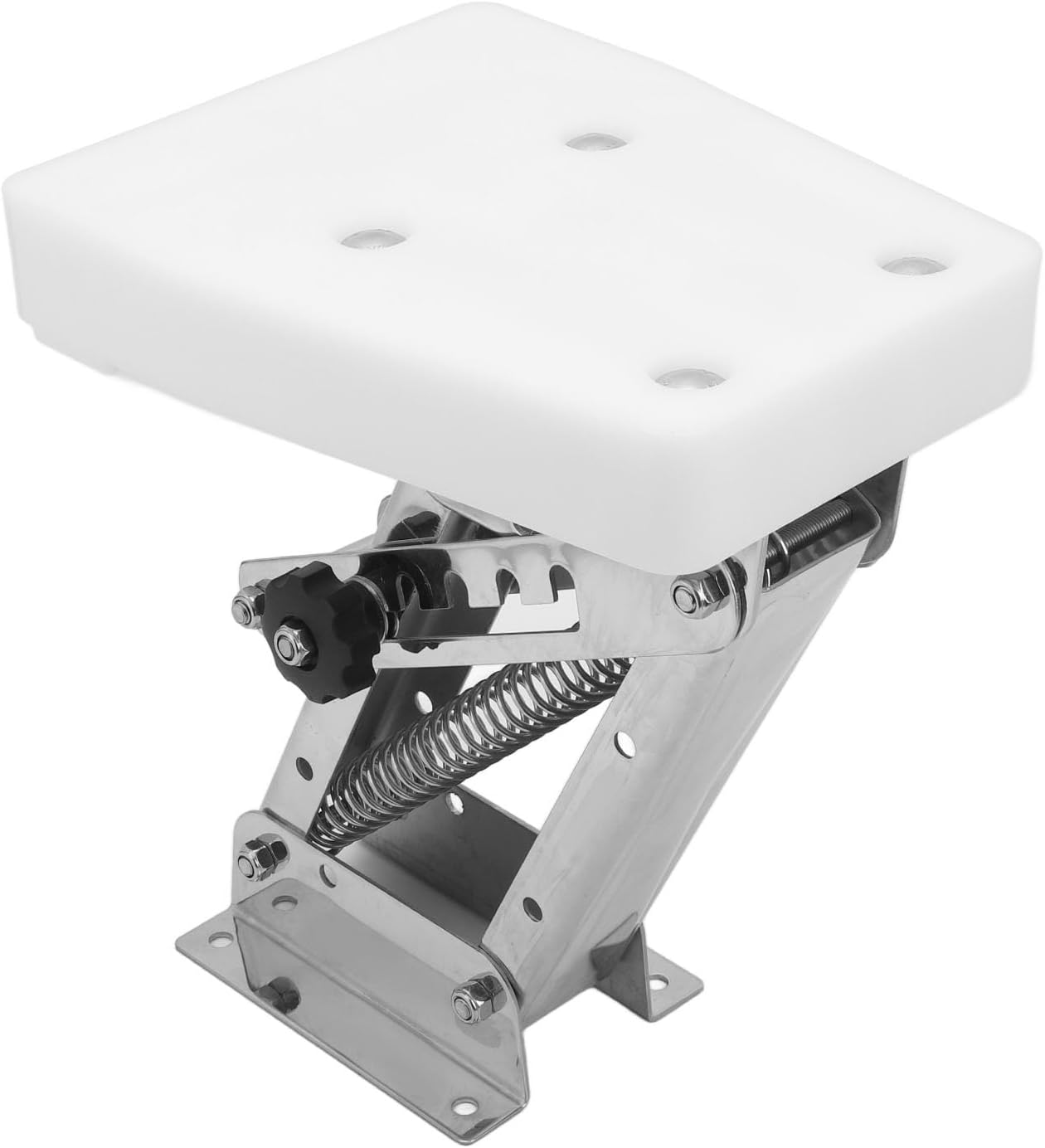

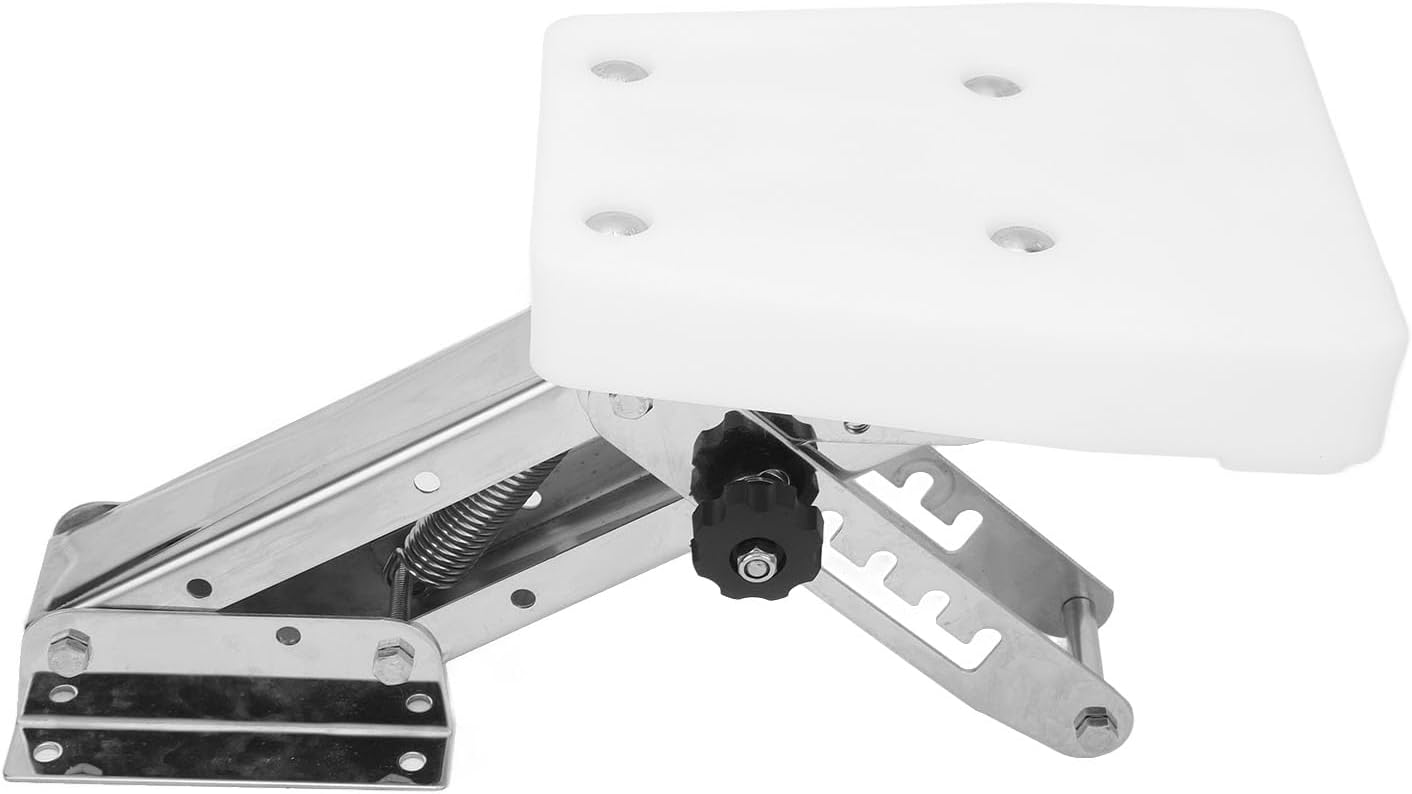

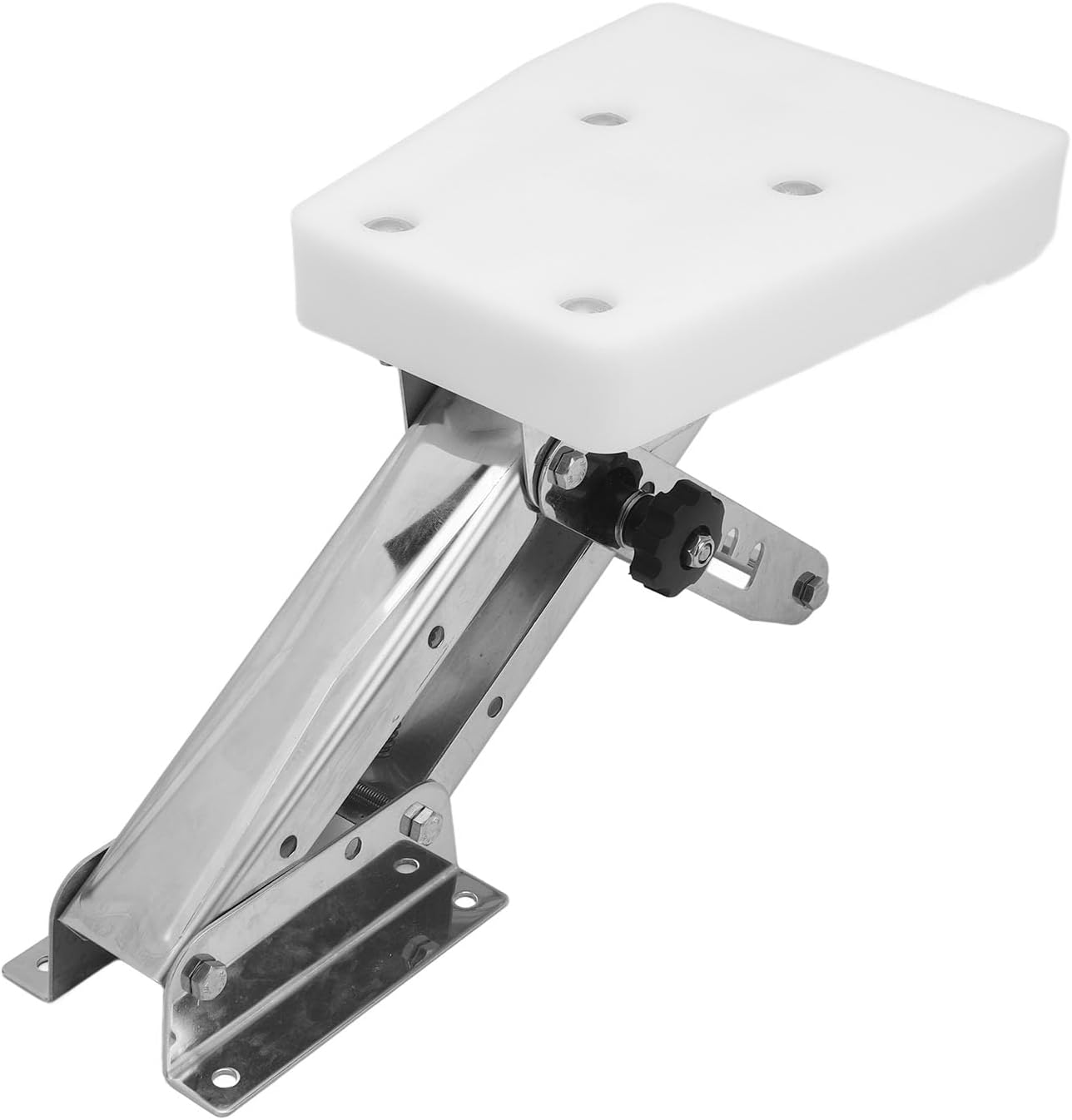

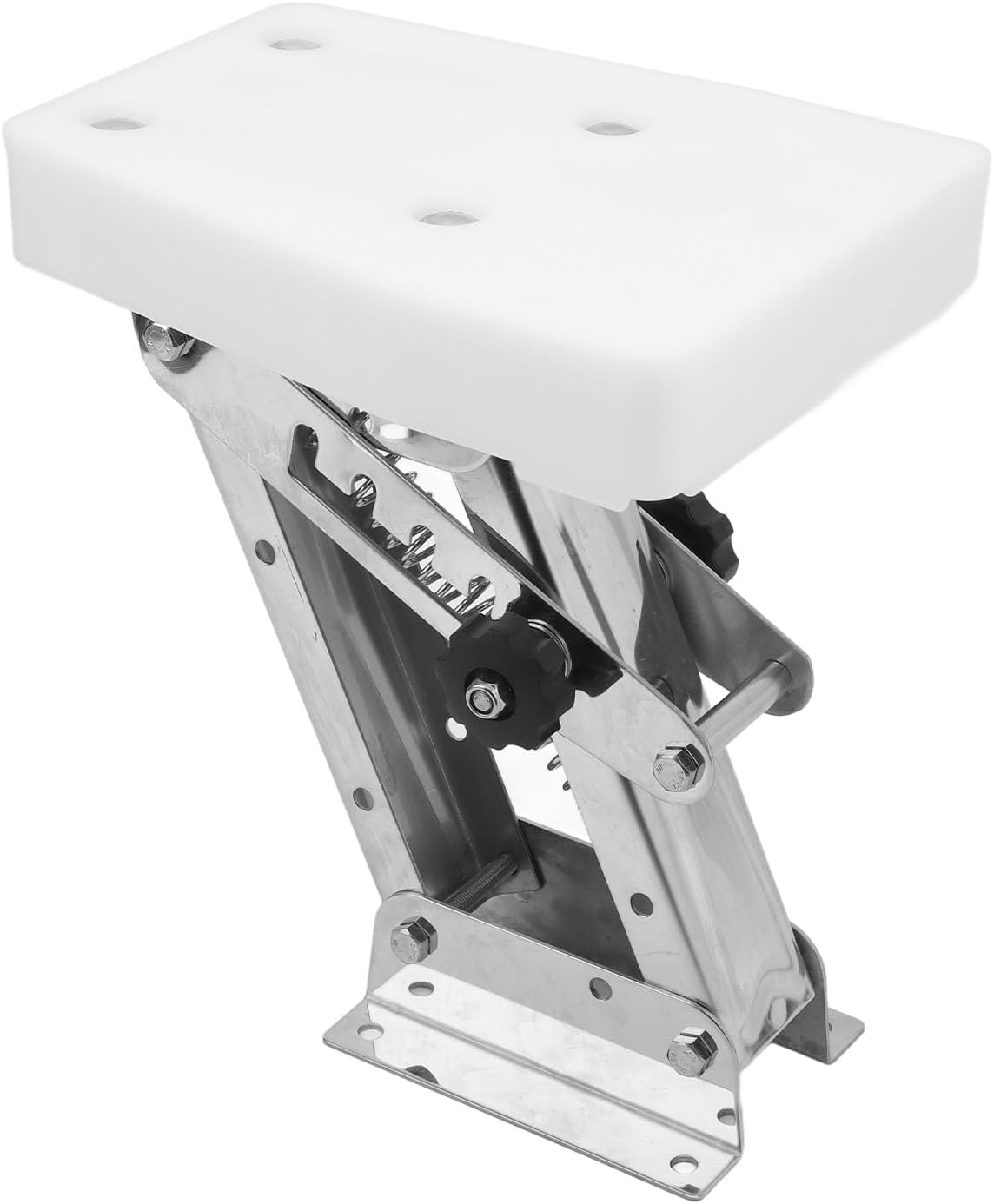

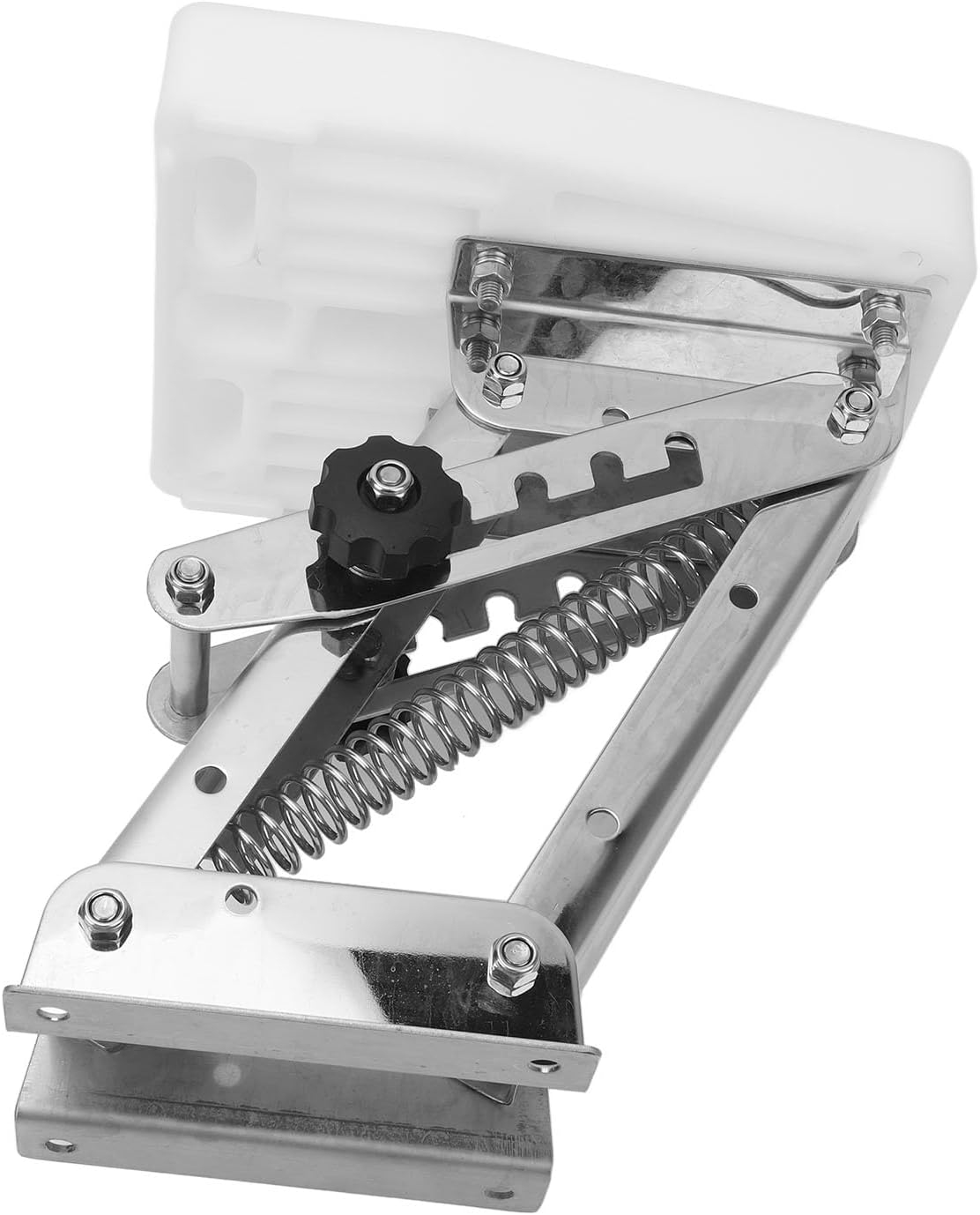

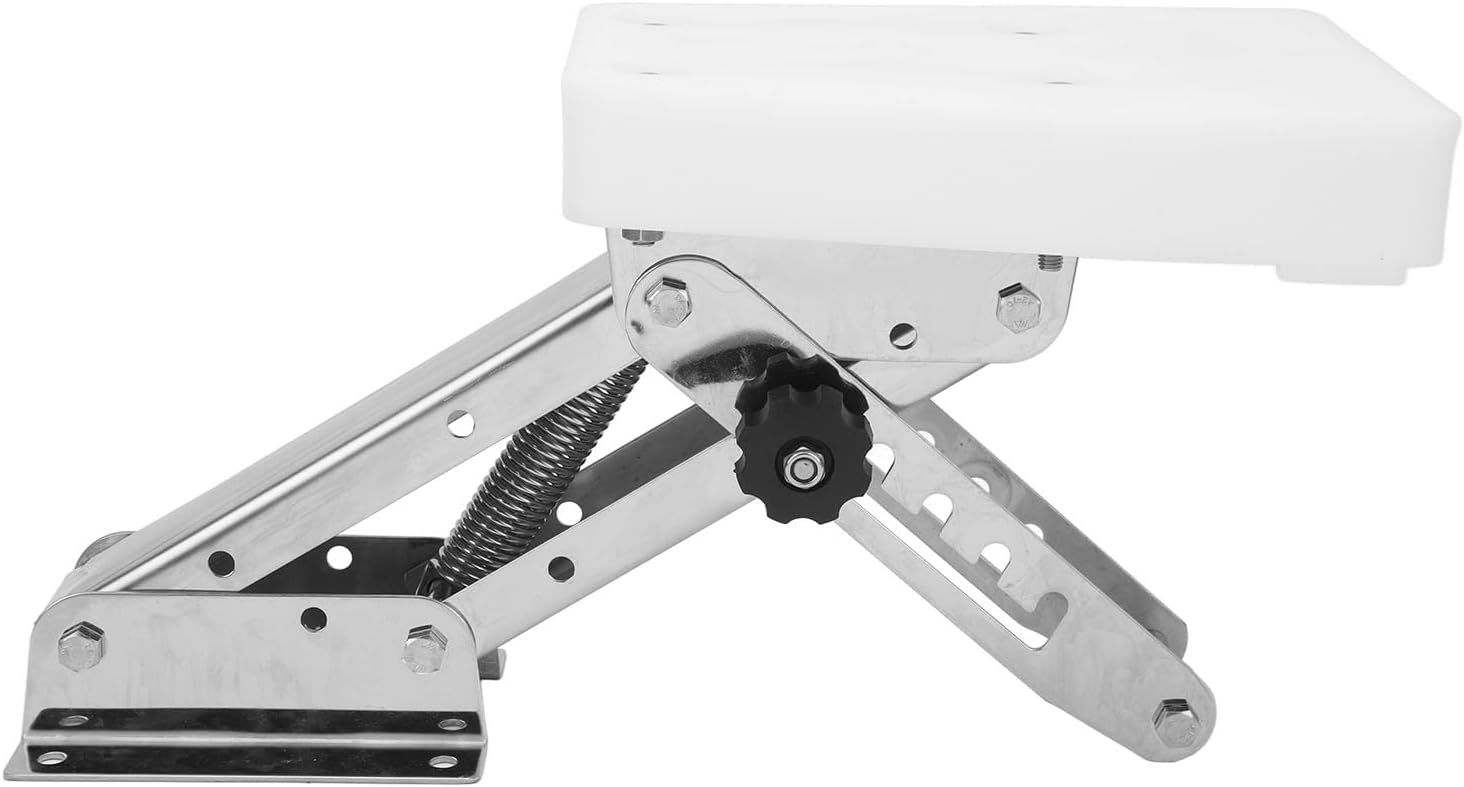

Outboard Engine Bracket (15HP/5HP)

Premium Adjustable 304 Stainless Steel Mount

This heavy-duty adjustable outboard bracket is specifically designed for auxiliary or kicker motors on powerboats and sailboats. Engineered to manage the weight and torque of modern engines, it provides a stable and versatile mounting solution that allows for easy raising and lowering of your motor when not in use.

RELIABILITY: Built from polished marine-grade AISI 304 Stainless Steel to withstand harsh saltwater environments without rusting or degrading.

Key Features

  • ✔ Spring-assisted lifting mechanism
  • ✔ 5-position vertical height adjustment
  • ✔ Toughened non-slip polypropylene pad
  • ✔ Corrosion-resistant 304 Stainless Steel

Technical Specs

Max Power (2-Stroke) 15 HP
Max Power (4-Stroke) 5 HP
Max Weight Capacity 30kg (110lbs)
Vertical Lift Range Approx. 340mm
Material AISI 304 Stainless Steel

Compatibility / Fitment Guide

Engine Type Max Rating Notes
2-Stroke Outboard Up to 15 HP Standard lightweight auxiliary motors.
4-Stroke Outboard Up to 5 HP Check engine weight (Max 30kg).
Electric Motors All standard Ideal for trolling motor auxiliary setups.

OEM Cross Reference

Industry Standard 71057
Easterner C14594
Osculati 47.376.01

Questions & Answers

Is this a genuine original part?

This is a premium quality aftermarket replacement part from 4Boats, manufactured to meet or exceed original equipment (OE) standards for durability and performance.

How do I know if it is compatible?

Ensure your engine's dry weight is under 50kg (110lbs). This bracket is typically used for 15hp 2-stroke or 5hp 4-stroke units due to the higher torque and weight of 4-stroke engines.

What is the lifting range of this bracket?

The bracket offers approximately 340mm (13.4 inches) of vertical travel, allowing you to fine-tune your motor's height across 5 distinct locking positions.

Note: Mounting hardware (transom bolts) is not included as requirements vary by boat transom thickness. Please verify your motor weight before purchasing. 4boats.co.uk
