Zipwake Series S Dynamic Trim Control Kit - 300S Chine Interceptor
301-2011732
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
- Backordered, shipping soon
- Zipwake is a fully automatic and active trim control system
- Dynamically eliminates uncomfortable and dangerous boat pitch and roll
- Automatically minimizes wave resistance and saves fuel
- For boats up to 50 foot
- 5-10 times faster than conventional trim tabs
- Built-in GPS 3D-Gyro and 3D- Accelerometer
Technical Specifications
| Control Panel | |
|---|---|
| Display | 2.4" Colour TFT, 320 x 240 Pixels |
| Internal Sensors | 5Hz GPS 3D Gyro 3D Accelrometer Ambient Light |
| Supply Voltage | 12 - 32 VDC |
| Power Consumption | 10W Max |
| Operating Temperature | -20°C - 85°C (-4°F - 185°F) |
| Storage Temperature | -40°C - 90°C (-40°F - 194°F) |
| Waterproof Rating | Front: IPX67 Rear: IPX64 |
| Compass Safe Distance | 0.5m (1.7') |
| Compliance | CE, FCC |
| Weight | 0.22Kg (0.49lbs) |
| Mounting | Flush, Surface or Gimbal (with optional gimbal Bracket) |
| 300S Interceptors | |
|---|---|
| Length | 300mm (12") |
| Weight | 2.2Kg (4.9lbs) |
| Max Boat Speed | 60 Knots |
| Blade Stroke | 30mm (1.2") |
| Blade Rate | 20mm/s (0.8"/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Cable Length | 3m (10') Expandable upto 6m (20') |
| Connector | M12 5-Pin Circular |
| Supply Voltage | 12 - 32 VDC |
| Power Consumption | 25W Max |
| Waterproof Rating | IP68 5m (16') |
| Distribution Unit | |
|---|---|
| Supply Voltage | 12 - 32 VDC |
| Power Consumption | 0.1W Max |
| Fuse | 10A ATO |
| Power Cable Length | 4m (13') |
| Waterproof Rating | IP67 |
| Oil Resistance | Common engine fluids |
| Weight (including power cable) | 1Kg (2.2lbs) |
Instalation Guide
Automatic Trim And Stability Control
Enjoy a smoother ride better visibility improved fuel economy and enhanced safety. The Dynamic Trim Control System Series S brings together a family of durable fast-acting interceptors and intuitive 3D controls to put you in command of running trim heel and heading. The system is fully automatic. For boats up to 50 ft.

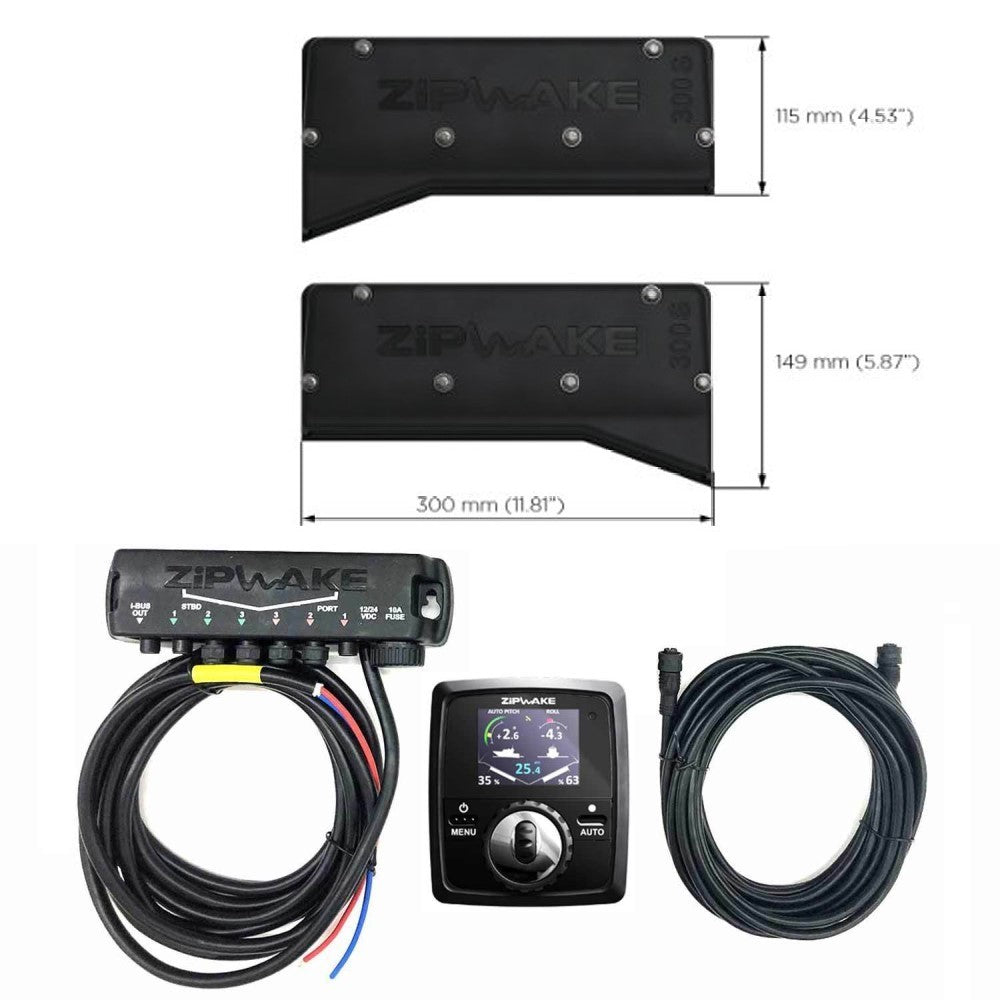

The Complete Package
Each Series S Kit Box comes complete with all the parts and software needed to install a Dynamic Trim Control System including one pair of fast-acting interceptors. Choose between a standard Kit Box and a Kit Box for integration which includes an integrator module for hard-wired system integration and wireless communication. Here’s quick overview of the Kit Box contents.

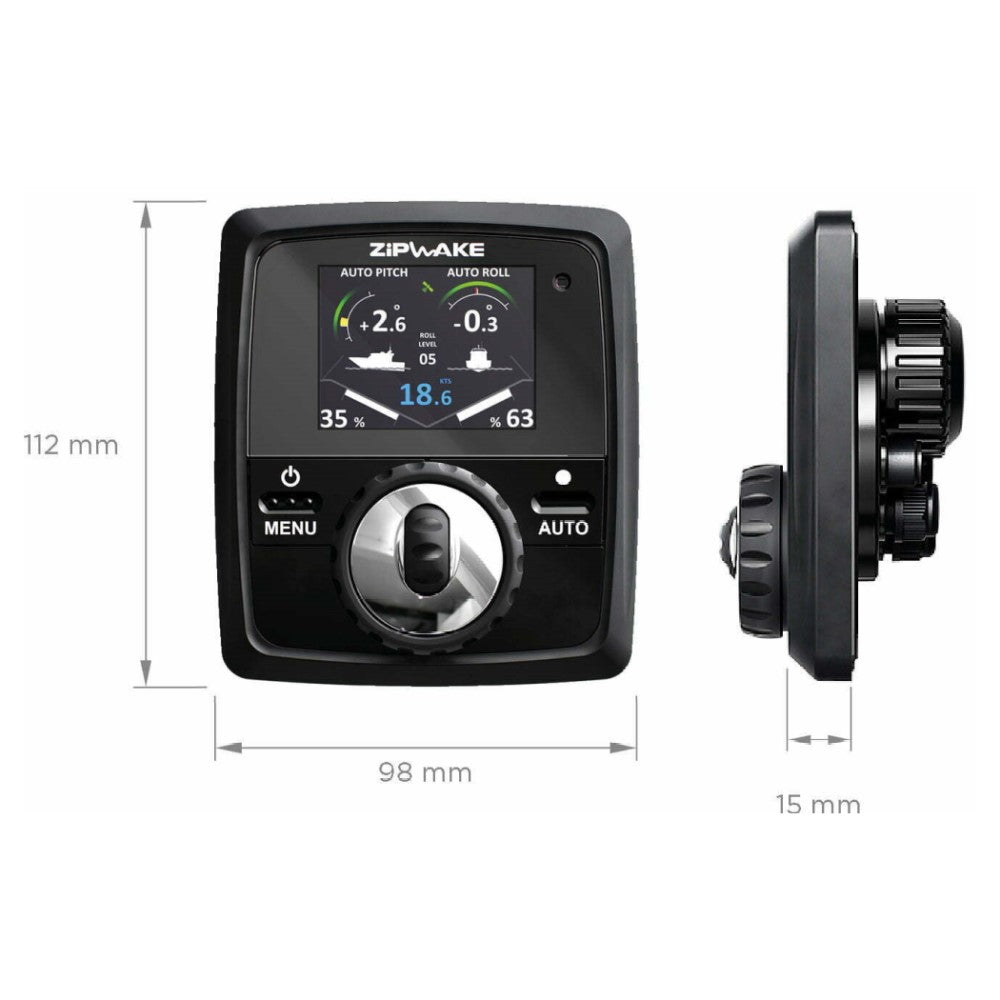

Control Panel - Zipwake’s stylish intuitive Series S control panel puts a smoother more comfortable ride at the tips of your fingers. Features a sunlight-readable and waterproof color display and an “auto” button for fully automatic trim and motion control.
State Of The Art Interceptors - The Series S product family includes 13 fast-acting interceptors (four straight four V-shaped four chine and one intermediate). Perfectly adapted to any planing or semi-planing boat between 6–15 m (20-50 ft).
Distribution Unit - The heart of the system. The distribution unit supplies the system with power and accommodates up to six Series S interceptors. It is robust waterproof oil resistant and ignition protected for mounting in an engine room.
How It Works
See how the Zipwake Dynamic Trim Control System automatically eliminates pitch and roll for a safer ride and improved fuel economy in the video below.
Push Auto And Leave The Rest To ZipWake - No stress no worry. Just press the “auto” button and Zipwake will automatically keep your boat level. What could be easier?
