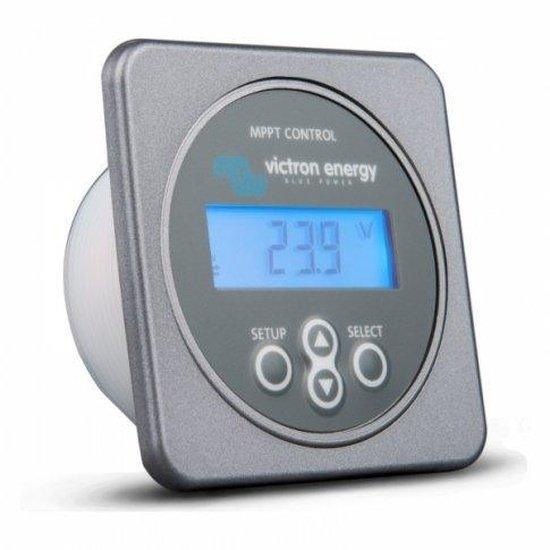

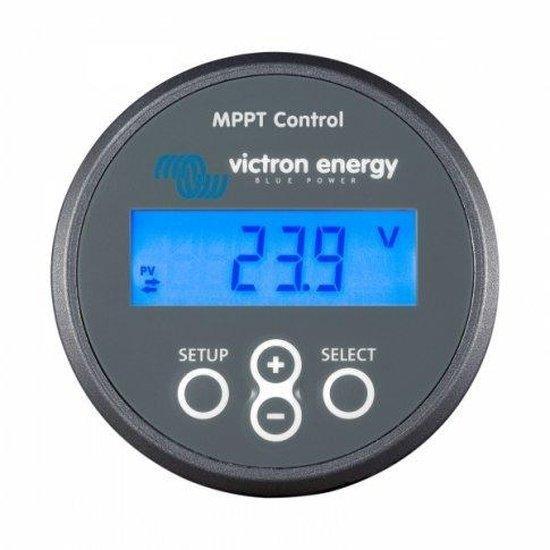

Victron VE.Direct MPPT Control panel with LCD Display for BlueSolar / Smartsolar MPPT solar charge controllers

Stay on top of all your Victron BlueSolar or SmartSolar MPPT solar charge controller settings with this VE.Direct MPPT Control panel. Access exclusive info with live status data, daily/monthly logs and the option to personalize the system. Check and program charging parameters remotely with ease!

Compatible Victron products:

This MPPT control panel is designed for use with Victron MPPT charge controllers with a VE.Direct port. For example, either:

• A controller from the BlueSolar range (such as VBSM75-15, VBSM100-30, VBSM100-50, VBSM150-35, VBSM150-45, VBSM150-60 or VBSM150-70)
• Certain models from the SmartSolar range (such as VSSM75-15, VSSM100-20, VSSM100-30, VSSM150-35, VSSM150-45, VSSM150-60, VSSM150-85 or VSSM150-100)

Please note this control panel is not compatible with the discontinued BlueSolar MPPT 70/15, or with any Victron MPPT controller with a VE.Can port.

Advanced programming and monitoring:

Connecting this MPPT control panel to your Victron solar charge controller unlocks numerous possibilities for advanced programming and remote monitoring of your MPPT solar system. The wide range of additional features made available include:

- Live data transmission: Real-time information is displayed including solar panel output, battery voltage and current, load status and current, and charging stage information.

-30-day data logs: System activity is available to view, either as daily values or as cumulative values for the past 30 days. Daily data displayed includes: energy yield, maximum recorded power and voltage, time spent in each charging stage, maximum battery current, minimum and maximum recorded battery voltages and daily error records. 30 day data includes: total cumulative energy yield, maximum recorded solar panel voltage, minimum and maximum recorded battery voltage, and recent errors.

- User-defined battery charging algorithm: Option to disable preset values in favour of personalised charging parameters, including user-defined absorption voltage, absorption time, float voltage, equalisation voltage and temperature compensation settings.

- Load configuration: For BlueSolar or SmartSolar MPPT controllers with load terminals (such as VBSM75-15 or VSSM100-20) there is the option to choose from one of the pre-set load management programs or to create a user-defined load program.

Additional considerations:

As default, Victron MPPT control panels are not supplied with the VE.Direct connection cable required for connection to the controller. The VE.Direct cable is available in 1.8m, 3m or 5m lengths, and must be purchased separately.

This control panel is designed to be flush mounted (a recess of approximately 54mm in diameter must be cut into the mounting wall / surface in order to accommodate the display). If surface mounting is preferred, an optional Victron wall mounting enclosure is available , which we are able to source upon request - please contact us for further details.

Click on the Details and Specifications tab for more information about this product.

Specifications:

• Supply voltage range: 5V

• Current draw (without backlight): < 4mA
• Operating temperature range: -20?øC to +50?øC
• Diameter of front round face: 63 mm
• Dimensions of entire unit: 69 x 69 x 31 mm
• Hole required for flush mounting: approx. 54mm diameter (31mm depth)
• Weight: 61g

This product is covered by a 5 year warranty.

This product comes with a detailed user manual which explains wiring and operations (see Documents tab).

Please note: the VE.Direct connection cable for use between the MPPT control panel and BlueSolar / SmartSolar controller is not included with Victron MPPT control panels. The VE.Direct cable is available in 1.8m, 3m or 5m lengths and must be purchased separately.

If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone

The following documents are available to download:

User manual for Victron VE.Direct MPPT control panel VE-CONTROL
