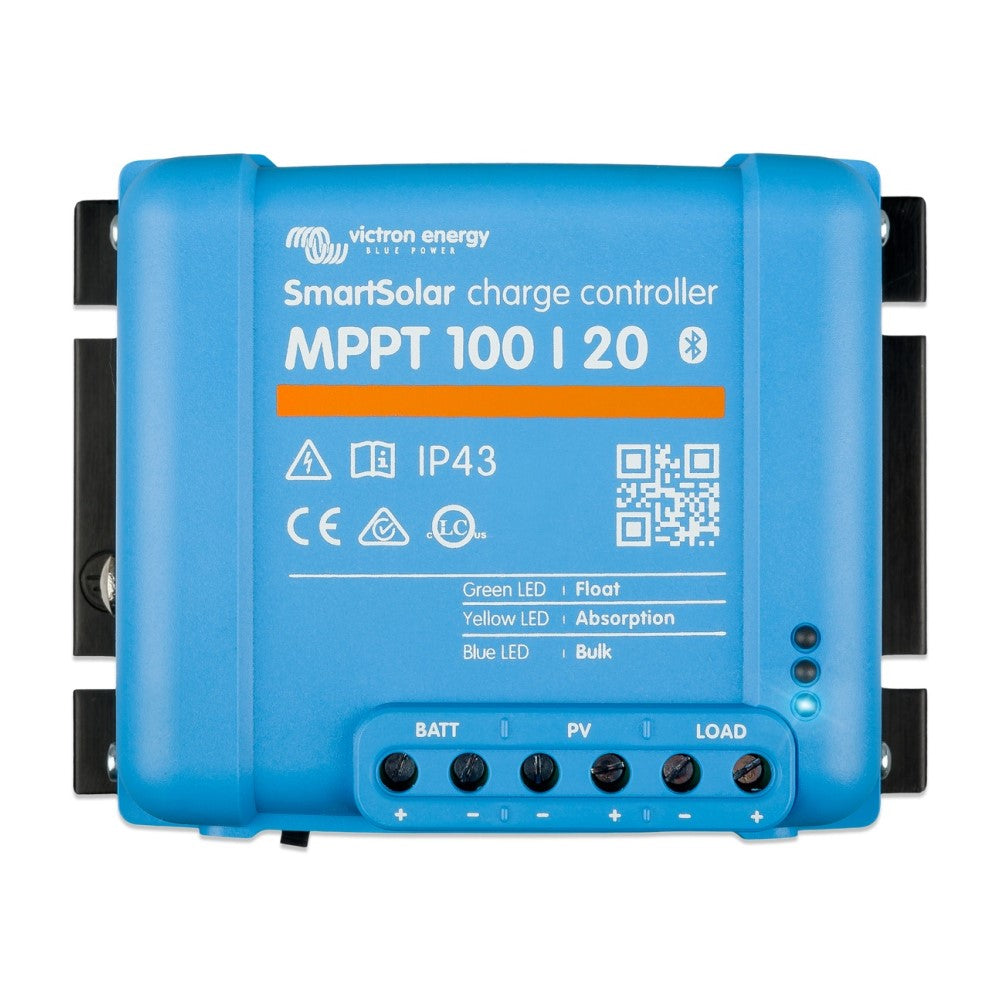

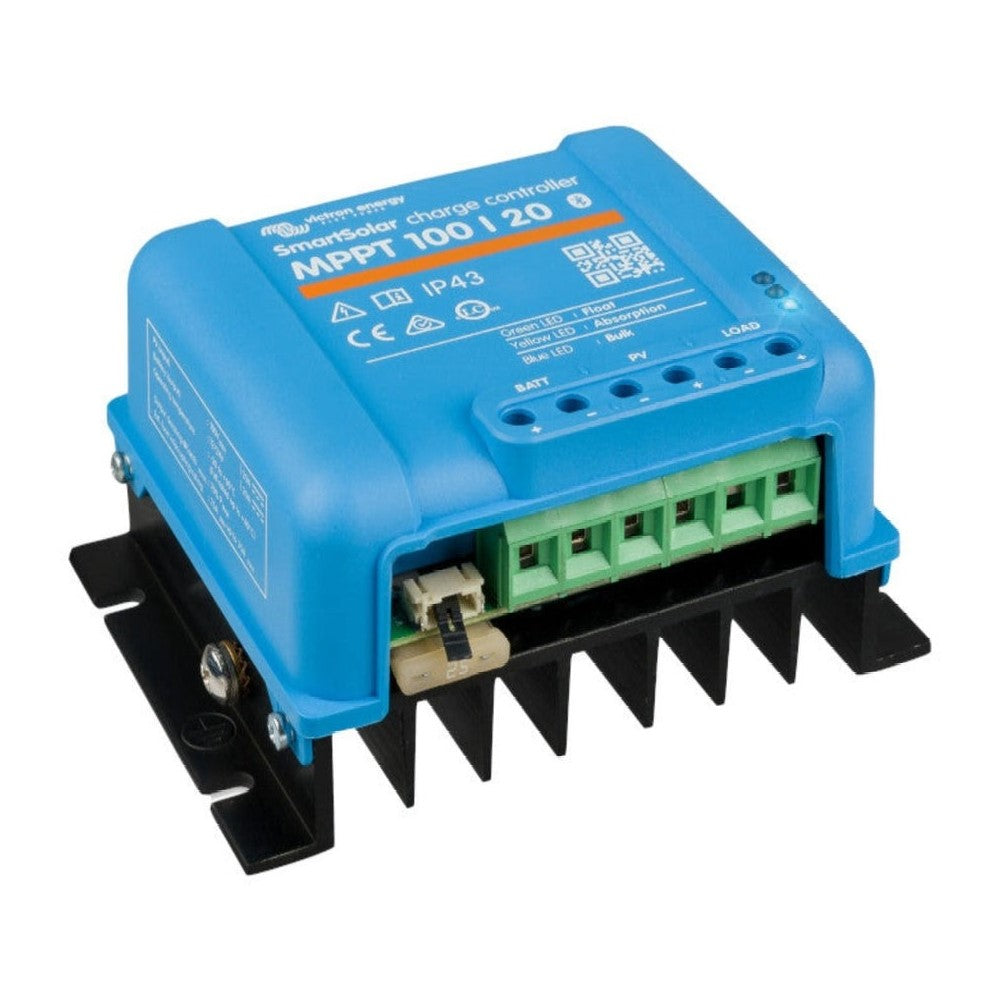

Victron SmartSolar MPPT 100/20 - Up to 48V

• Voltage: 12 / 24 / 48V
• Rated Charge Current: 20A
• Nominal PV Power 12V: 290W
• Max. PV Short Circuit Current: 20A
• Max. PV Open Circuit Voltage: 100V
• Protection Category: IP43 (electronic components) IP22 (connection area)
• Efficiency: 98%
• Bluetooth Enabled: Yes
• Dimensions: 100 x 113 x 60mm
• Weight: 0.65Kg
• Warranty: 5 Years

A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest fastest technology SmartSolar maximises this energy-harvest driving it intelligently to achieve full charge in the shortest possible time. The SmartSolar MPPT 100/20 maintains battery health extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. The charge controller can operate with a battery voltage as low as 0 Volts providing the cells are not permanently sulphated or otherwise damaged.

Features of the SmartSolar MPPT 100/20

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT anytime anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

Load Output

The intelligent Load output function prevents damage caused by running batteries "˜flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage daily until it achieves success. We call this feature BatteryLife because it maintains the health and extends the life of your battery.
