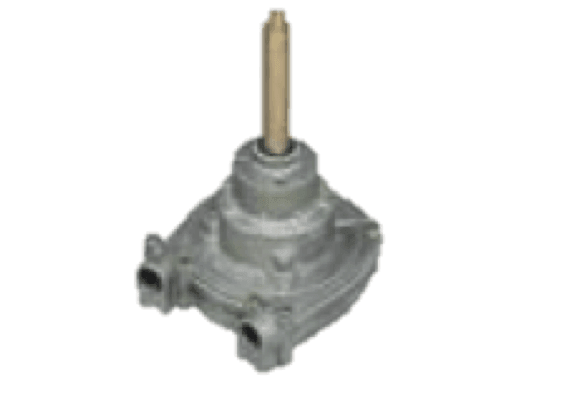

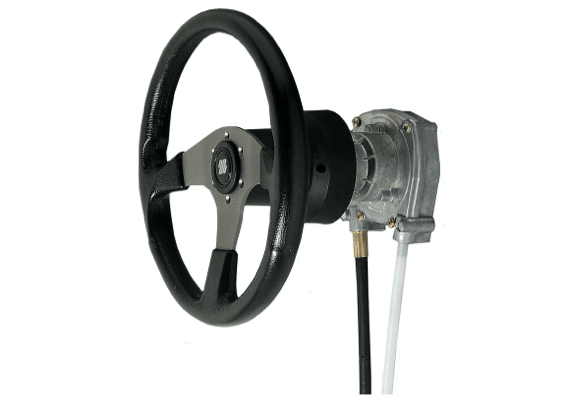

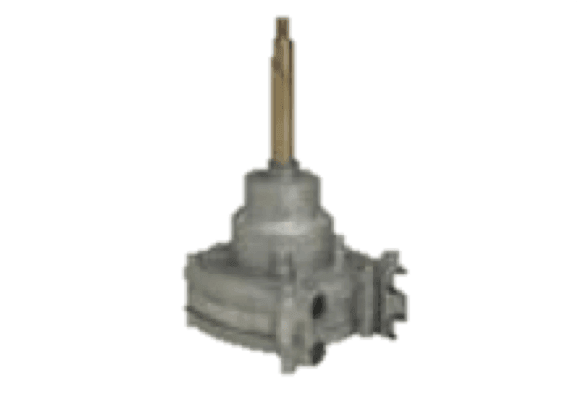

Name: Ultraflex T73NRFC & T74NRFC Non-Reversible Steering Helms
Price: 198.26 GBP
Rating: 5 (1 reviews)

Ultraflex T73NRFC & T74NRFC Non-Reversible Steering Helms - 4Boats

Dispatched in 2-3 days

30 Day Return Policy

Low stock - 1 item left
Backordered, shipping soon

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

Model

T73NRFC Helm Steering Single Cable

£198.26

Tax included.

Ultraflex T73NRFC & T74FC with Planetary Gear Design leading to minimal feedback, Patented non reversible mechanism and compact size for ease of fitting. Twin version for boats that achieve over 50 mph.

Features & Technical Specifications

Particularly suitable where clearance is limited
All stainless steel cable output ends as per ABYC safety standards
Made exclusively in corrosion resistant materials
Lock - to - lock steering wheel turns: approx 3.8
Stroke: 228mm (9")
Minimum steering cable bend radius: 200mm (7.9")
Maximum operating load at the tiller end: 3300N (340kg; 750lbs)
Should not be used on boats equipped with engines that exceed themax. horsepower rating of the boat
For boats faster than 50mph the twin cable steering system is recommended
Exceeds ABYC & EN 28848 safety standards
Featuring Planetary Gear Design • Optional 90° or 20° installation
Minimal feedback
Patented non reversible mechanism
The non-reversible steering helm eliminates the continuous load on the operator caused by the propeller torque making steering easy and safe.
Ideal for outboards and surfacing propellers
Compact for mounting
Maximum steering wheel diameter: 406mm (16")
Uses M66 Cable see website for sizes

Unsure what to order give us a call on 01621 786413 we are here to help

Models

?T73NRFC Single Cable Steering Helm
T74NRFC Double Cable Steering Helm ( Boats that exceed 50 mph ) Due Mid August 2022

For the products under £150 the shipping is £6.99.

Free delivery for the most items over £150.
