South Pacific 800H 12V 800W Horizontal Windlass, 8 mm Gypsy | 4Boats
62010
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 3 items left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price£527.00
/
Tax included.

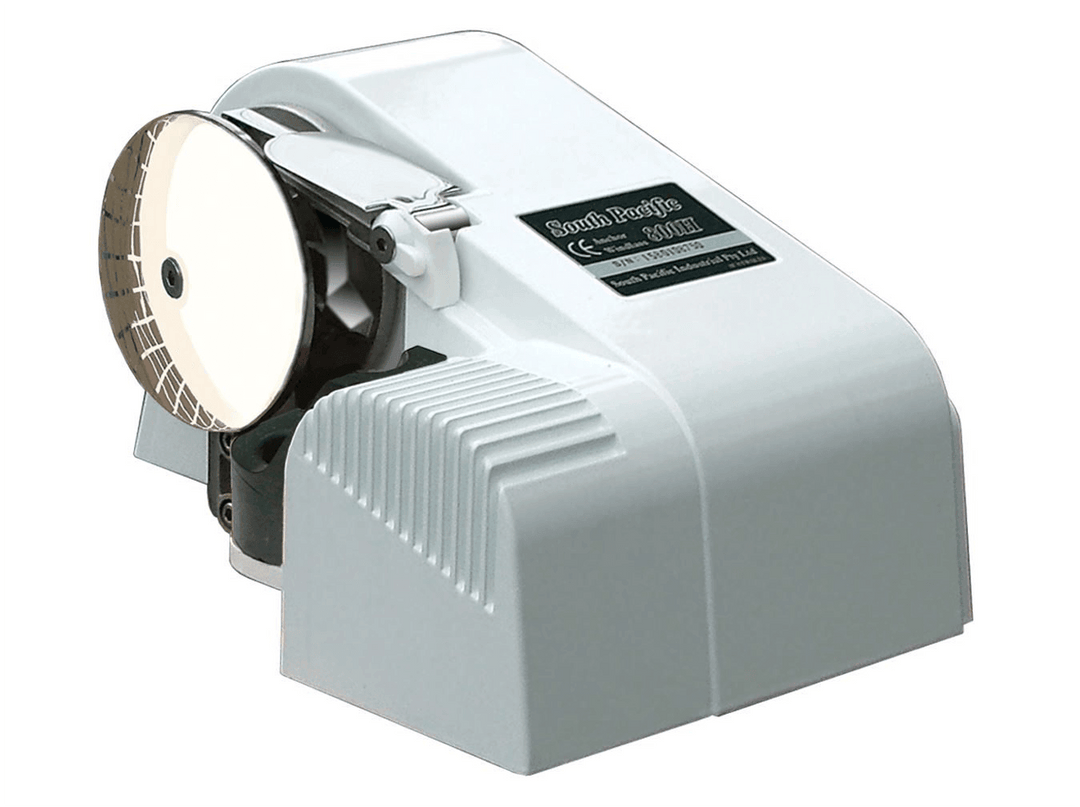

The South Pacific 800H is a compact horizontal 800 W windlass for boats 6–9 m (20–30 ft), capable of handling anchors up to 13.6 kg (30 lb). The 8 mm stainless‑steel gypsy accepts both rope and chain while efficient spur gears reduce power consumption and heat.
- Efficient spur gears, low current draw, high output power
- Power: 800 W; Operating voltage: 12 V DC
- Max working load: 300 kg (661 lb); Typical working load: 60 kg (132 lb)
- Retrieval speed: 19 m/min (62.3 ft/min); Pay‑out speed: 22 m/min (72.2 ft/min); Typical current draw: 24 A
- Gear: spur gear; 8 mm stainless‑steel gypsy; suits 6 mm & 8 mm DIN 766 chain and 12–14 mm rope (0.47–0.55 in)
- Dimensions (L×W×H): 304 × 197 × 153 mm (12.0 × 7.8 × 6.0 in); Weight: 7.8 kg (17.2 lb)
- Fits deck thickness 3–60 mm (0.12–2.36 in); compact one‑piece unit that fits on deck
- Kit supplied: windlass 800H, Direct Control Switch SW‑200 (no solenoid required), Circuit Breaker CB‑001‑30, fixing bolts, manual & template
Easy to install with all fittings included, a heat‑radiating motor design and a torque limiter for smoother operation and improved reliability.
