Polyform US CM Series Buoy Red

The CM Series Mooring Buoy has been designed to provide the ultimate in strength, durability and boat protection, giving increased security to any mooring. We make two versions of mooring iron, one from galvanized steel with a protective vinyl-coated eye, and the other from durable stainless steel. To provide strength and security, each version features a 1/2-inch centeral rod, a large eye (4-3/8 inch diameter), and a swivel (1-1/2 inch wide). The CM-Series is a long tested standard in mooring buoy design and is prefered by many boaters worldwide.

Key Features

• Mooring Iron made with vinyl-protected galvanized
• Large reinforced 4-3/8" eye and 1-1/2" swivel
• Soft vinyl surface protects boat finishes
• Polyform's unique vinyl valve seals securely
• Even wall thickness for maximum strength and durability
• Limited three year warranty

Sizing

To figure out what size buoy you will need, determine the weight of the chain it must support. All chain has a stated weight per foot. Add another 25% to the total weight for safety. Always use chafing gear where mooring lines run through bow chocks or are likely to contact deck hardware. A thimble on the shackled end will prevent chafe at the buoy.

Safety

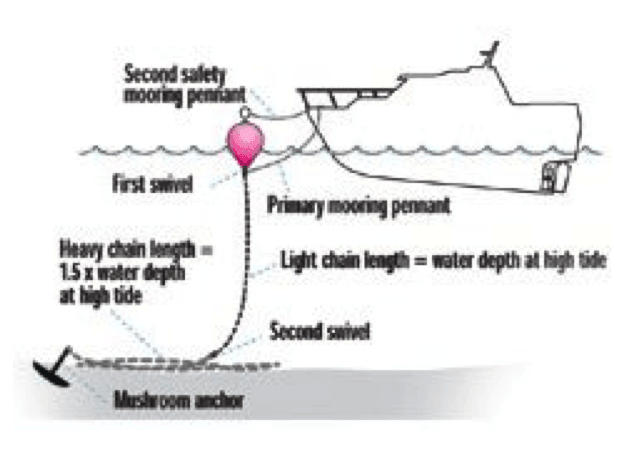

In a hard blow, the holding power of the mooring can be increased by lengthening the mooring pennant. This increases the scope of the mooring providing greater holding power – just be sure to check other boats in the moorage first to ensure you won’t foul another moored boat. In adverse conditions, a second mooring pennant can be run to the top eye as a safety in case the primary pennant chafes through or fails. All shackles should be moused to prevent opening. Electricians plastic tie wraps are an excellent means of securing a shackle.

Models & Dimensions

• ?CM-2 : Height : 31" ( 79cm ), Diameter : 14" ( 36cm ), Buoyancy : 55lb ( 25kg )
• CM-3 : Height : 35" ( 89cm ), Diameter : 18" ( 47cm ), Buoyancy : 121lb ( 55kg )
