m-Series Mini Dual Circuit Battery Switch - Red | 4Boats
BSS6010
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price£88.00
/
Tax included.

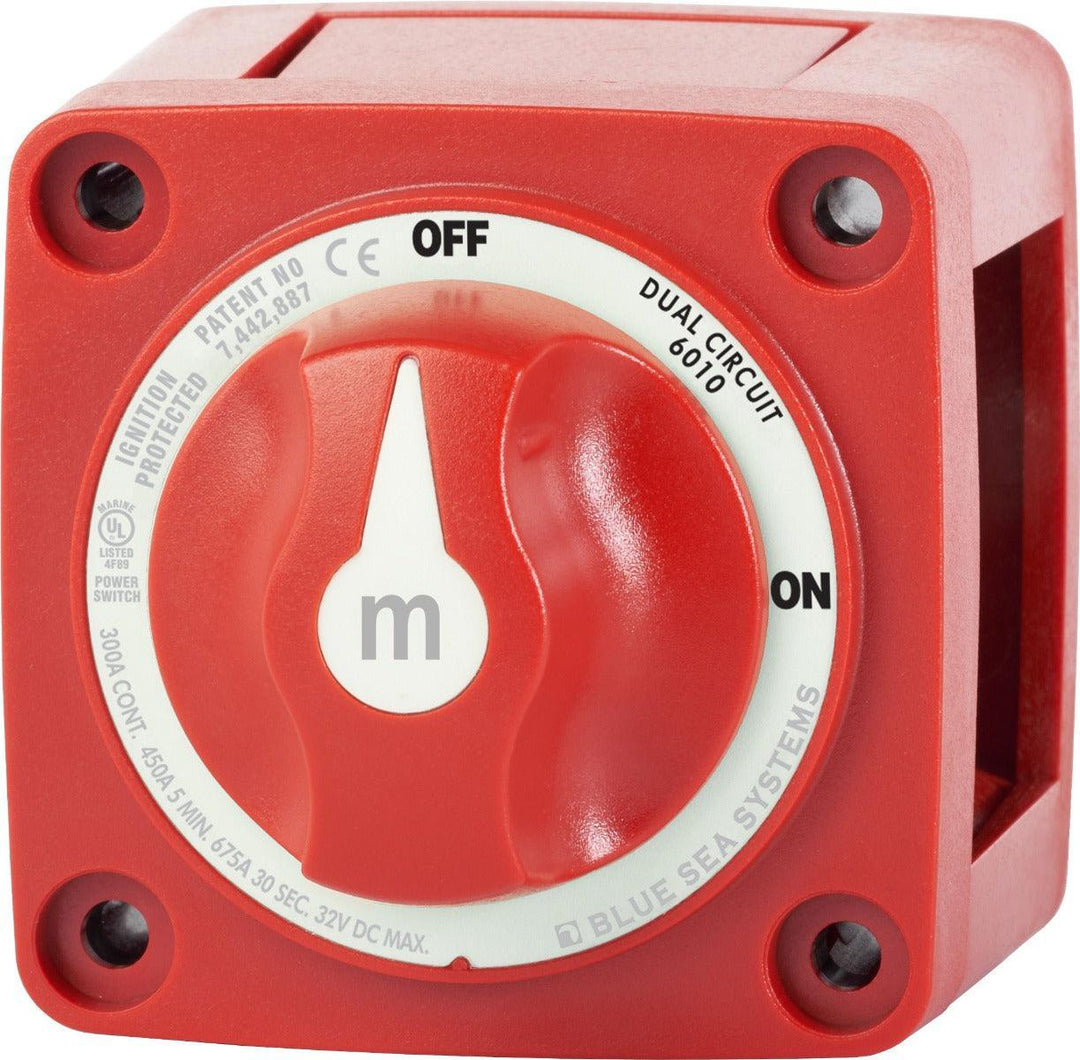

Compact red m-Series mini dual‑circuit battery switch designed to control two isolated battery banks with high current ratings for small boats and marine applications.
- Dual circuit — simultaneously switches two isolated battery banks or circuits
- Colour: Red
- Switch positions: 2
- Maximum voltage: 32 V DC
- Ratings: 300 A continuous; 450 A intermittent (5 min); 675 A cranking per circuit (30 s)
- Terminal stud: 3/8" - 16 (M10); stud material: tinned copper; stud torque: 120 in‑lb (13.56 Nm)
- Cable capacity: 4/0 AWG (120 mm²); cable clearance: 28.45 mm (1.12 in)
- Battery combine: No; alternator field disconnect: No (LED may be fitted to AFD terminals for indication)
- Mounting accepts #10 screw; weight: 0.36 kg (0.80 lb)
Use correct cable sizing and terminal torque to meet ratings; suitable for compact marine battery installations.
