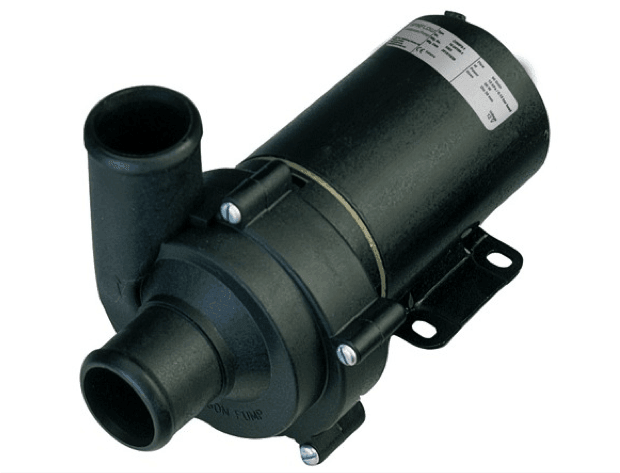

Johnson C090P5-1 Heavy Duty Centrifugal Circulation Pump - Special Order
10-24190-1
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price
£306.42
Sale price£300.98
Save £5.44
/
Tax included.
Mechanical sealed pumps with a motor designed for continuous operation. Suitable for fresh water and ethylene glycol circulation.
2500hr service life rated.
Key Features
- Extra heavy duty construction
- Motors designed for continuous operation
- Mechanical seal
- Designed for fresh water and ethylene glycol circulation
Pressure & Capacity
- See attached image ( Based on water at 20C/68F )
Dimensions & Weight
- Length: 211mm
- Width: 117mm
- Height: 116mm
- Weight: 1.75kg
Technical Specifications
- Pump Body: PA66 thermoplastic
- Impeller: PA66 thermoplastic
- Shaft: Stainless Steel
- Shaft seal: Mechanical seal
- Motor: 12/24V DC enclosed (as per IP31) permanent magnet, ball bearing mounted motor
- Liquid temp.: Min -30°C, Max+100°C
CE marked according to the following standards:
- EN55014: 1993/Radio disturbance
- 72/245/EEG, 95/54/EG Electromagnetic compatibility
Models
- C0905-1 Circulation Pump 12v 10A
Delivery Allow 5 weeks from order date
