EPEVER UPower Solar Hybrid Inverter 2000VA 24V (UP2000-M3322) | 4Boats

EPEVER UPower Series 2000VA / 24V hybrid inverter with integrated MPPT solar charger (780W / 30A). SPWM pure sine output and industrial‑grade design for marine, commercial and residential off‑grid systems.

• Industrial grade design with 2 Year Warranty: Uses multi‑core processor design and an advanced MPPT control algorithm in an IP30 enclosure
• Multiple priority modes: solar charging priority over utility to balance low running cost with reliability
• Inverter module configurable to run on 'Always Battery' source for continuously stable output

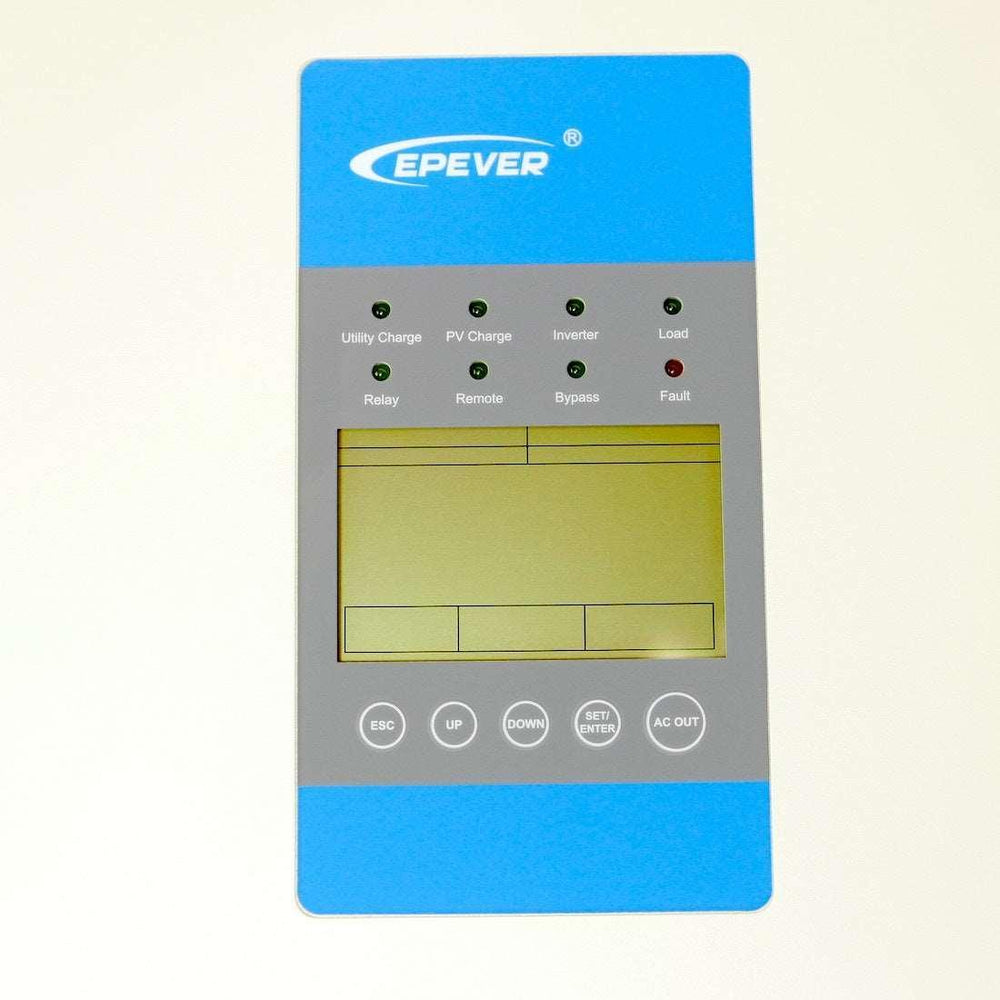

• Selectable 50Hz or 60Hz operation; large 4.2‑inch inbuilt display with real‑time data and PC monitoring software
• Models & electrical info: UPower Series includes UP1000‑M3212 and UP2000‑M3322; full electrical specifications in the manual (download manual)
• Environment: Operating temperature -20°C to +50°C; relative humidity ≤95% non‑condensing; enclosure IP30
• Physical: 386×300×126 mm; mounting dimension 230 mm; mounting hole Φ8 mm; weight 7.3 kg
• Protection: PV over‑current, PV short‑circuit, night reverse charging, battery & PV reverse, device overheating; IEC62109 — connector for the battery temperature sensor is required (sensor/connector not included)
• Certifications & box contents: CE & RoHS; box contains hybrid charger/inverter, DC circular & input terminals, battery input fuse

MPPT efficiency up to 99.5%, quick transfer speed, SPWM pure sine with low harmonic distortion (≤3%), built‑in AC 2P breakers, battery temperature compensation, instantaneous surge up to twice rated power and relay interface for auto generator start/stop.
