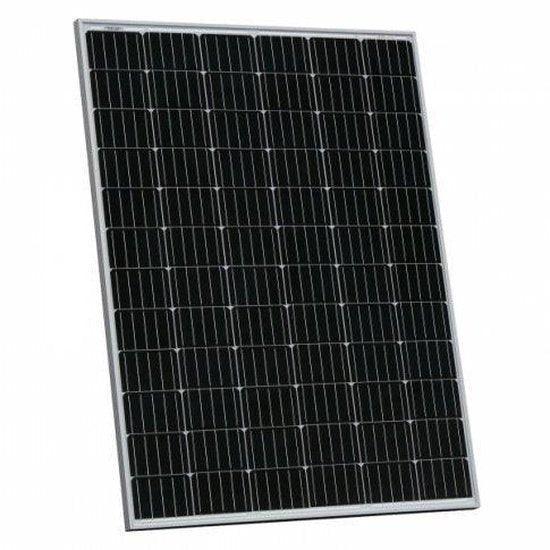

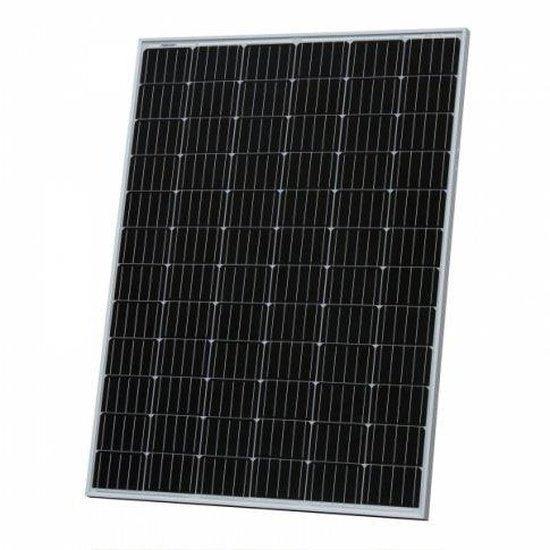

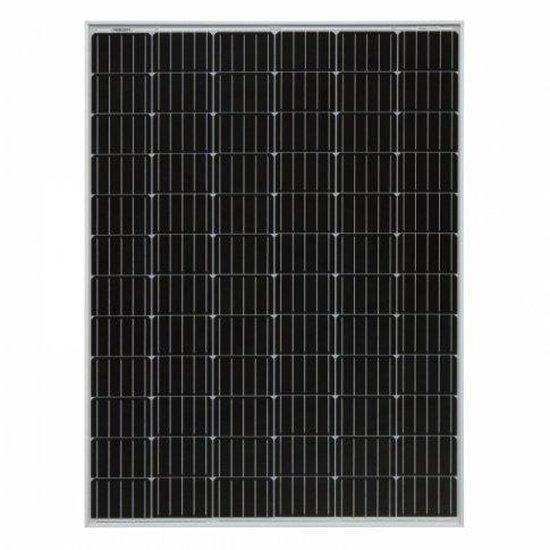

200W monocrystalline solar panel with 1m cable

200W monocrystalline solar panel with 1m cable

This waterproof, affordable,?ÿhigh efficiency 200W monocrystalline solar panel?ÿis perfect for permanent outdoor use to provide free electricity to charge a 12V battery?ÿto power hundreds of devices and electrical appliances.

The long-lasting monocrystalline solar cells and the tough, sealed, aluminium frame will provide years and years of consistent, free power. The waterproof design ensures that?ÿthe panel can be used in?ÿall weather conditions.

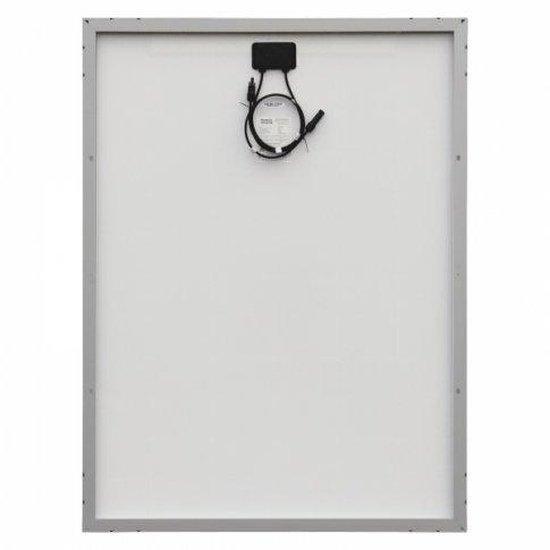

The panel comes with 1m of special solar cable?ÿwhich can operate at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of the cable for easy connection to other solar panels, extension leads or your existing system (MC4 connectors can also be cut off when wiring to screw terminals of a solar charge controller).

Each individual solar panel is thoroughly tested to the highest quality standards, and labelled with a unique serial number for further quality control and increased warranty protection.

Several of these panels may be connected in parallel or series to generate extra power for your needs.

Please note that this solar panel requires a 20A solar charge controller for charging batteries:

• For 12V batteries it requires a high efficiency 20A MPPT solar charge controller / regulator
• For 24V batteries or battery banks, a standard 20A solar charge controller / regulator may be used with this solar panel, although a high efficiency MPPT controller will have a stronger output and shorter charging time for your battery.
  ?ÿ

Click on the Details and Specifications tab for more information.

Specifications:

• Peak power: 200W
• Maximum power voltage: 38.80V
• Maximum power current: 5.15A
• Open circuit voltage: 45.00V
• Short circuit current: 5.80A
• Power tolerance: 0/+3%
• Dimensions: 132 x 99 x 3.5 cm
• Weight: 15.5 kg
• Mounting holes for installation
• 2 x 1m of high quality single core solar cable 4.0mm?ý cross section
• Male and female MC4 connectors

The product is covered by a?ÿ1 year workmanship warranty provided by Photonic Universe. We will repair or replace defective items at our discretion.?ÿ

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

Installation:

This solar panel does not include an installation manual as it?ÿmust be connected to further devices such as a solar charge controller or inverter which are supplied with a manual.

All of our solar charge controllers include an instruction manual with detailed information regarding installation and a wiring diagram.

If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone
