Windlass WA1100 1100W Vertical Aluminium Base, 8 mm Gypsy | 4Boats
62037
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price£739.99
/
Tax included.
Windlass WA1100 vertical kit with aluminium base and 8 mm gypsy, designed for boats 8.5–12.8 m (28–42 ft) and anchors up to 18 kg (40 lb).
- Power: 1100 W; Operating voltage: 12 V only; Weight: 9 kg
- Max working load: 500 kg (1,102 lb); Typical working load: 85 kg (187 lb)
- Current draw (typical): 65 A (12 V); Current draw (max): 320 A
- Gear type: worm gear
- Retrieval speed: 20 m/min (66 ft/min); Pay-out speed: 24 m/min (79 ft/min)
- Dimensions above deck: 195 × 130 × 140 mm (7.7 × 5.1 × 5.5 in); Gypsy: 8 mm; suits rope 12–14 mm (½–9/16 in)
- Includes: WA1100 windlass, solenoid switch SW-025, 200 A solenoid K-200, circuit breaker CB-003, fixing bolts, manual & template

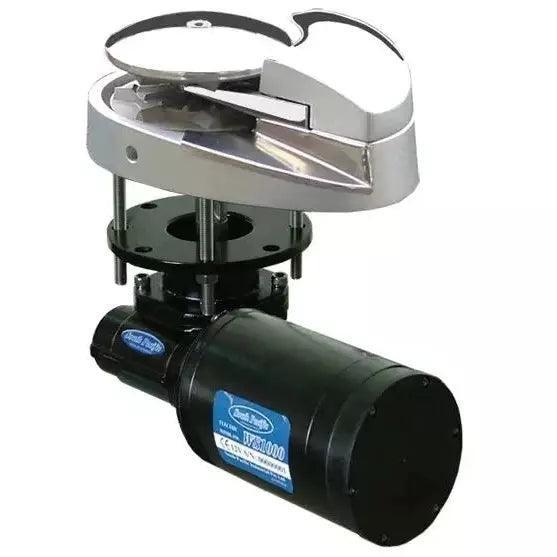

Vertical windlass with the power unit (motor) mounted horizontally beneath the deck to save space. Built-in torque limiter smooths operation and manual retrieval is possible. Suitable for 8.5–12.8 m (28–42 ft) vessels — professional fitting recommended.
