Guidi Brass Thru-Hull 1-1/2 in (70 mm flange) Standard Series | 4Boats
1255-100008P
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 6 items left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price£26.38
/
Tax included.

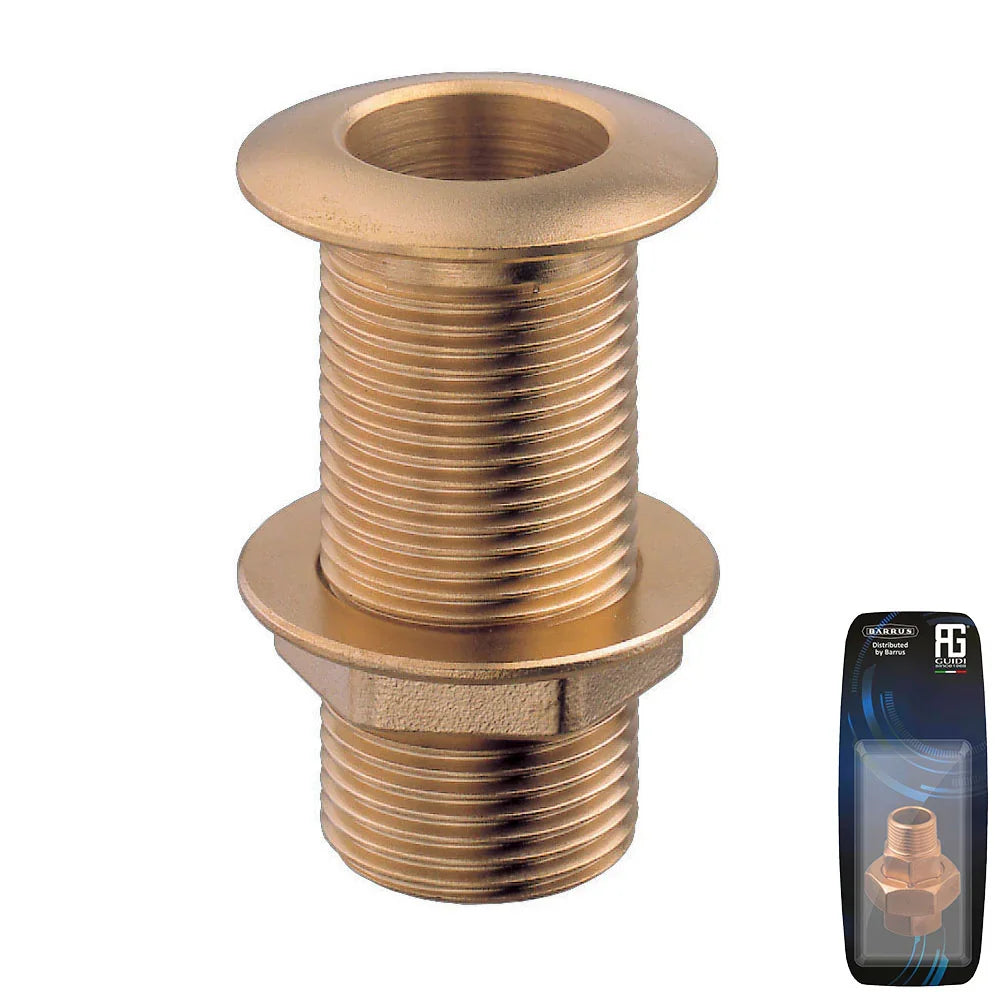

Standard Series brass thru-hull, retail packed for export and intended for above-waterline and freshwater applications. Nominal thread is 1-1/2 in; flange and dimensional details below. Not recommended for continuous submersion or unprotected saltwater use.
- Type: Thru-hull, Standard Series
- Brand: Guidi Brass

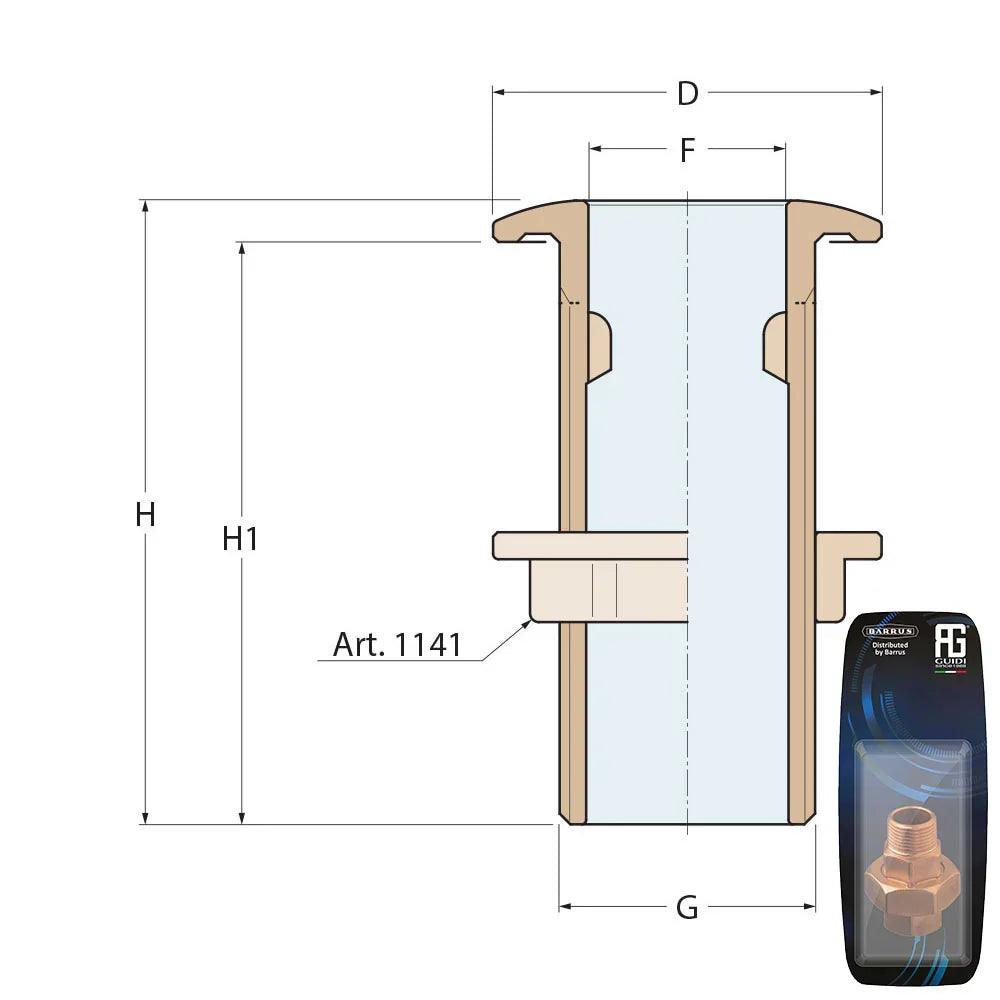

- Thread: 1-1/2 in nominal (BSP parallel compatible) - thread OD ≈ 48.3 mm (confirm thread type before installation)
- Flange OD: 70 mm (≈ 2.76 in)
- Shank length: 50 mm (≈ 1.97 in)
- Required hull cutout (hole): Ø 48 mm (≈ 1.89 in)
- Maximum hull thickness: 45 mm (≈ 1.77 in)
- Material: CW617N brass (maritime grade; higher zinc content)
- Finish: Machined brass for reliable sealing
- Includes: Locknut and rubber sealing washer
- Approximate weight: 0.28 kg
- Compatibility & standards: fits 1-1/2 in BSP fittings (ISO 228-1); verify BSP/NPT requirement for your installation
- Packaging: Retail packed, export-ready
