Photonic Universe 5m 4.0mm² Dual Core Cable with 15A Fuse | 4Boats

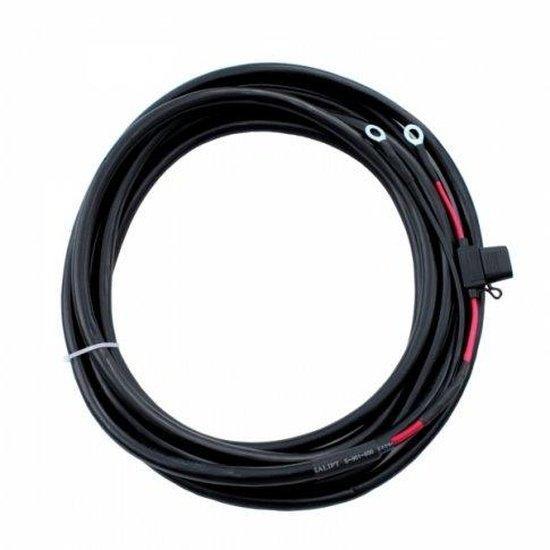

Photonic Universe dual core extension cable: 5 m dual core 4.0 mm² cable pre-fitted with an inline 15 A blade fuse holder and 8 mm (M8) ring terminals for fast, secure battery connections.

• Versatile use: suitable for extending solar panel leads, connecting batteries to solar charge controllers, and general 12 V DC wiring in vehicles, boats and off-grid solar kits. Also described as a fused battery lead for convenient installs.
• High-quality cable: 5 m dual core with a 4.0 mm² cross section; recommended continuous current up to 12 A.
• Pre-fitted components: inline fuse holder with 15 A blade fuse and 8 mm (M8) ring terminals for quick installation. The fitted 15 A fuse provides overcurrent protection; continuous current on the cable should not exceed 12 A — select the fuse rating to suit your circuit and cable limits.
• Efficient power transmission: low voltage drop when sized and routed correctly; suitable for up to 144W on 12 V (12 A). For 24 V/36 V systems, ensure current remains within the rated amperage.
• Ready to use and durable: pre-terminated for hassle-free installation in boats, caravans and vehicles. Suitable for marine use when all connections are sealed and protected.
• Specifications: Length 5 m; Core size 4.0 mm²; Fuse 15 A blade; Terminals 8 mm (M8) ring; Current capacity up to 12 A.

Care: Keep terminals and the fuse holder dry and corrosion-free; verify the fuse rating before use; secure ring terminals to 8 mm battery studs; plan cable runs and loads to minimise voltage drop. Confirm cable run length and load for safe 12 V DC wiring.
