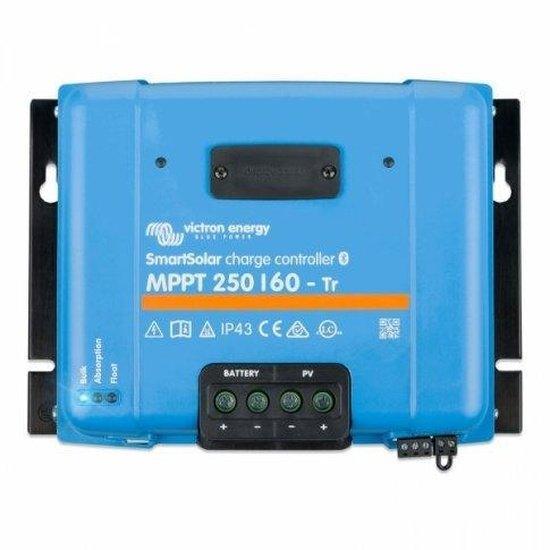

Victron SmartSolar MPPT 250/60 is a 60 A solar charge controller with inbuilt Bluetooth for real‑time monitoring and advanced ultrafast MPPT performance.
- Ultrafast MPPT Technology: This 60 A MPPT solar charge controller is designed to deliver the highest possible energy yield – high efficiency (>95%) and improved low‑light performance.
- Inbuilt Bluetooth and live data transmission: Built‑in Bluetooth for VictronConnect; real‑time information is displayed including solar panel output. Data logs: System activity for the past 30 days is available to view.
- User‑defined battery charging algorithm: Option to disable preset values in favour of personalised charging parameters.
- Communication & display options: VE Direct USB cable; optional LCD display connection area; Optional control panel: The user can connect an optional MPPT control panel (sold separately) to the connection area.
- Programmable relay and alarms: Programmable relay contacts which can be programmed for signalling or control; AC rating: 240 VAC / 4 A, DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC; audible alarm options.
- PV and electrical specs: Max solar panel voltage: 250 V; Max solar panel power: 860W (12 V) / 1720W (24 V) / 2580W (36 V) / 3440W (48 V).
- Protection features & communication: Comprehensive protection (PV short circuit, reverse polarity, overvoltage, overcurrent, reverse current, battery overvoltage, overheating); Communication port: RS232 / TTL for VE Direct accessories; Self‑consumption: <35 mA (12 V) / <20 mA (24 V).
- Environmental & mechanical: Working temperature -30°C to +60°C (-22°F to 140°F); IEC/EN certified; Enclosure: IP43 (electronic components); Pollution Degree rating: PD3; Dimensions: 185 x 250 x 95 mm (7.28 x 9.84 x 3.74 in); Weight: 3 kg (6.6 lb); 4 x mounting holes (8 mm dia). Downloads: User manual for Victron 60 A MPPT SmartSolar solar charge controller VSSM250-60 P available.
Check battery chemistry compatibility, follow installation guidance in the manual and use correct fusing and cable sizing for safe operation.
