Victron SmartSolar MPPT 150/70 70A Solar Charge Controller | 4Boats
VSSM150-70
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular priceΒ£399.99
/
Tax included.

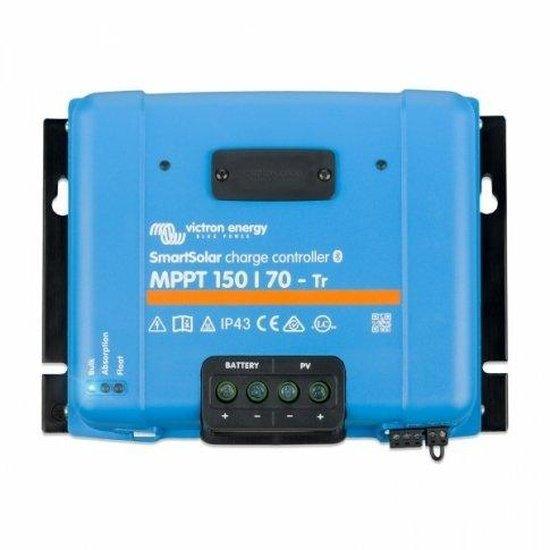

The Victron SmartSolar MPPT 150/70 is an ultrafast 70 A MPPT solar charge controller with built-in Bluetooth for live monitoring and advanced battery management.
- Ultrafast MPPT Technology: 70 A MPPT designed to deliver the highest possible energy yield in the shortest time.
- Max solar panel power: 1000W (12 V) / 2000W (24 V) / 3000W (36 V) / 4000W (48 V) β Max solar panel voltage: 150 V.
- Suitable for 12/24/36/48 V battery systems and compatible with a wide range of battery chemistries, including multiple leadβacid and lithium charging stages.
- Built-in safety protection: PV short circuit, reverse polarity, overvoltage, overcurrent, reverse current protection, battery overvoltage and overheating protection (internal temperature sensor).
- Status LED indicators for quick system condition checks.
- Built-in Bluetooth: Connect to a phone or tablet using the VictronConnect app for configuration and monitoring.
- Live data transmission: Realβtime information including solar panel output, battery voltage, current and battery state of charge. Detailed data logs: system activity for the past 30 days available to view. Note: viewing full SOC history or advanced battery metrics may require a compatible Victron monitor or BMS.
- Userβdefined battery charging algorithm: Option to disable preset values in favour of personalised charging parameters for each charging stage.
- Programmable relay & connections: Relay contacts are programmable (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC). The relay can be configured for common uses including controlling loads, generator start/stop or to activate an audible alarm.
- Communication port: VE.Direct port (TTL-level UART). VE.Direct to USB cable, optional LCD display and MPPT control panel sold separately.
- Specifications & mechanicals: High efficiency (>95%); Selfβconsumption: <35 mA (12 V) / <20 mA (24 V); Working temperature: -30Β°C to +60Β°C (-22Β°F to +140Β°F); IEC/EN certified; Pollution Degree rating: PD3; Enclosure: IP43 (electronic components) / IP22 (connection area); Dimensions: 185 x 250 x 95 mm (7.3 x 9.8 x 3.7 in); Weight: 3 kg (6.6 lb); 4 x mounting holes for ease of installation.
- Documentation: User manual for Victron 70 A MPPT SmartSolar solar charge controller VSSM150-70 P available to download.
Accessories such as VE.Direct cables, LCD display and MPPT control panels are sold separately.
