EasyFold Boat Launching Wheels – Stainless Steel | 4Boats

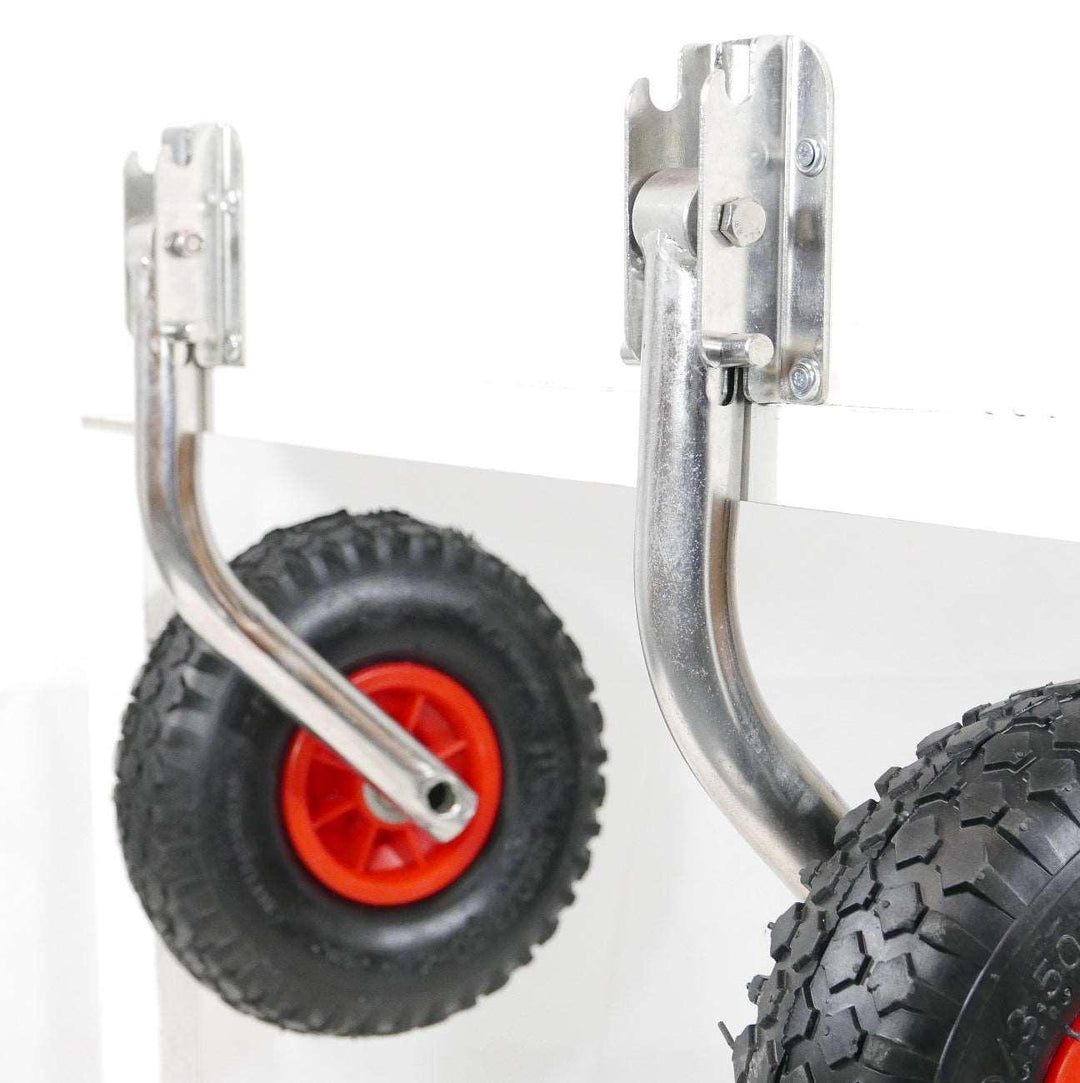

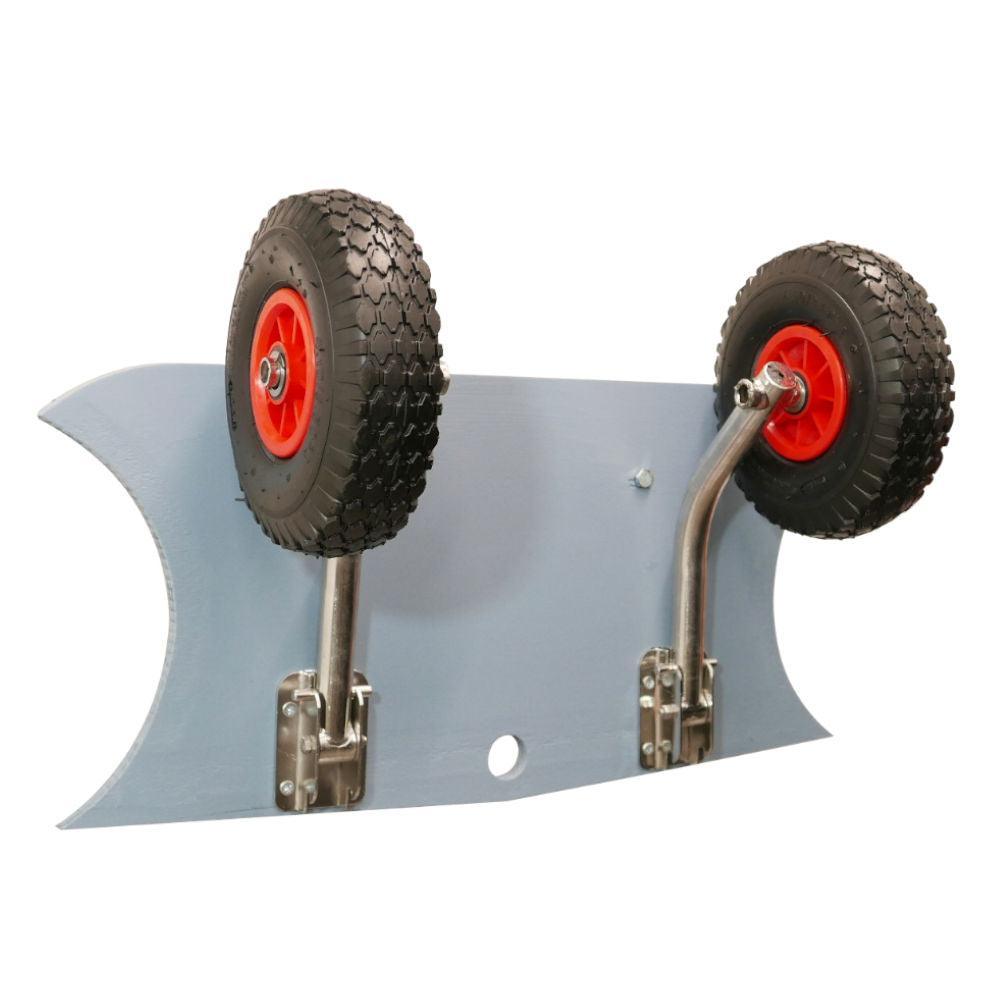

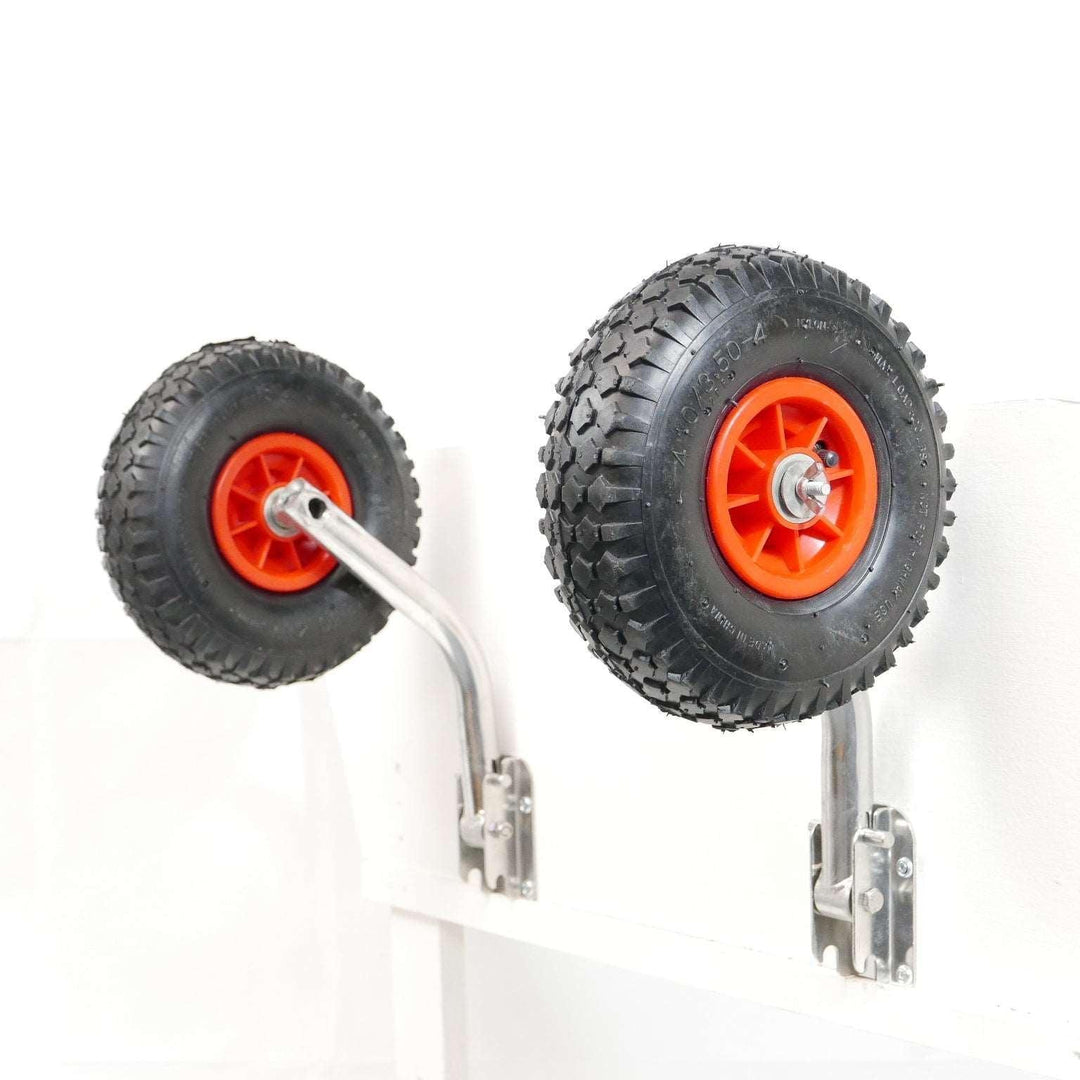

Stainless-steel EasyFold boat launching wheels for inflatable boats and RIBs. Quick to fold with a spring-loaded handle (no pins to remove in the water); wheels rotate between down and upright and lock in place once the boat is afloat. Rated for boats up to 4 m (13 ft) and 150 kg (330 lb).

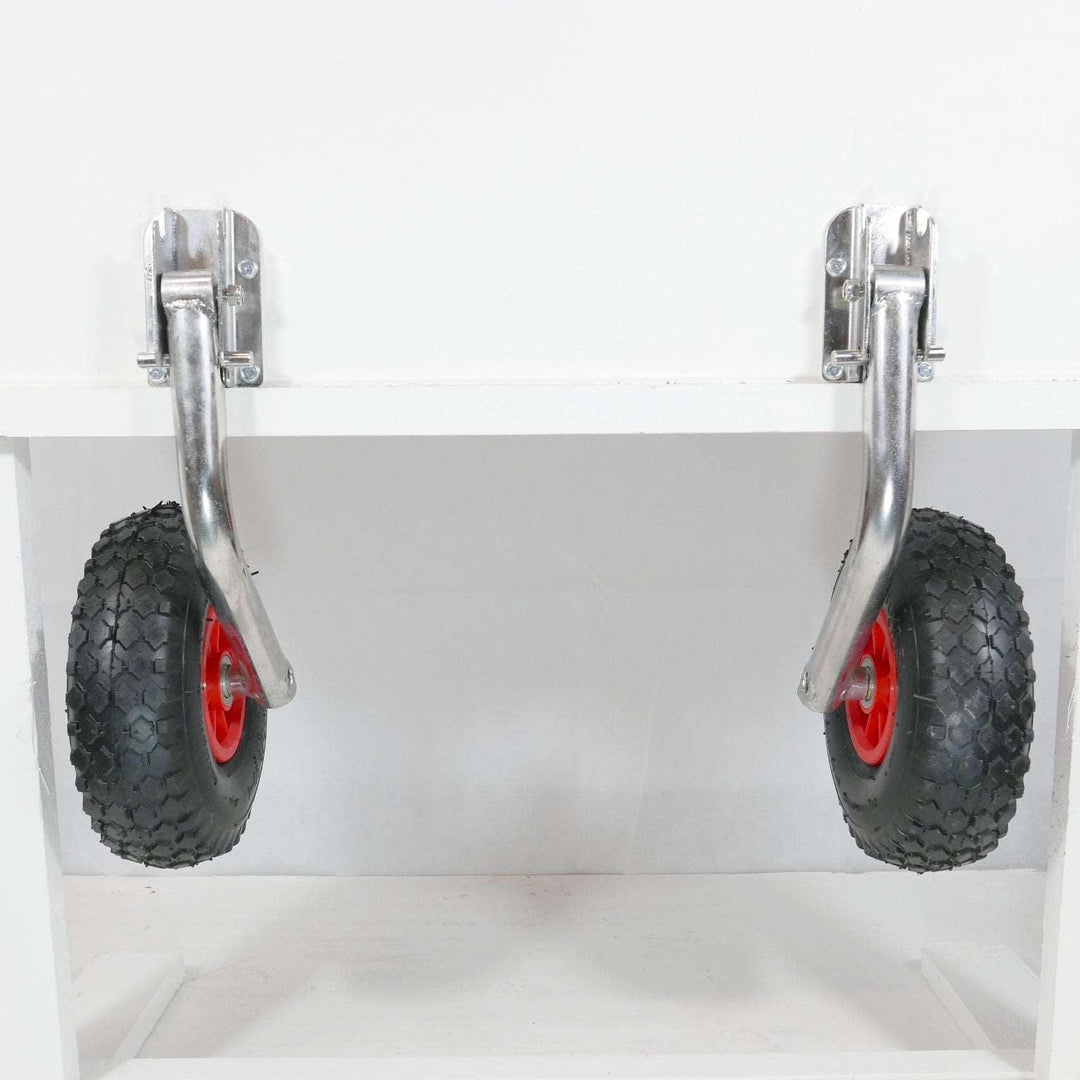

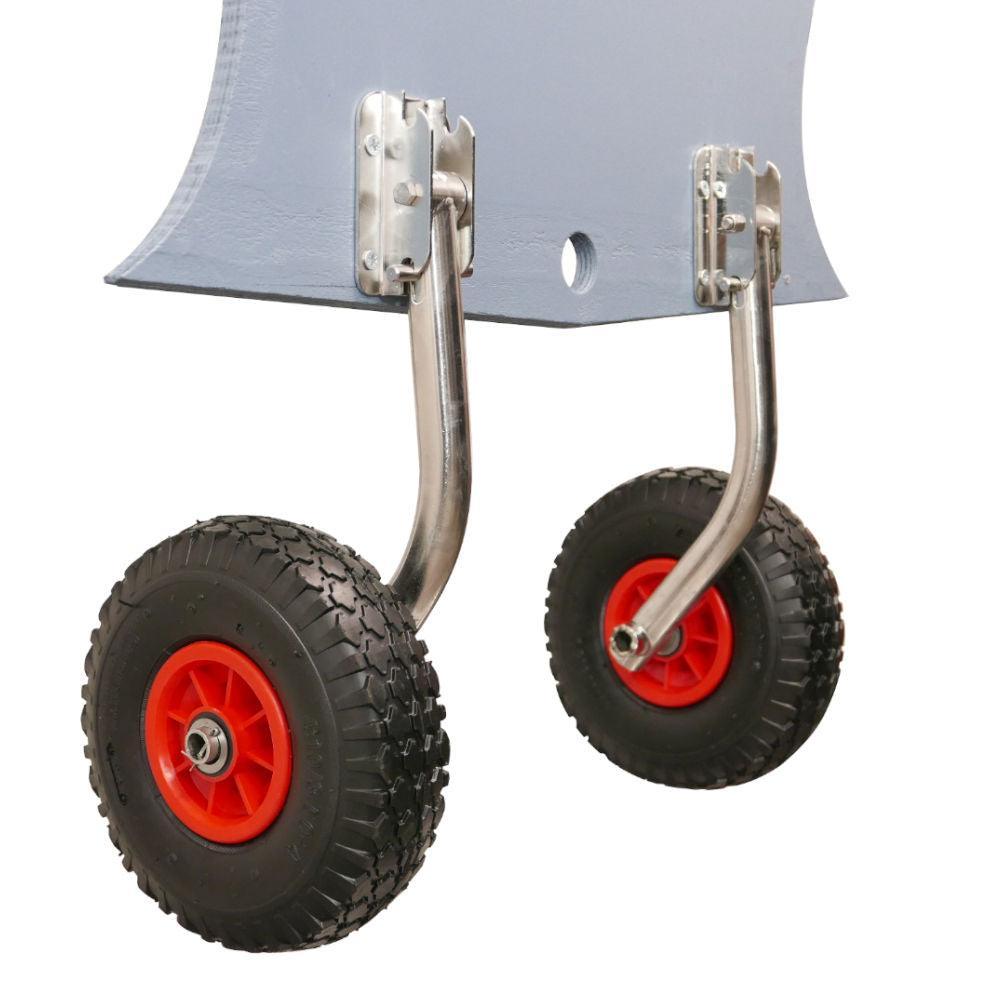

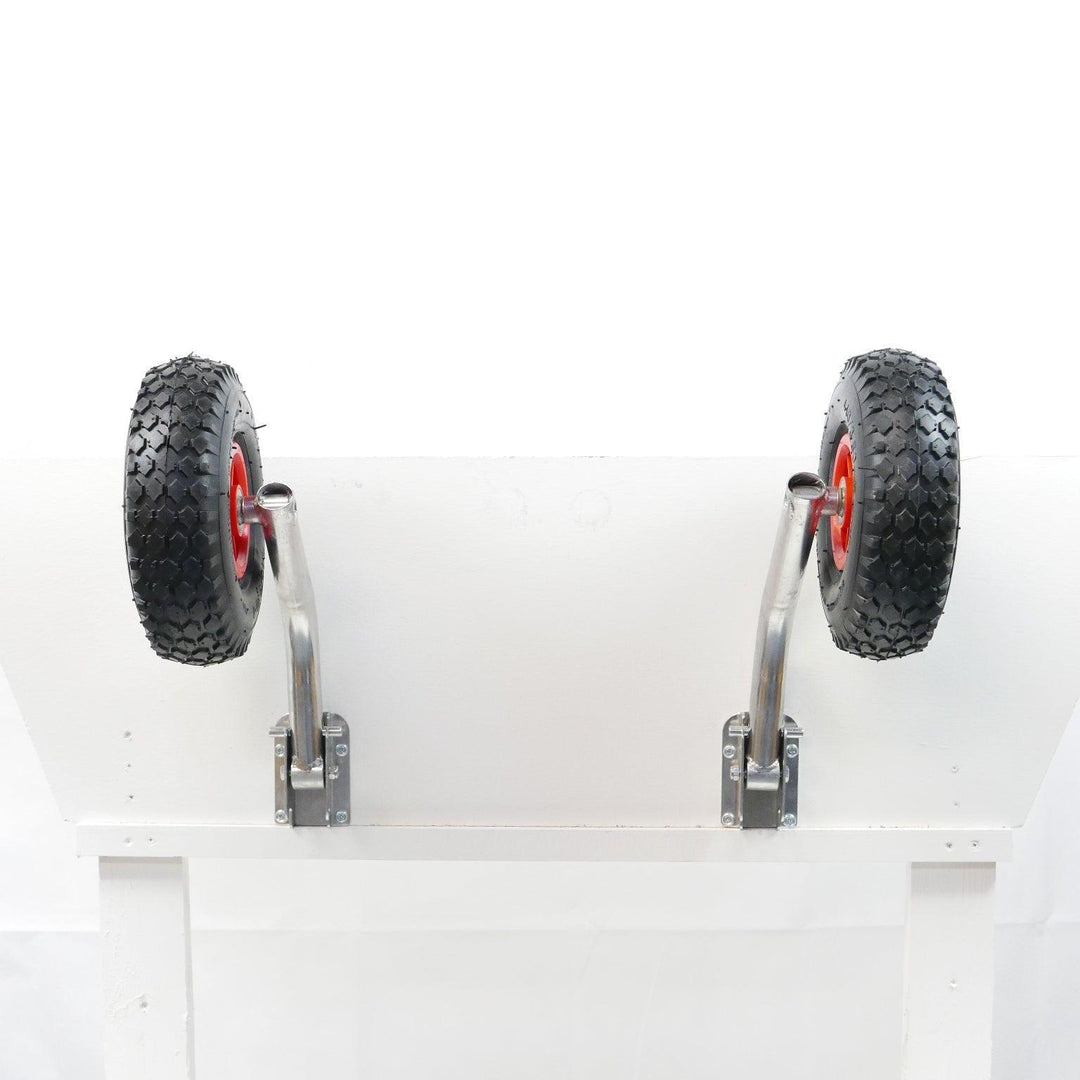

• Fits rigid transoms; wheels stay attached and lock upright once the boat is afloat.

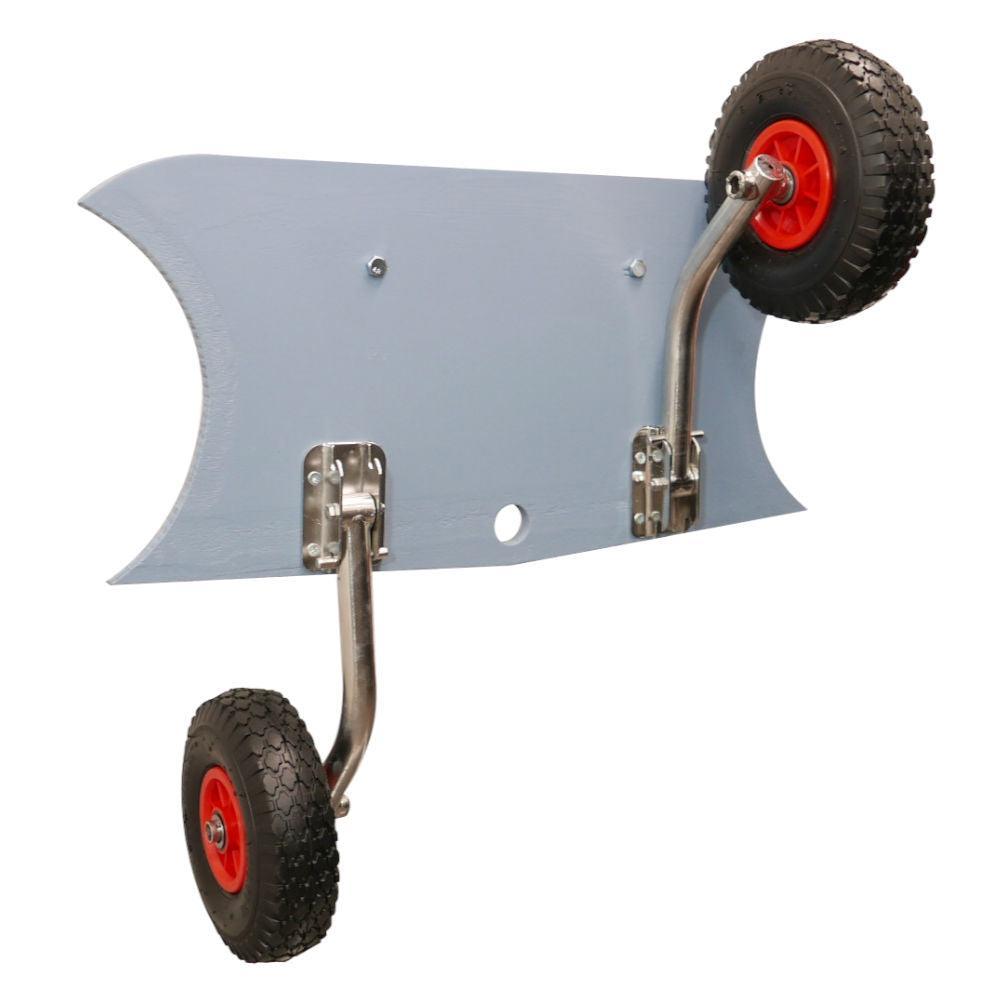

• EasyFold mechanism: spring-loaded handle rotates the wheels between upright and down; no pins to remove in the water.
• On shore, fold the wheels down and lock with a single quick action.

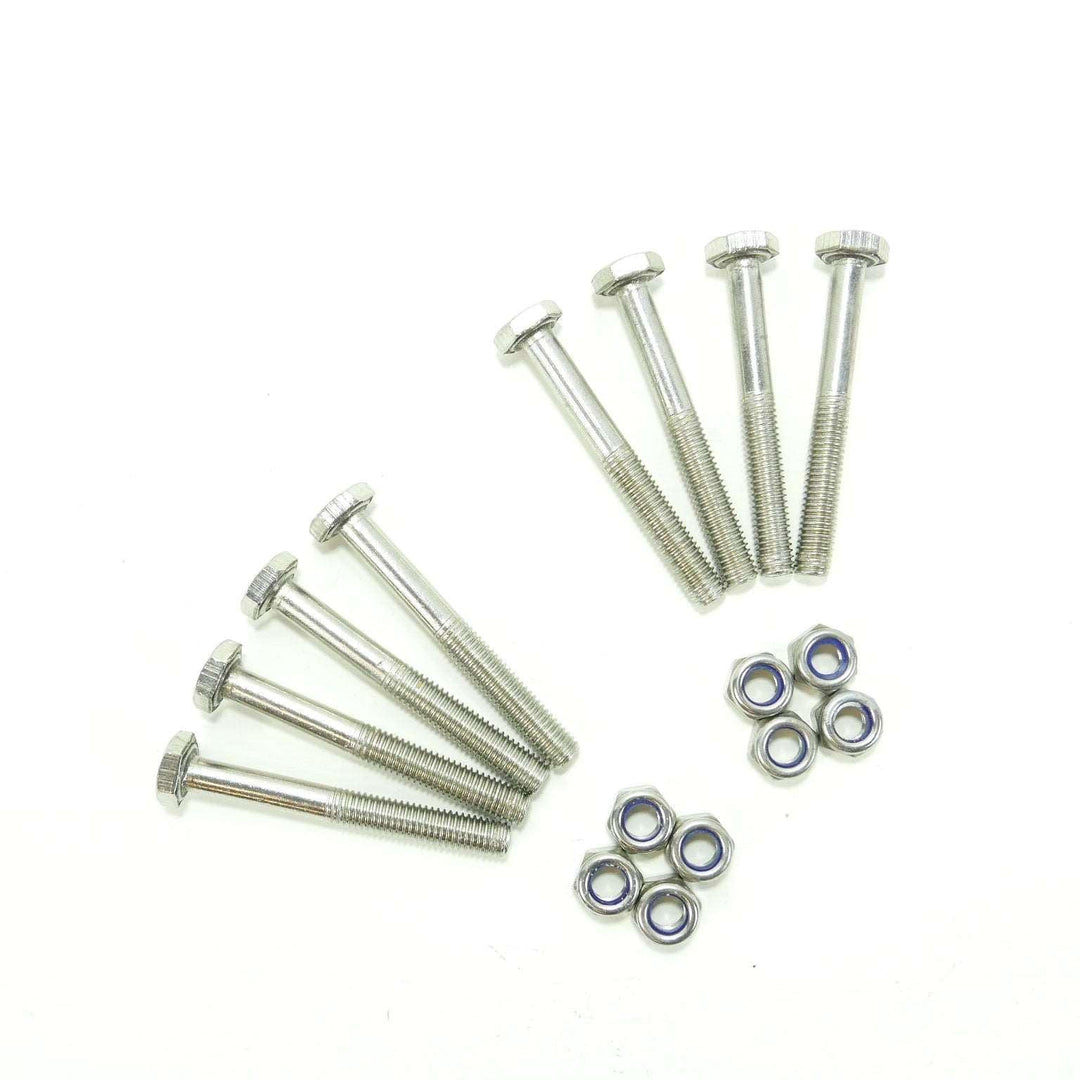

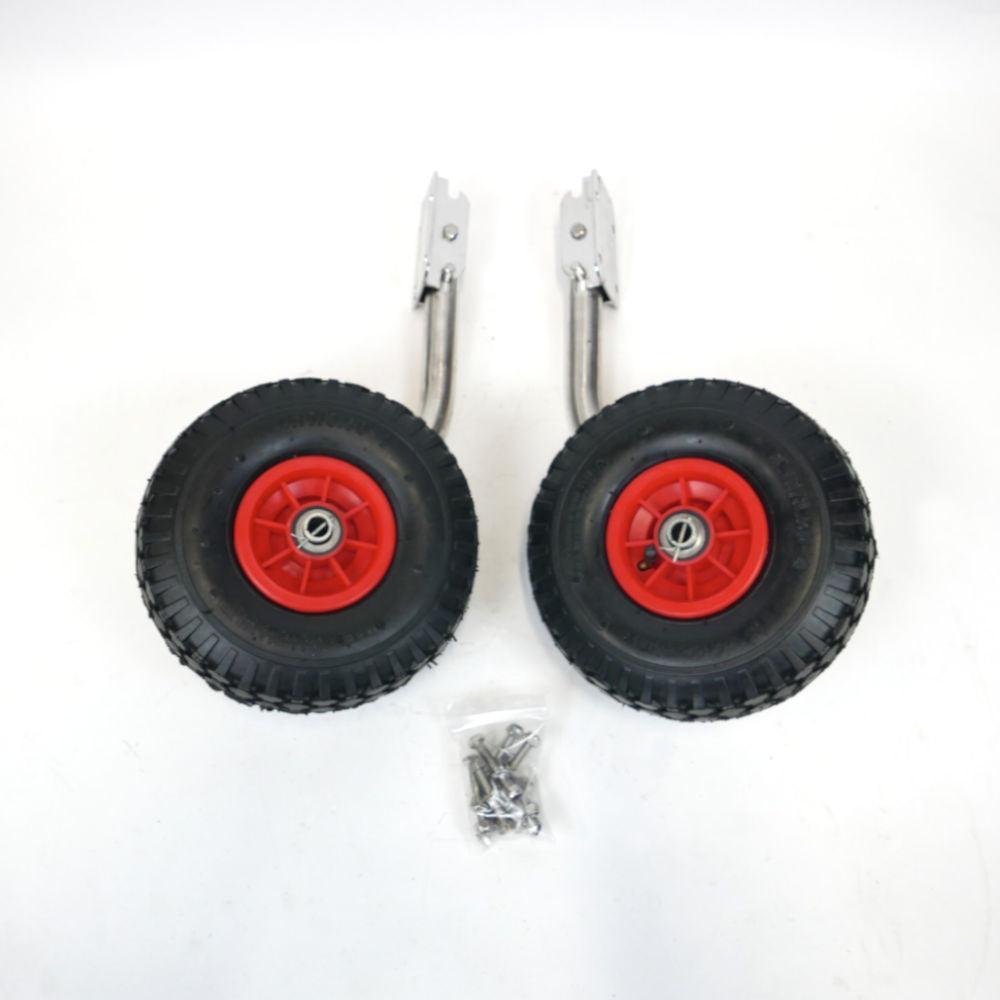

• Construction: marine-grade stainless-steel tubes and pneumatic wheels; includes fixing bolts. Max payload: 150 kg (330 lb). Not suitable for vehicle towing.

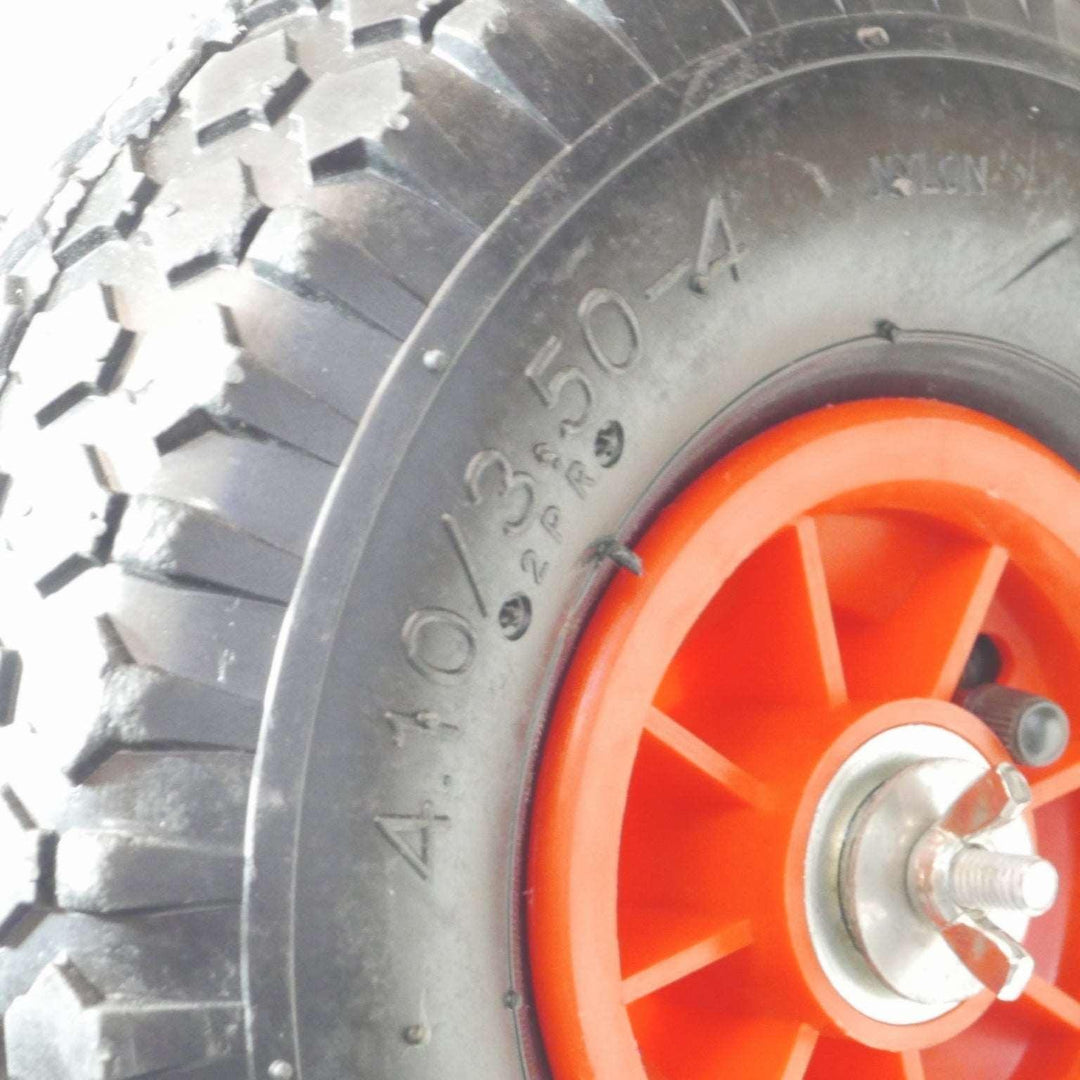

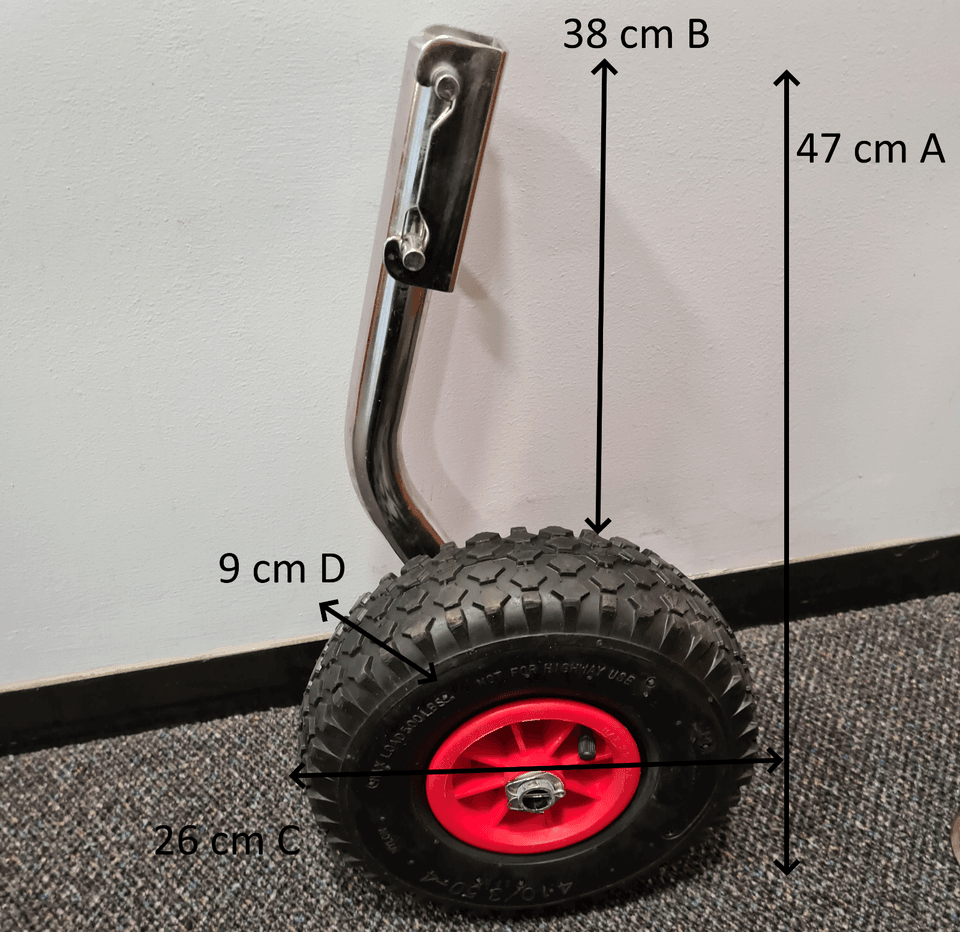

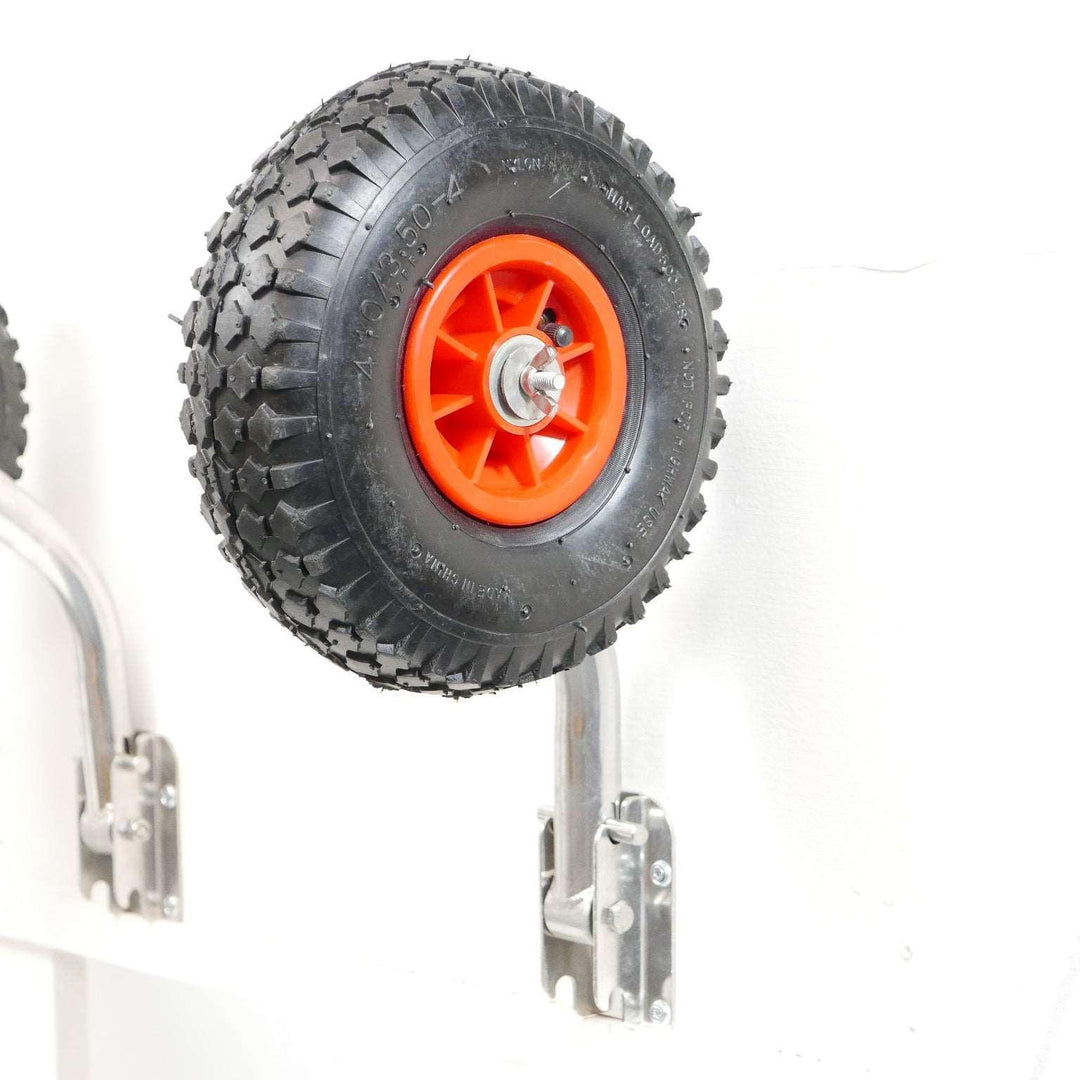

• Wheel dimensions: 8 cm wide × 25 cm diameter (3.1 in × 9.8 in).

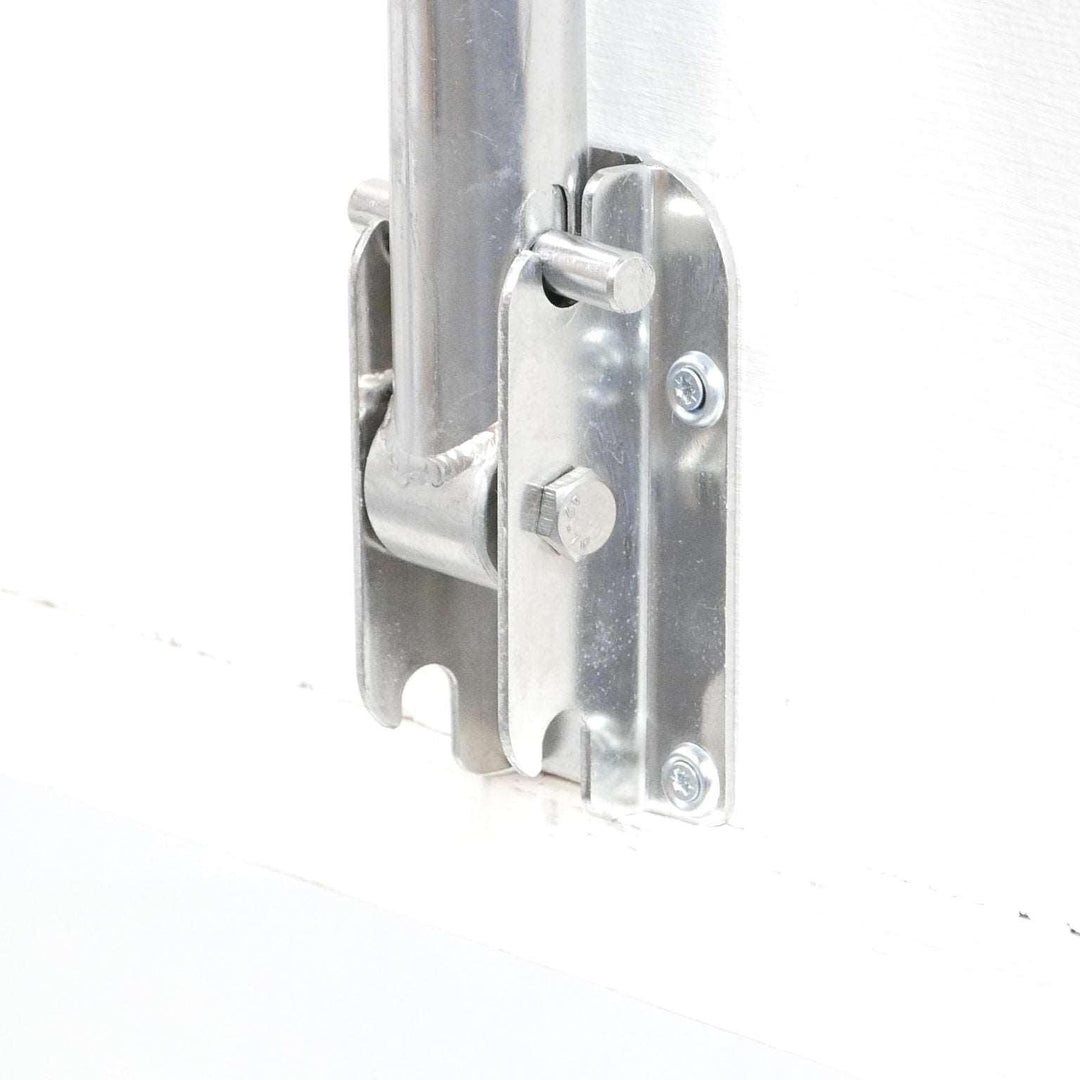

• Maintenance: on first installation, if the spring-loaded pins do not operate smoothly, apply WD-40 into the spring mechanism via the slot holes; re-apply water-resistant marine grease to the wheel axle for smooth operation.
• Before use, ensure the wing nuts holding the wheels are securely tightened.
