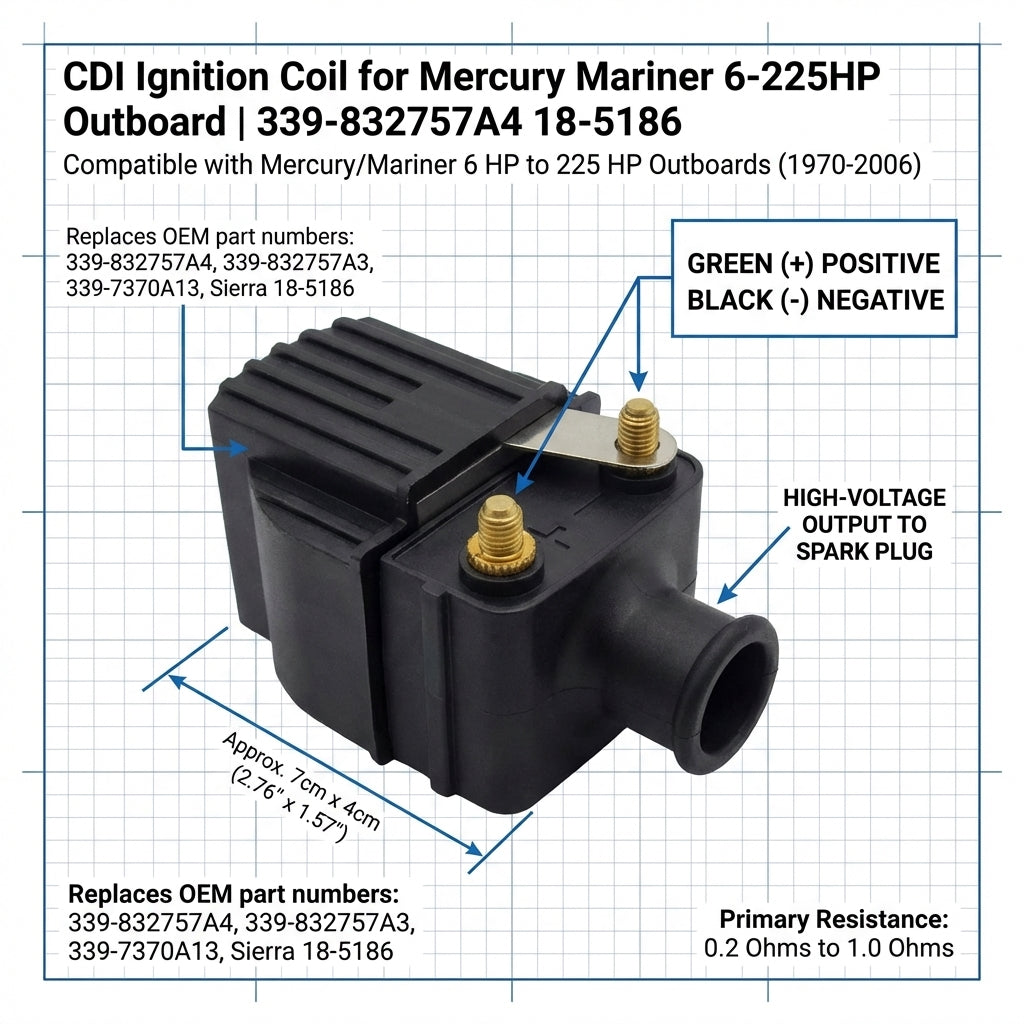

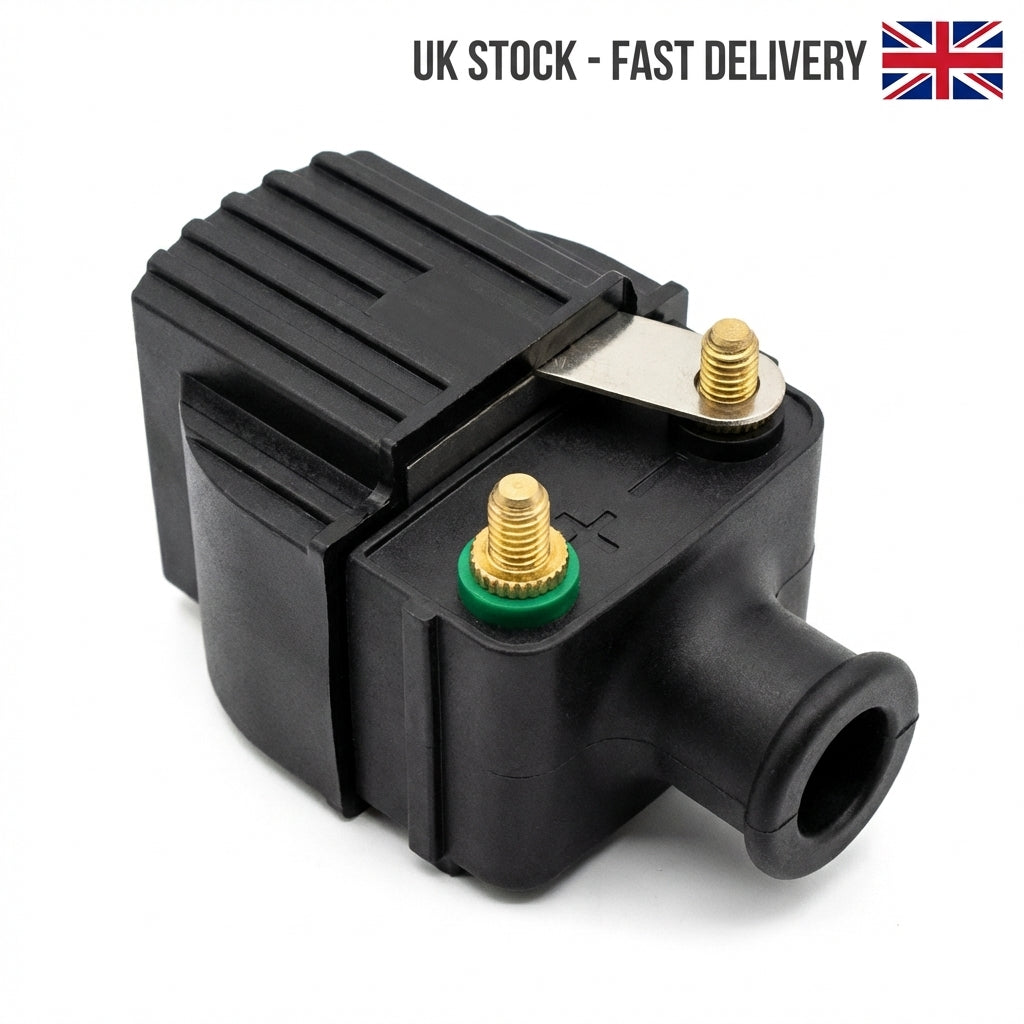

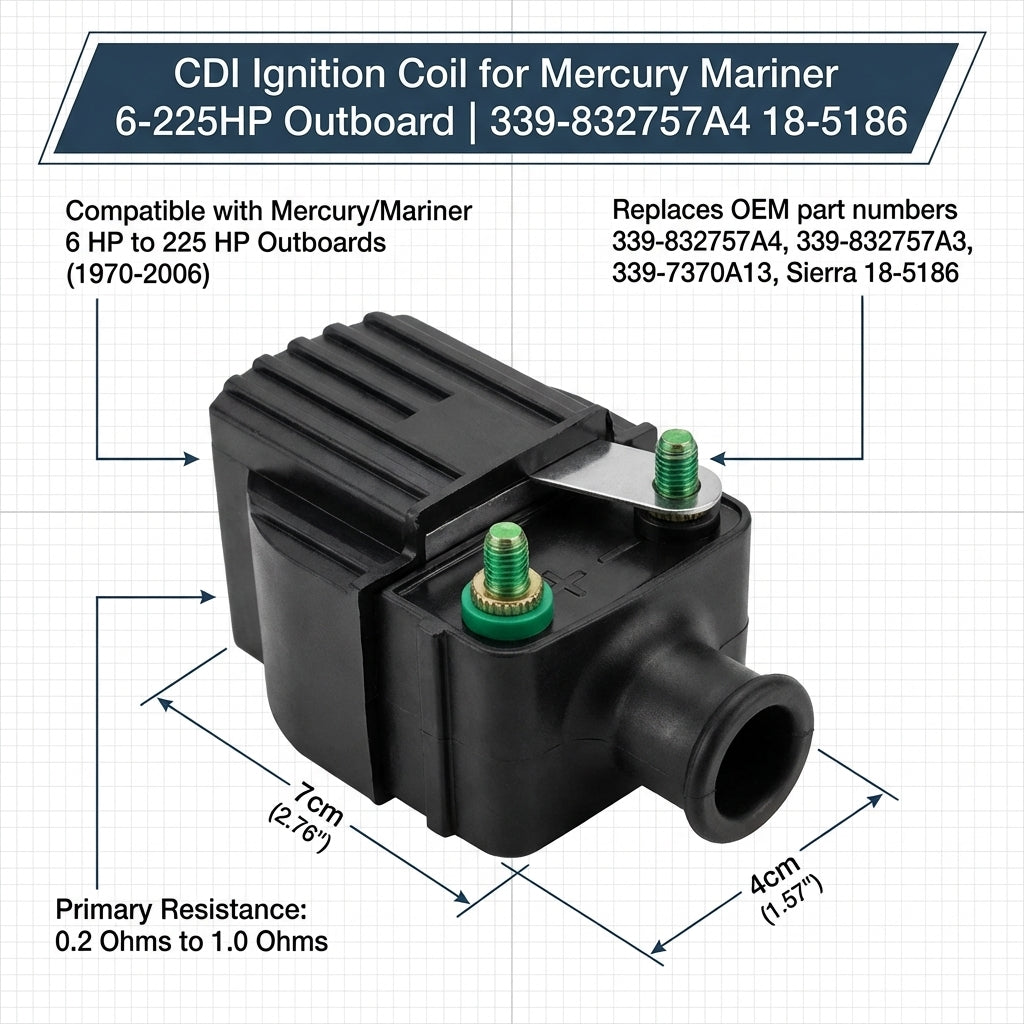

CDI Ignition Coil for Mercury Mariner 6-225HP Outboard | 339-832757A4 18-5186 | 30kV+
MS300-08309
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price£26.99
/
Tax included.
Mercury Mariner High-Performance Ignition Coil
SKU: MS300-08309
Technical Specifications
| Primary Resistance | 0.2 Ω - 1.0 Ω (Ohm) |
| Secondary Resistance | 800 Ω - 1100 Ω (0.8kΩ - 1.1kΩ) |
| Terminal Polarity | Green: Positive (+) | Black: Negative/Ground (-) |
| Mounting Style | Solid Body (Non-Thru-Bolt); Requires Ground Strap or Bracket |
| Engine Cycle | 2-Stroke Applications (Switchbox / ADI Ignition) |
| Housing Material | High-Temp Epoxy Potted / Marine Grade Polymer |
OEM Cross-Reference
MERCURY / MARINER: 339-832757A4, 339-832757A3, 339-832757B4, 339-7370A13, 339-7370A23, 339-7370A2, 339-7370A6, 339-7370A8, 339-7370A16, 339-7370A17, 339-7370A19, 339-832757A5
CDI ELECTRONICS: 184-0001
SIERRA: 18-5186
MALLORY: 9-23200
GLM: 72115
PREVIOUS REVISIONS: 338-4774A1, 338-4995A1, 338-4995A2
CDI ELECTRONICS: 184-0001
SIERRA: 18-5186
MALLORY: 9-23200
GLM: 72115
PREVIOUS REVISIONS: 338-4774A1, 338-4995A1, 338-4995A2
Application Compatibility
Fits a wide range of Mercury & Mariner 2-Stroke Outboards (1970-2006). Check your specific engine serial number against the OEM part numbers above.
- V6 Models: V-135, V-150, V-175, V-200, V-220, V-225, V-250, V-275, V-300 HP
- Inline 6 Models: 90HP, 115HP, 140HP, 150HP (Older Series)
- Inline 4 Models: 40HP, 45HP, 50HP, 75HP, 80HP, 85HP, 100HP, 115HP, 125HP
- Inline 3 Models: 50HP, 60HP, 65HP, 70HP, 75HP, 90HP
- Inline 2 Models: 6HP, 8HP, 9.9HP, 15HP, 20HP, 25HP, 30HP, 35HP, 40HP
- Special Series: XR2, XR4, XR6, Black Max, Magnum, Marathon, Sea Pro
Expert Support & FAQ
Q: Will this fit my engine if it uses a thru-bolt mounting?
A: No. This unit (replaces 184-0001) is designed for applications where the coil mounts via a bracket or strap. If your coil has a hole directly through the center body for a bolt (replaces 184-0006), this is not the correct part.
Q: How do I test my old coil?
A: Using a multimeter, check the Primary Resistance between the positive and negative terminals (should be 0.2-1.0 Ω). Check Secondary Resistance between the spark plug tower and ground (should be 800-1100 Ω). Values significantly outside this range indicate failure.
Q: Which wire goes where?
A: For standard Mercury/Mariner ADI ignitions, the Green wire connects to the Positive (+) terminal and the Black wire connects to the Negative (-) terminal. Ensure the ground strap is clean and tight.
Q: Is this a genuine OEM part?
A: This is a professional-grade aftermarket replacement unit designed to meet or exceed OEM specifications for resistance, thermal durability, and spark output.
