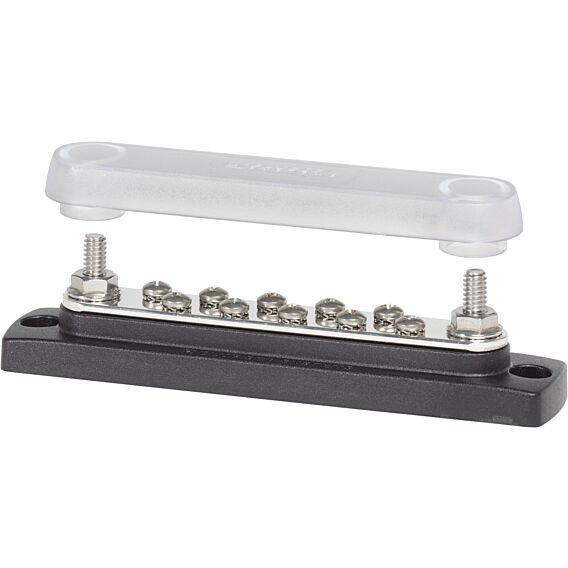

Common 150A 10-gang Busbar with Clear Cover | 4Boats

Common 150A 10-gang busbar with clear cover for neat, protected distribution on boats and vehicle battery systems. Robust, compact and easy to wire; ideal for marine and mobile power distribution.

Ideal as a 10 gang bus bar, marine distribution block or battery bus for boats, RVs and other mobile power systems. Tin-plated copper bus and a clear polycarbonate cover help resist corrosion while keeping terminals visible and protected. Constructed on a UL 94-V0 glass-reinforced thermoplastic base for flame resistance.

• Maximum voltage: 300 V AC, 48 V DC
• 10 screw terminals for multiple connections
• 2 terminal studs for main feeds
• Terminal types: 1/4" stud and #8-32 screw
• Continuous rating: 130 A AC, 150 A DC
• Base: UL 94-V0 glass-reinforced thermoplastics
• Bus: tin-plated copper (CDA 110 / UNS C11000)
• Cover: clear polycarbonate
• Screw torque: 1.69 Nm (15 in-lb)
• Stud torque: 6.78 Nm (60 in-lb)
• Weight: 0.17 kg (0.37 lb)
• Accepts 1/4" stud ring terminals and #8-32 screw terminations; main studs accommodate heavy feed lugs
• Suitable for common positive/negative bus, battery bus and distribution block applications
• Surface-mount installation — use appropriate marine-grade fasteners and sealant in exposed or wet installations
• Natural keyword variants: 10 gang bus bar, marine distribution block, battery distribution

Neat terminal layout and a clear protective cover make wiring and inspection fast. Use this compact busbar where a protected, visible distribution block is needed in marine or mobile power systems.
