BlueFusion 6 Gang 12V Marine Toggle Switch Panel IP65 Waterproof Glow Red LED
MD1251/6S
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

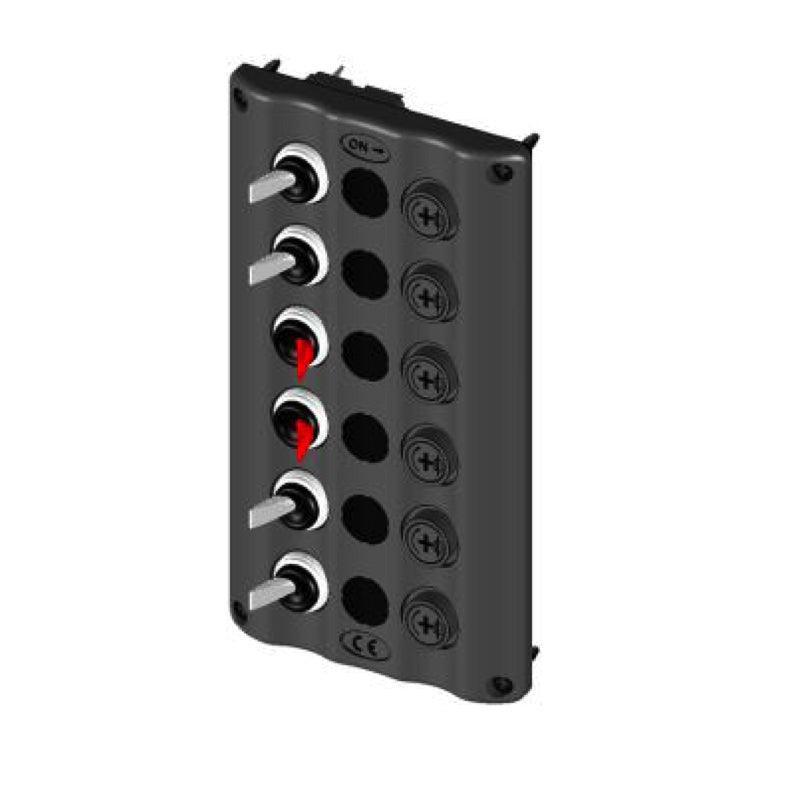

BlueFusion 6-Gang 12V Switch Panel
Glow Red Toggles | IP65 Waterproof | Fused Protection
Upgrade your vessel or vehicle's electrical control with the BlueFusion 6-Gang Toggle Switch Panel. Designed specifically for demanding marine environments, this panel features high-visibility "Glow Red" toggle switches that illuminate clearly when power is active in the circuit, ensuring safe operation at night or in low-light conditions.
Key Features
- β 6 SPST ON-OFF Toggle Switches

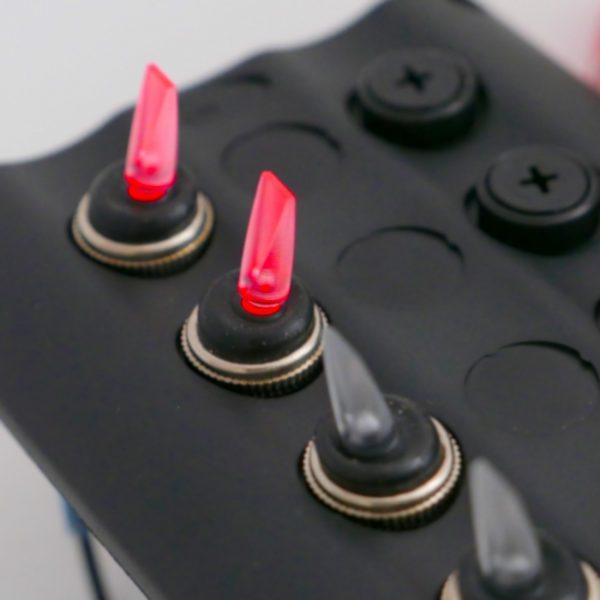

- β Glow Red LED Active Indicators
- β Pre-wired with internal fuse holders
- β Heavy-duty black finish with Nitrile gasket

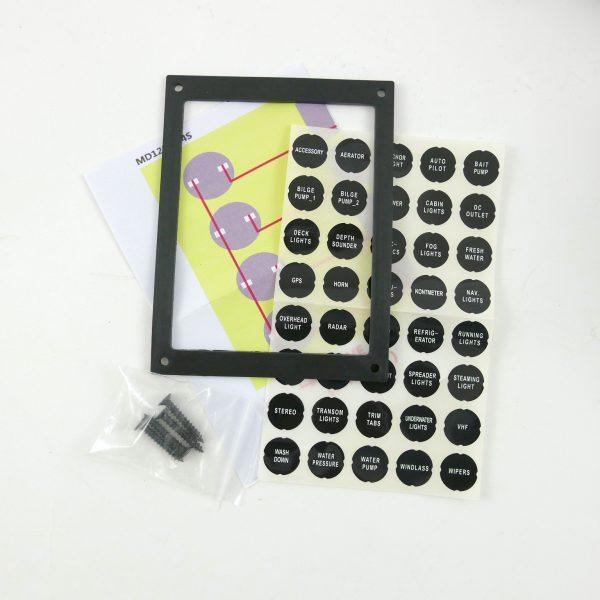

- β Includes 40 x identification sticker labels
Technical Specs
| Operating Voltage: | 12V DC |
| Switch Rating: | 10A per switch |
| Max Cumulative Load: | 40 Amps |
| Panel Dimensions: | 180mm x 100mm |
| Cutout Required: | 160mm x 82mm |
| Wiring Type: | UL/1015 Standard |
Compatibility / Fitment Guide
| System Type | Typical Application | Notes |
|---|---|---|
| Marine | Boats, Yachts, RIBs | Dash mount / Console control |
| Automotive | Campers, RVs, 4x4, Trucks | Secondary accessory panel |
| General 12V | Custom 12V DC Projects | Ensure max 40A total draw |
OEM Cross Reference
| Manufacturer | BlueFusion |
| Part Number (MPN) | MD1251/6S |
| EAN (Barcode) | 5060580882767 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from BlueFusion, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the dimensions and the MPN (MD1251/6S). This panel fits any flat surface with the required cutout of 160mm x 82mm and operates on standard 12V DC systems.
What fuses are included with this panel?
This panel is pre-fitted with internal fuse holders containing 3 x 5A, 2 x 10A, and 1 x 15A fuses, offering tiered protection for different circuit loads.
Note: Professional installation is recommended. Always verify your total current draw does not exceed 40A cumulative across the panel.
