BlueFusion 12V/24V Marine Power Socket Panel with 10A Circuit Breaker IP65 Rated
MD1252/P
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

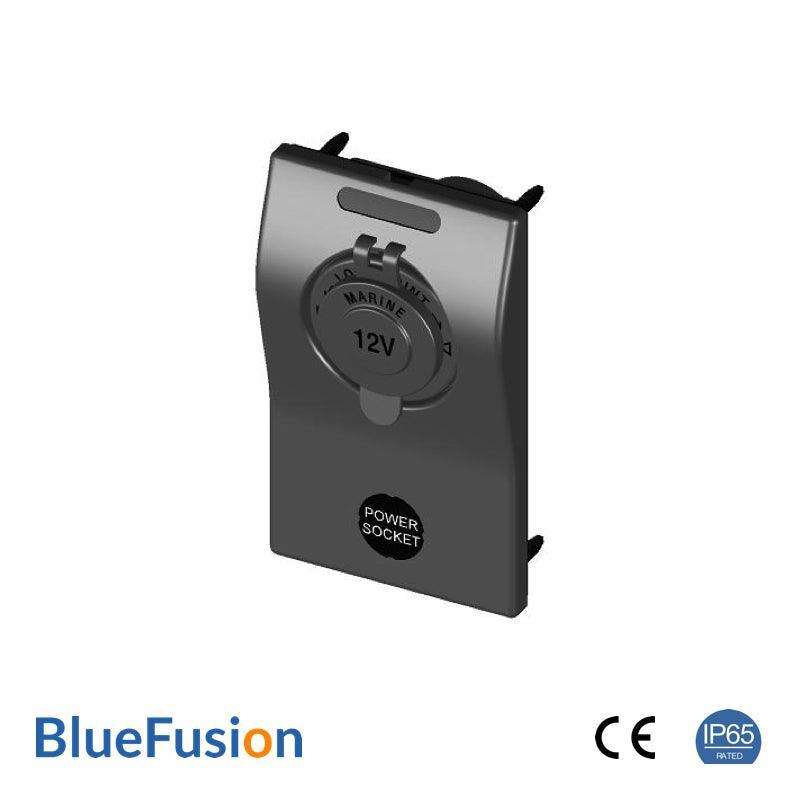

BlueFusion 12V/24V Power Socket Panel
IP65 Waterproof with Integrated 10A Circuit Breaker
This BlueFusion marine-grade power socket panel provides a robust and reliable charging solution for your vessel or vehicle. Engineered specifically for harsh outdoor environments, it combines a heavy-duty cigarette-style power socket with a resettable 10 Amp circuit breaker to protect your electronics from overcurrent.
Key Features
- β Dual Voltage: Compatible with both 12V and 24V DC systems.
- β Integrated Protection: Built-in 10A resettable circuit breaker.
- β IP65 Rated: Fully waterproof for cockpit and deck use.
- β Flush Design: Concealed screw fittings for a clean look.
- β Quality Materials: High-grade UL 1015 electrical wiring.
Technical Specs
| Panel Input Rating | 12V (20A) / 24V (10A) |
| Socket Type | 12V Cigarette Style |
| Circuit Breaker | 10 Amp |
| Panel Size | 55 mm Γ 100 mm |
| Certification | CE, IP65 Waterproof |
| Wiring Standard | UL 1015 |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine (Boats/Yachts) | 12V / 24V DC | Ideal for cockpit, flybridge, or deck mounting. |
| Caravans / RVs | 12V / 24V DC | Great for auxiliary power distribution in camper vans. |
| Automotive | 12V DC | Suitable for 4x4, trucks, and off-road builds. |
Package Contents
| 1 x BlueFusion Power Socket Panel |
| 4 x Stainless Steel Mounting Screws |
| 1 x Nitrile Rubber Gasket |
| 1 x Instruction/Wiring Diagram |
Questions & Answers
Is this a genuine BlueFusion part?
Yes, this is an authentic BlueFusion product, known for high-quality marine-grade electrical accessories.
How do I reset the circuit breaker if it trips?
The panel features a push-button reset. If the 10A limit is exceeded, the breaker pops out; simply press it back in to restore power once the fault is cleared.
Can this be mounted in an exposed area?
Yes. With an IP65 rating and a waterproof rubber seal, this panel is designed specifically for locations exposed to water spray and dust.
Note: Please verify your installation dimensions (55mm x 100mm) before purchasing to ensure a perfect fit on your dashboard or panel.
