12V/24V Aluminium 4‑Gang Switch Panel, IP65 Rated | 4Boats
MD1254/4S
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 6 items left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price£34.99
/
Tax included.

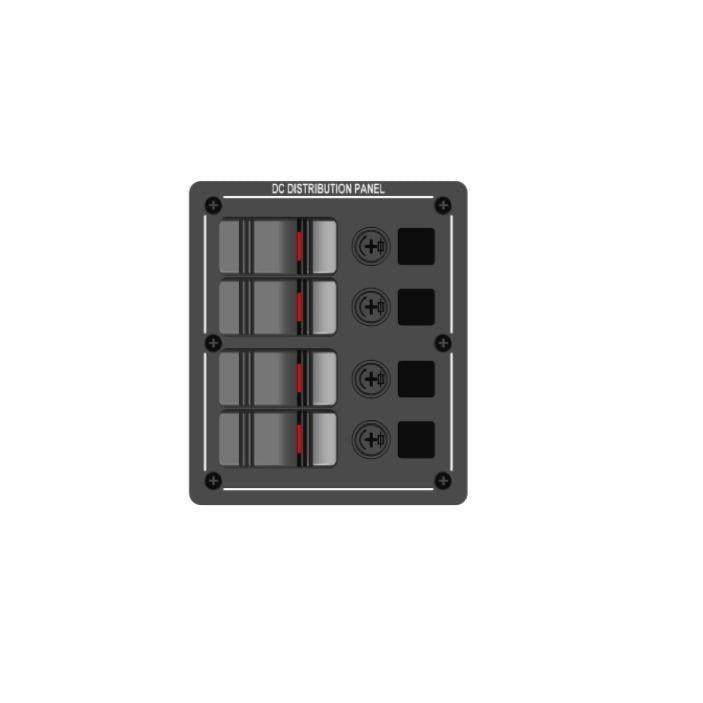

Robust black-coated aluminium 4‑gang switch panel for 12/24 V marine systems with red illuminated indicators, IP65 protection and heavy‑duty construction.
- black coated finish
- Switch rating: 12 V 20 A, 24 V 10 A DC
- Panel rating: Maximum cumulative amp: 45 A
- Rocker switches: (SPST/ON‑OFF) × 4
- Fuse holders: 2 × 5 A, 1 × 10 A, 1 × 15 A
- Electrical wiring: UL/1015
- Size of panel: 130 mm × 100 mm (5.12" × 3.94")
- Installation holes: 107 mm × 82 mm (4.21" × 3.23")

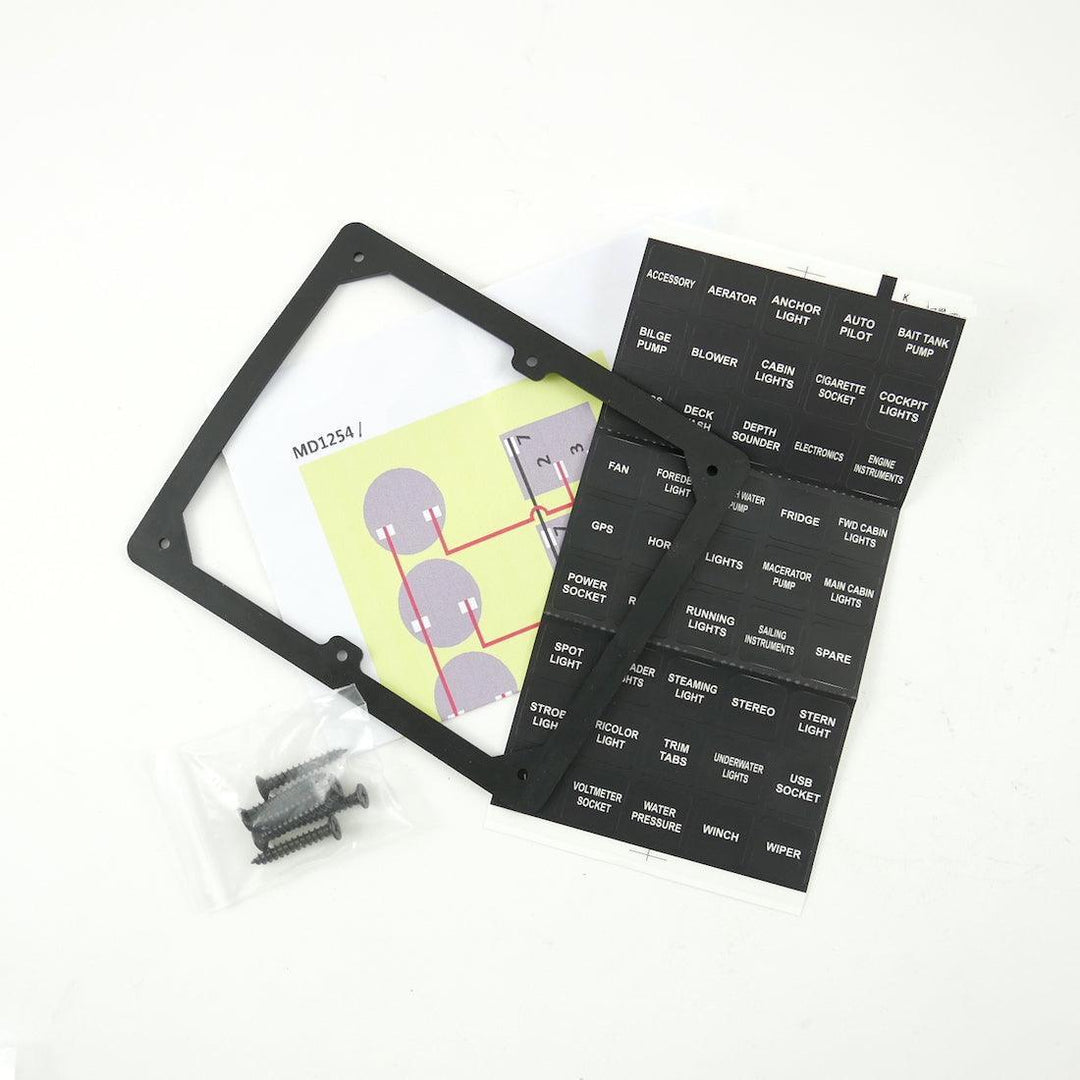

- Certification: CE, IP65; Accessories: stainless steel screws ×6, nitrile rubber gasket ×1, inscription sticker labels ×45
Red illuminated indicators for each circuit; instruction wiring diagram supplied. Designed for flush mounting in 12/24 V boat electrical installations.
