SEAFLO Pressure System Luxury Pump Accumulator Pressure Boost System 12V 4.0 gpm 60 psi 8L Tank
WSK10400600021
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
Seaflo Luxury Pump Accumulator Pressure Boost System 8 L - 12V

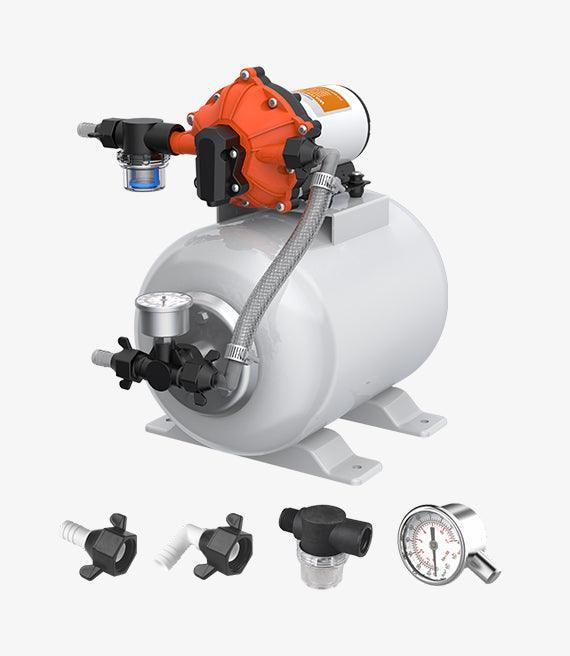

This pre-assembled kit is designed to simplify the installation of a water pressure system for both professional and amateur installers dealing with larger water systems. It includes a pressure pump, pressure gauge, and water strainer pre-mounted on an accumulator tank. The powerful SERIES 51 pressure pump offers 3 flow rate options, with a large capacity 8.0 L Accumulator tank.
The system provides a smoother flow for a quieter water system and can be installed vertically or horizontally. The maintenance-free, potable water quality tank complies with USCG 183.410 standards. The inlet/outlet ports are 1/2" - 14 MNPT, and the system has a weight of 5.4 kg. The shut-off pressure is at 60 PSI/BAR 4.2, and turn-on pressure is at 40 PSI/BAR 2.8. The Seaflo brand system operates at 12V, with a flow rate of 4.0 GPH / 15.0 LPH and a control type switch. It also has priming capabilities of 8.0 L, a max draw of 13.0 A, and a barcode for identification.
Additionally, the fully assembled pressure set simplifies the installation of water pressure systems for both professional and amateur installers. It consists of a 5 chamber diaphragm pump, strainer, and pre-pressurized accumulator tank with quick connect electrical connections on a rubber mounted board. This set is capable of serving 3 or more 1/2" (13mm) outlets.

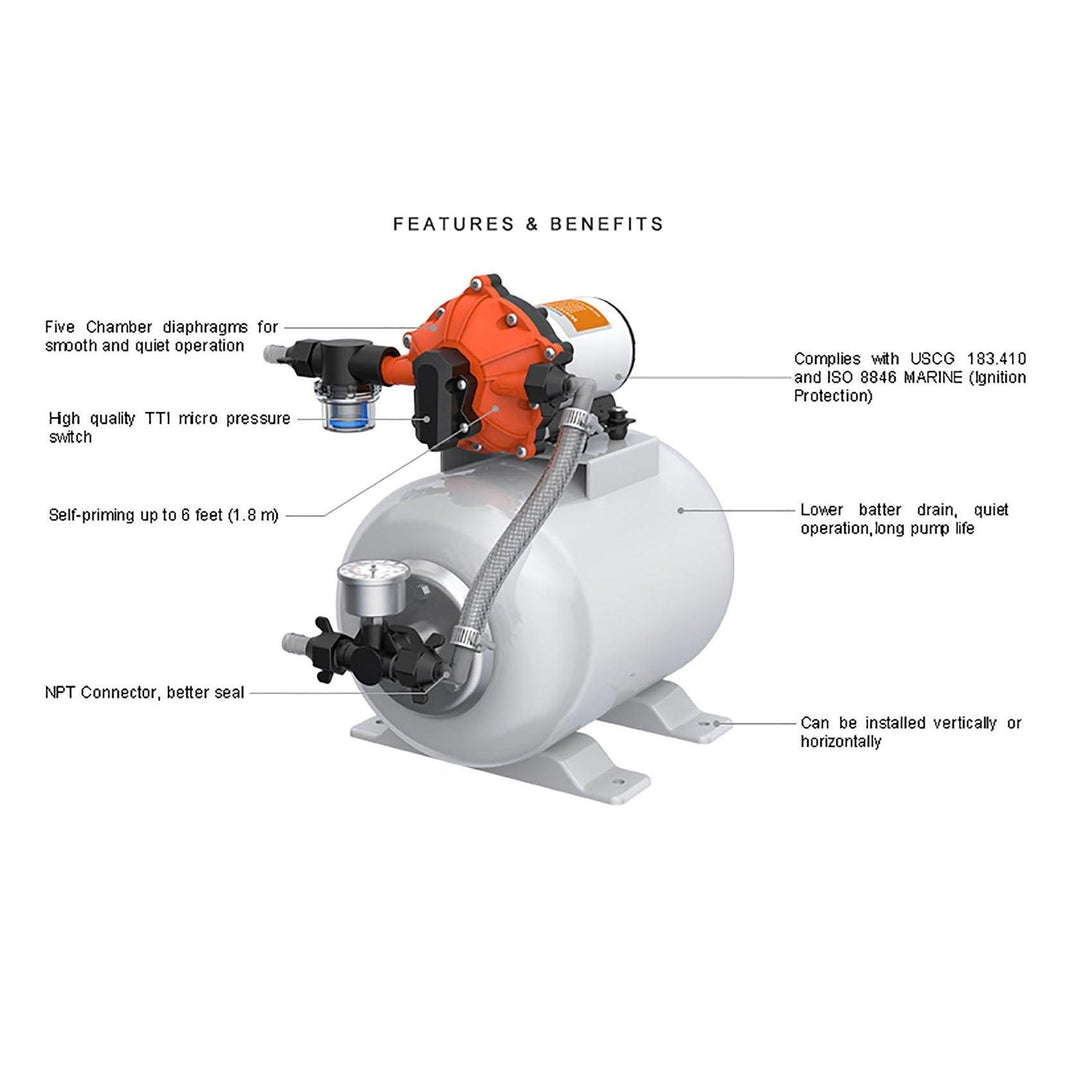

MORE FEATURES & BENEFITS
β’Β Smoother flow, quieter water systems.
β’Β Longer pump life, lower battery drain.
β’Β Self-priming up to 6 feet (1.8 m).
β’Β Five Chamber diaphragms for smooth and quiet operation
β’Β Can be installed vertically or horizontally
β’Β Maintenance free potable water quality accumulator tank
β’Β Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
β’Β 16 AWG, 4.5" long Leads
STANDARD PUMP CONFIGURATIONS
| Model | Tank Volume | Voltage | Open Flow ?GPM/LPM? |
Max Draw |
Pressure On (PSI/BAR) |
PressureΒ Off ?PSI/BAR) |
| SFWSK1-030-060-0021 NEW | 8 L | 12V | 3.0 / 11.3 | 10.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK2-030-060-0021 NEW | 8 L | 24V | 3.0 / 11.3 | 5.5A | 40 / 2.8 | 60 / 4.2 |
| SFWSK1-040-060-0021 NEW | 8 L | 12V | 4.0 / 15.0 | 13.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK2-040-060-0021 NEW | 8 L | 24V | 4.0 / 15.0 | 7.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK1-050-060-0021 NEW | 8 L | 12V | 5.0 / 18.9 | 17.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK2-050-060-0021 NEW | 8 L | 24V | 5.0 / 18.9 | 9.0A | 40 / 2.8 | 60 / 4.2 |
SHIPPINGΒ INFORMATION
|
Unit Weight |
12.02 lbs?5.45 kg? |
|
Selling Unit Size (L x W x H) |
16.61"x 11.30 "x 16.14" ?42.2 x 28.7 x 41 cm? |
|
Selling Unit Weight |
14.33 lbs?6.5 kg? |
|
Master Carton Size (L x W x H) |
16.61"x 11.30 "x 16.14" ?42.2 x 28.7 x 41 cm? |
|
Master Carton Qty |
1 pcs |
|
Master Carton Weight |
14.55 lbs?6.6 kg? |
|
Master Carton Volume |
0.05 mΒ³ |
