SEAFLO Pressure System Luxury Pump Accumulator Pressure Boost System 12V 3.0 gpm 60 psi 8L Tank
WSK10300600021
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 5 items left
Seaflo Luxury Pump Accumulator Pressure Boost System 8 L - 12V
Accumulator Pressure Boost System/Water pressure systems/Water Booster Pump/booster pump system
Voltage: 12V/24V
Open Flow: 3.0-5.0 GPM / 11.3-18.9 LPM
Tank Volume: 8L
Pressure Off: 4.2BAR
Pressure On: 2.8BAR
Inlet/outlet size: 1/2" barb
Material: EPDM (Valves) / Santoprene (Diaphragm)

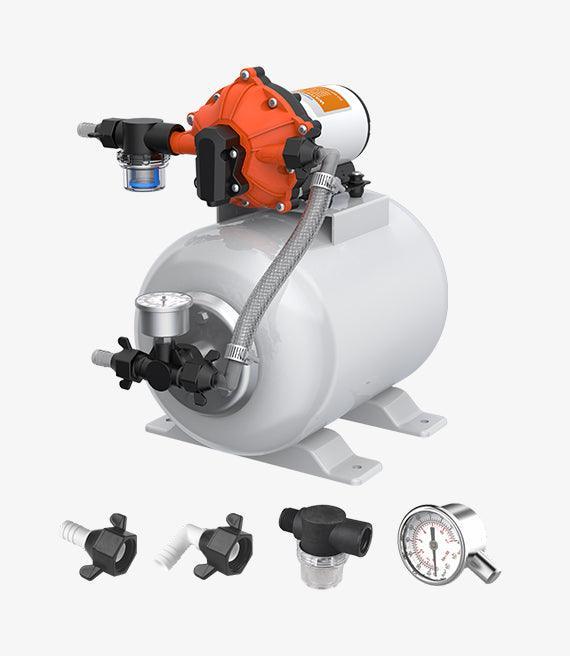

This is a fully assembled pressure set designed to simplify the installation of water pressure systems for both professional and amateur installers. The set includes a 5 chamber diaphragm pump, a strainer, and a pre-pressurized accumulator tank with quick connect electrical connections mounted on a rubber board. It is capable of serving 3 or more 1/2" (13mm) outlets.
MORE FEATURES & BENEFITS
β’Β Smoother flow, quieter water systems.
β’Β Longer pump life, lower battery drain.
β’Β Self-priming up to 6 feet (1.8 m).
β’Β Five Chamber diaphragms for smooth and quiet operation
β’Β Can be installed vertically or horizontally
β’Β Maintenance free potable water quality accumulator tank
β’Β Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
β’Β 16 AWG, 4.5" long Leads
STANDARD PUMP CONFIGURATIONS
| Model | Tank Volume | Voltage | Open Flow ?GPM/LPM? |
Max Draw |
Pressure On (PSI/BAR) |
PressureΒ Off ?PSI/BAR) |
| SFWSK1-030-060-0021 NEW | 8 L | 12V | 3.0 / 11.3 | 10.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK2-030-060-0021 NEW | 8 L | 24V | 3.0 / 11.3 | 5.5A | 40 / 2.8 | 60 / 4.2 |
| SFWSK1-040-060-0021 NEW | 8 L | 12V | 4.0 / 15.0 | 13.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK2-040-060-0021 NEW | 8 L | 24V | 4.0 / 15.0 | 7.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK1-050-060-0021 NEW | 8 L | 12V | 5.0 / 18.9 | 17.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK2-050-060-0021 NEW | 8 L | 24V | 5.0 / 18.9 | 9.0A | 40 / 2.8 | 60 / 4.2 |
SHIPPINGΒ INFORMATION
|
Unit Weight |
12.02 lbs?5.45 kg? |
|
Selling Unit Size (L x W x H) |
16.61"x 11.30 "x 16.14" ?42.2 x 28.7 x 41 cm? |
|
Selling Unit Weight |
14.33 lbs?6.5 kg? |
|
Master Carton Size (L x W x H) |
16.61"x 11.30 "x 16.14" ?42.2 x 28.7 x 41 cm? |
|
Master Carton Qty |
1 pcs |
|
Master Carton Weight |
14.55 lbs?6.6 kg? |
|
Master Carton Volume |
0.05 mΒ³ |
