Seaflo Low Profile Automatic Bilge Pump 12V 800 GPH Boat Marine BP1G80014B
BP1G80014B
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

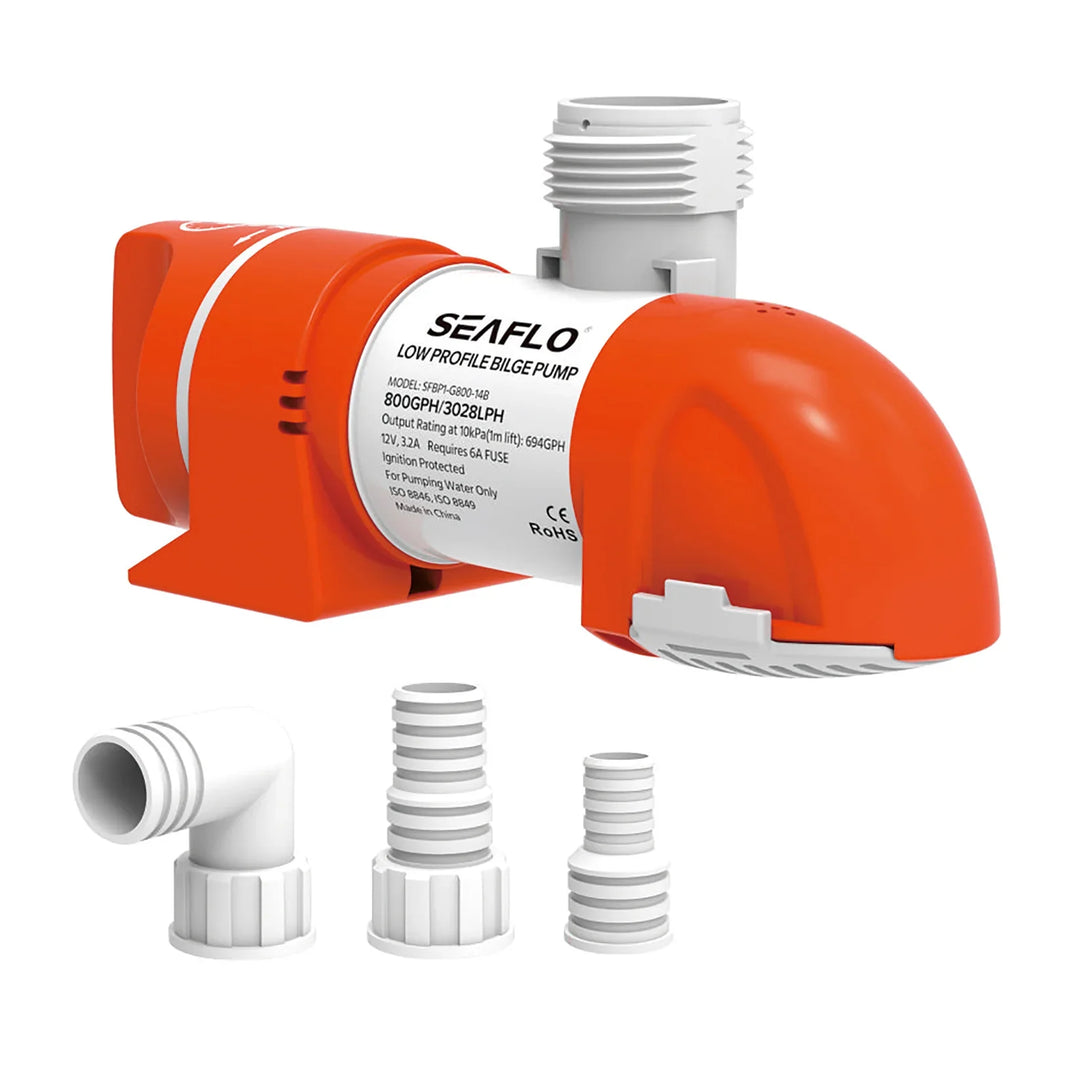

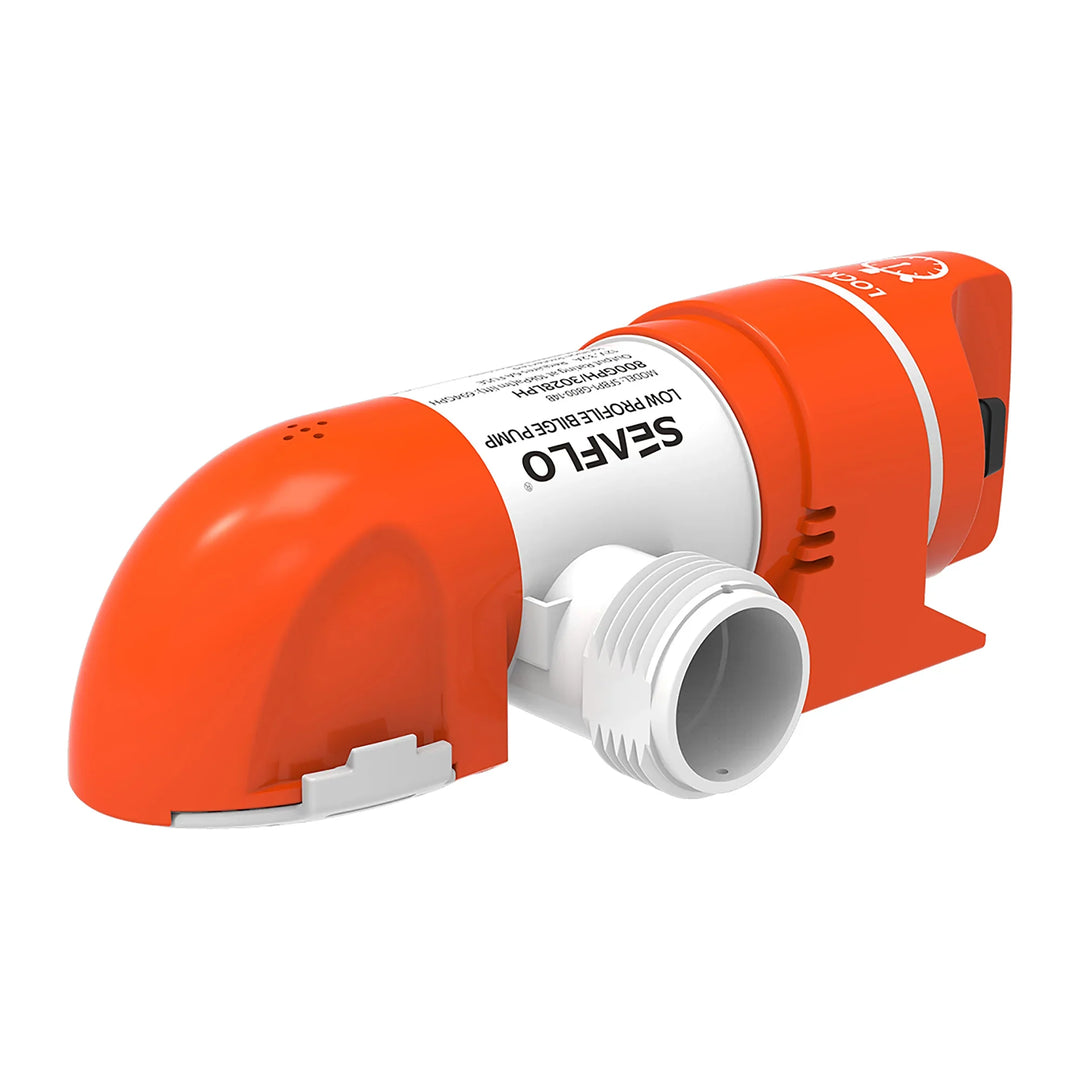

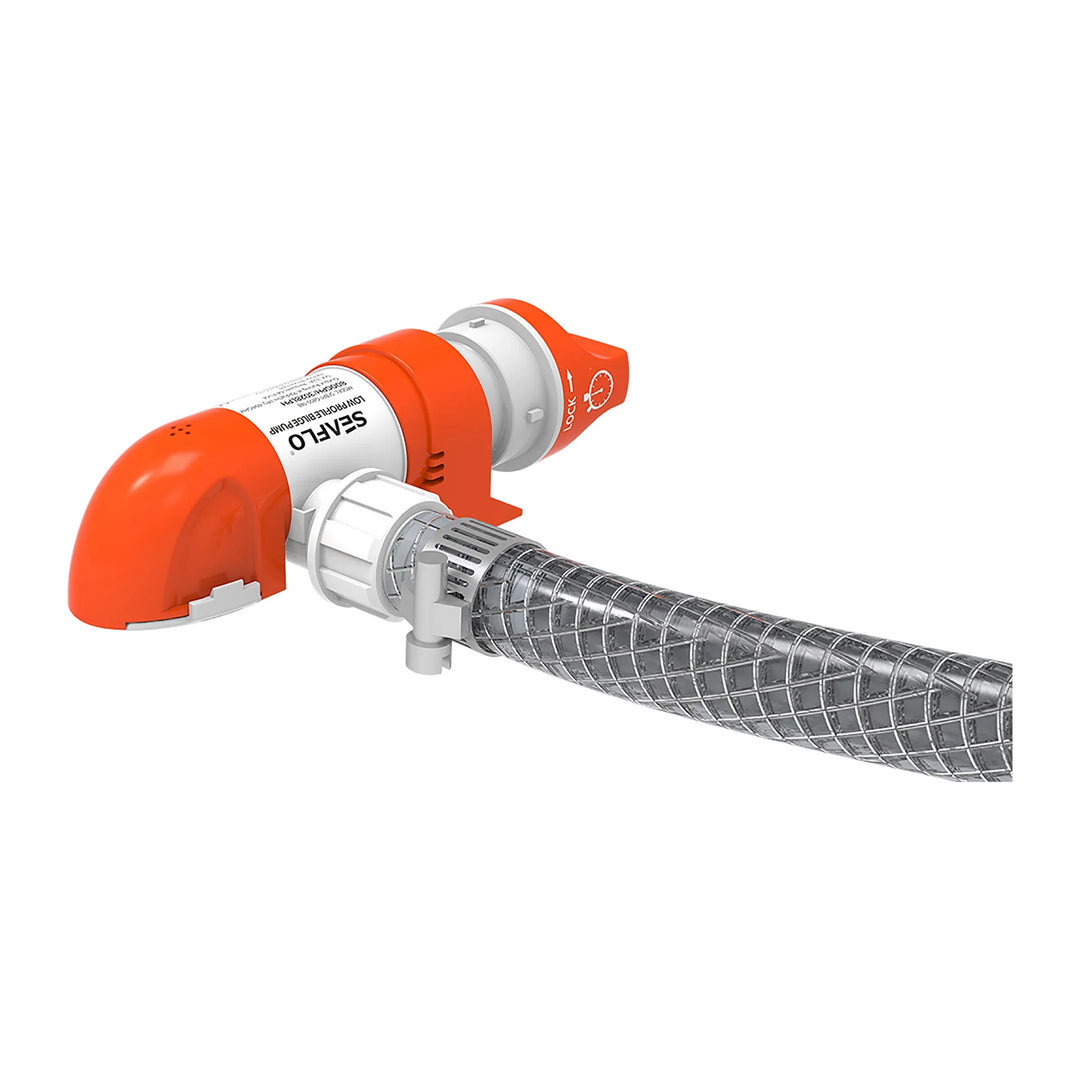

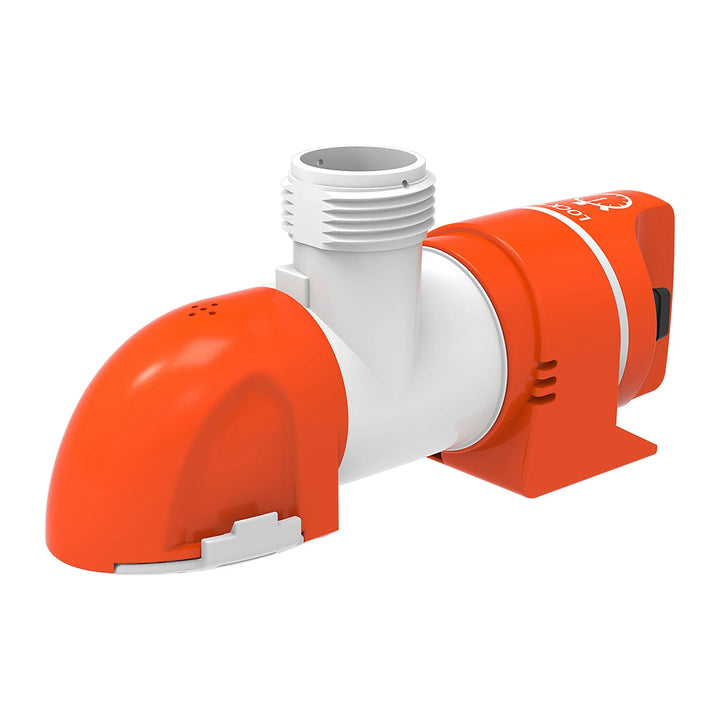

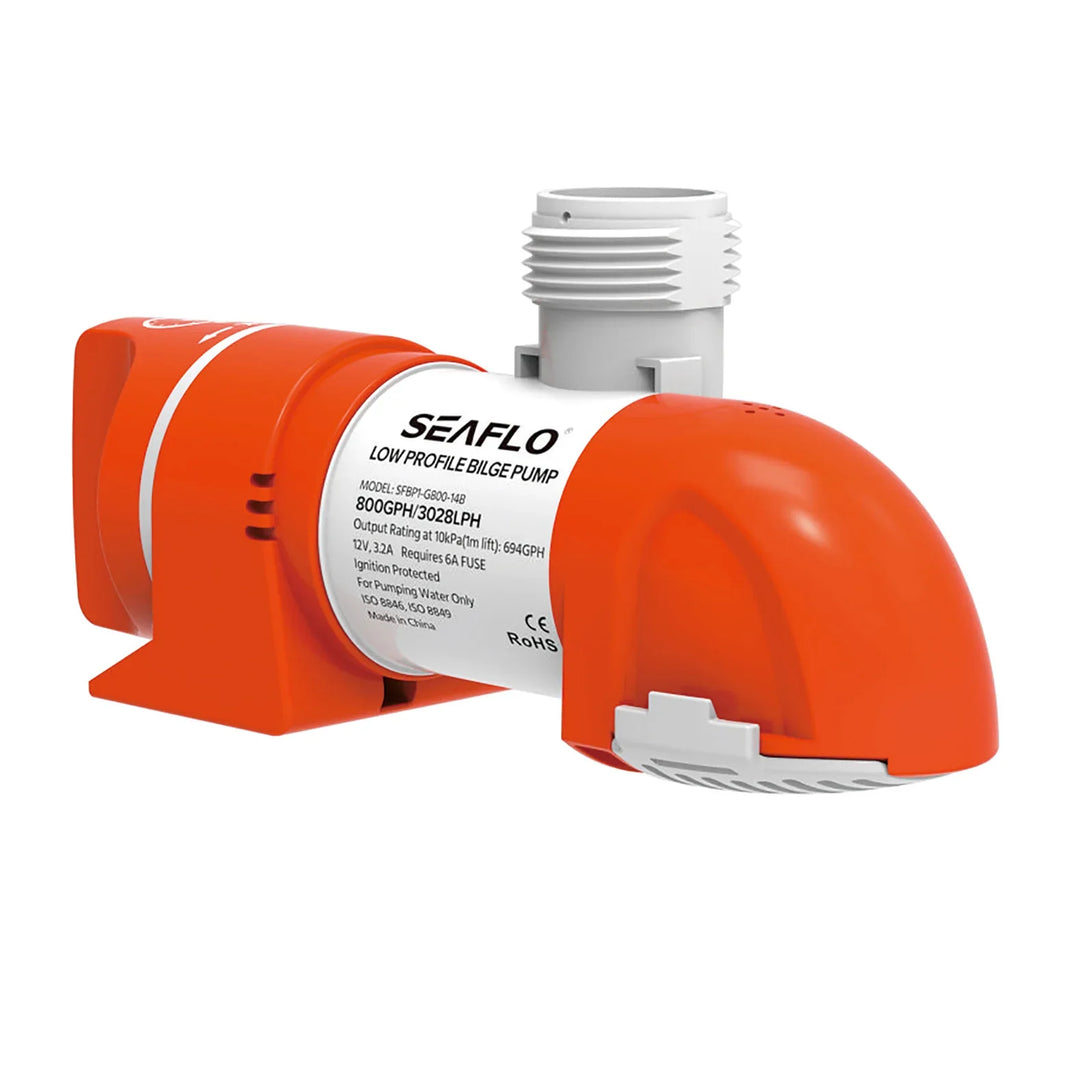

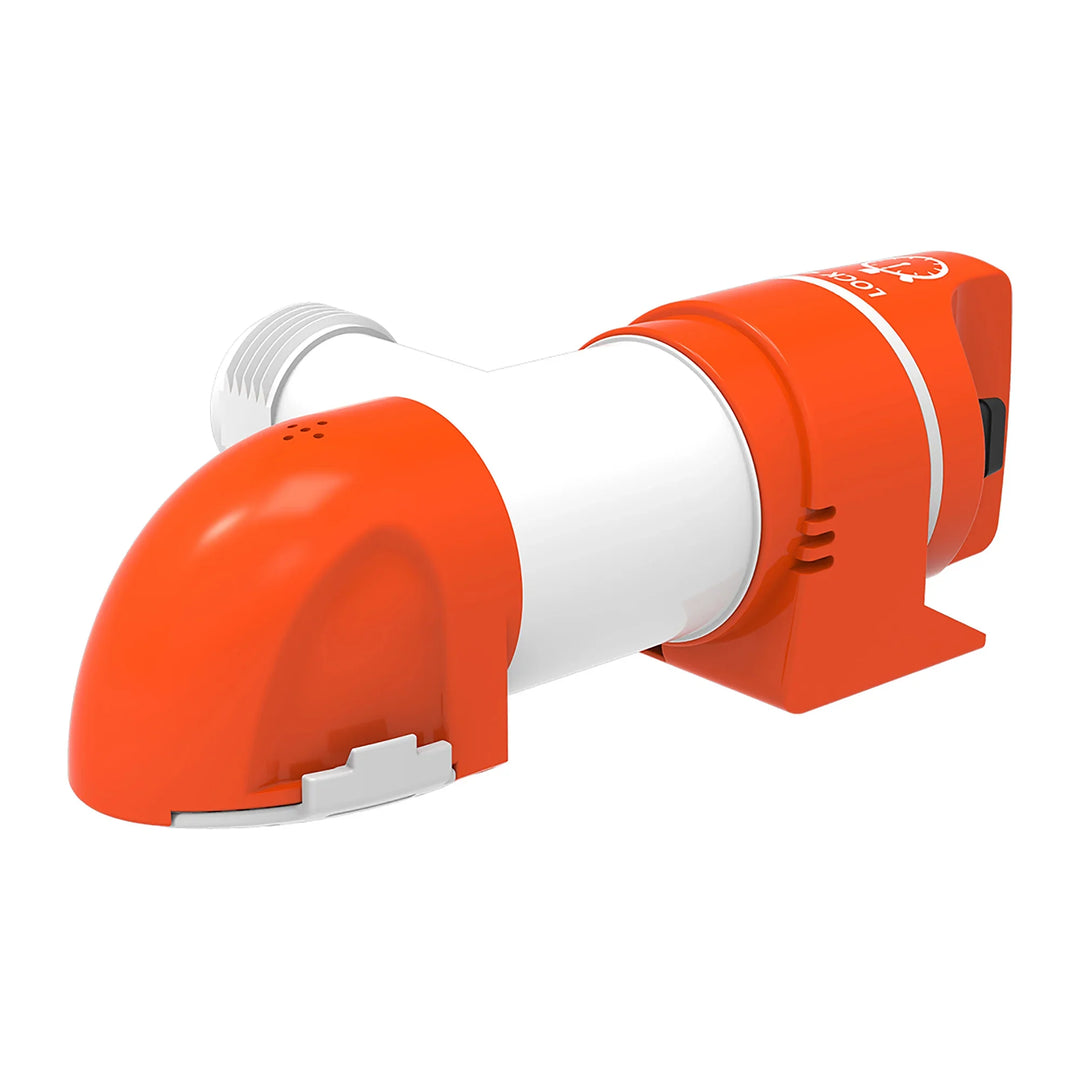

Seaflo Low Profile Automatic Bilge Pump 12V
Model: BP1G80014B | 800 GPH / 3028 LPH
The Seaflo 14B Series offers a revolutionary solution for water management in tight or awkward bilge spaces. This low-profile automatic pump utilizes intelligent timer-sensing technology, eliminating the need for a separate float switch. It is specifically designed to fit deep into narrow areas where standard vertical pumps cannot reach.
Key Features
- β Timer Sensing: No float switch required
- β Low Profile: Ideal for narrow/shallow bilges
- β 360Β° Discharge: Body rotates for easy plumbing
- β Backflow Protection: Integrated non-return valve
- β Submersible: Sealed moisture-tight design
- β Ignition Protected: Safe for gasoline engine bilges
Technical Specs
| Voltage | 12V DC |
| Flow Rate | 800 GPH (3028 LPH) |
| Max Current Draw | 3.2 Amps |
| Fuse Amps | 5.0 Amps |
| Max Head | 3.2m (10.5ft) |
| Outlet Size | 19mm, 25mm, 29mm |
| Wire Lead | 1m (Marine Grade) |
Compatibility / Fitment Guide
| Application | Mounting Options | Notes |
|---|---|---|
| Marine Vessels | Horizontal or Vertical | Ideal for engine bilges and under-floor cavities. |
| Tight Spaces | 360Β° Rotatable Outlet | Can be fitted in small gaps where standard pumps fail. |
OEM Cross Reference
| Seaflo Series | 14B Series (Timer Sensing) |
| Whale Alternative | Supersub Smart 650 / 1100 |
| Rule Alternative | Rule-Mate Series |
| EAN | 6971170932160 |
Questions & Answers
Is this a genuine original part?
This is a premium Seaflo product, manufactured to strict ISO 8846 and ISO 8849 standards for the marine industry.
How do I know if it is compatible?
Check the MPN (BP1G80014B) and flow rate. This pump is a standard replacement for 12V low-profile automatic pumps across most yacht and motorboat brands.
Does it run continuously or drain the battery?
It uses an intelligent timer. It pulses for 0.5 seconds every 2.5 minutes to check for water. If no water is found, it shuts down, resulting in extremely low power consumption.
Note: Please verify your bilge dimensions and hose size before purchasing to ensure optimal fitment on 4boats.co.uk.
