A-Series White single-pole Toggle Circuit Breaker - 30 A | 4Boats
BSS7222
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 6 items left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular priceΒ£32.00
/
Tax included.

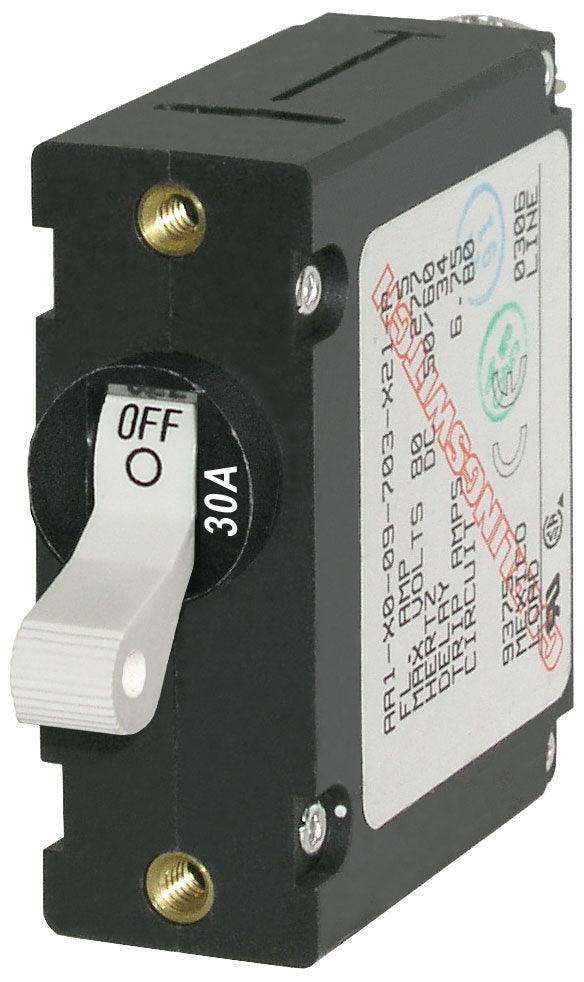

A-Series White single-pole toggle circuit breaker rated 30 A for reliable protection in AC and DC marine and industrial installations.
- Amperage: 30 A AC / 30 A DC
- Poles: 1; Actuator: toggle
- Maximum voltage: 240 V AC / 65 V DC
- Interrupting capacity: 3,000 A @ 120 V AC; 1,500 A @ 240 V AC (TUV); 3,000 A @ 240 V AC (UL 1077); 7,500 A @ 65 V DC
- Type: magnetic-hydraulic, trip-free
- Operating temperature: -40 Β°C to 85 Β°C (-40 Β°F to 185 Β°F)
- Mounting screw: #6-32 stainless steel; terminal screws: #10-32 stainless steel
- Screw torques: mounting 6 in-lb (0.68 Nm); terminal 14 in-lb (1.58 Nm)
- Weight: 0.08 kg (0.17 lb); Switching cycles: 10,000
Panel-mount design with stainless-steel hardware; high interrupting ratings and trip-free operation make it suitable for demanding electrical systems.
