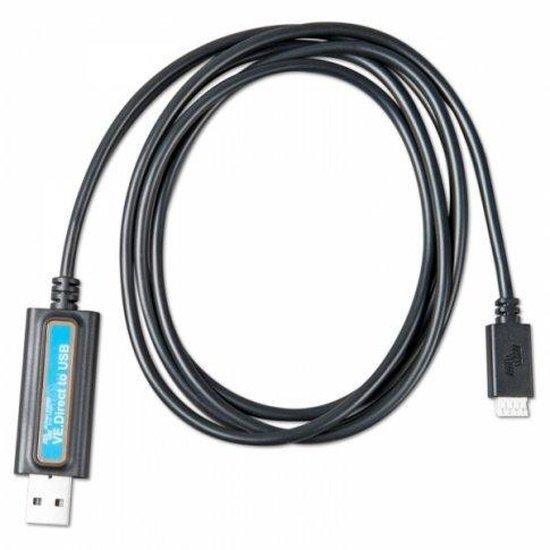

Victron VE.Direct to USB Interface Cable - for monitoring a Victron MPPT solar charge controller / compatible device via PC software

Photonic Universe is an official distributor of products from Victron Energy - the?ÿglobally renowned manufacturer of high quality?ÿhybrid power charging solutions. Victron Energy solar charge controllers and accessories?ÿhave a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

This Victron VE.Direct USB cable connects your Victron?ÿMPPT controller?ÿ(or other compatible Victron product) to your PC or laptop. After downloading the free VictronConnect PC app, you can then?ÿmonitor and program numerous charging parameters for your Victron solar charge controller. Using the?ÿVE.Direct USB cable?ÿalso unlocks exclusive access to?ÿlive status info, detailed data logs and advanced options for system personalisation.

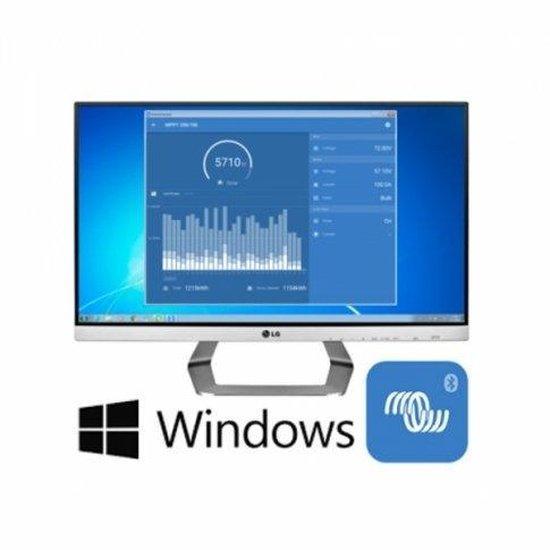

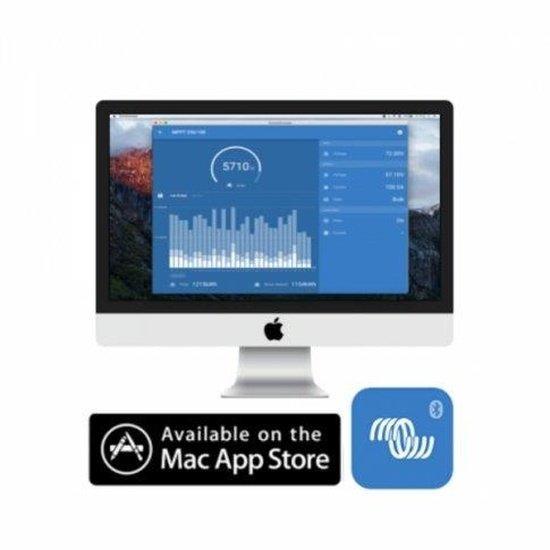

The VictronConnect app can be used on?ÿWindows PCs or Apple MacBooks?ÿand is available to download here.

Compatible Victron products:

This VE.Direct Controller-to-PC USB cable can be used with any Victron?ÿproduct?ÿwith an inbuilt VE.Direct port. Such devices include:

- Victron BlueSolar MPPT charge controllers (e.g ?ÿVBSM75-15?ÿ, VBSM100-30?ÿ, VBSM100-50?ÿ, VBSM150-35?ÿ,VBSM150-45?ÿ, VBSM150-60?ÿor VBSM150-70)
- Victron SmartSolar MPPT charge controllers (e.g. VSSM150-85 , VSSM150-100)
- Victron Battery monitors (e.g. BMV-700?ÿ, BMV-712)
- Victron Phoenix Inverters (e.g. VPX-250)
- Victron Blue Smart chargers (e.g. VBC1215?ÿ,VBC1230)
- Victron Peak Power Packs

Advanced programming and monitoring:

By?ÿconnecting the Victron?ÿVE.Direct USB cable?ÿto your Victron solar charge controller, the controller?ÿwill be?ÿable to communicate with?ÿthe?ÿVictronConnect PC app,?ÿunlocking numerous possibilities for?ÿadvanced programming and remote monitoring of your MPPT solar system. Once the controller is paired with the app,?ÿa wide range of?ÿadditional features are made available, including:

- Live data transmission: Real-time information is displayed including solar panel output, battery voltage and current (flowing into and out of the battery), battery state of charge, load status and consumption.

- Detailed?ÿdata logs: System activity for the past 30 days is available to?ÿview; either as in-depth daily logs or as a monthly summary. These easy-view graphics display daily energy yield, maximum recorded power and voltage, time spent in each charging stage, minimum and maximum recorded battery voltages, error records and total energy counters.

- User-defined battery charging algorithm: Option to disable pre-set?ÿvalues in favour of?ÿpersonalised charging parameters, including user-defined?ÿabsorption voltage, absorption time, float voltage, equalisation voltage and temperature compensation settings.

- Load configuration: Option to choose from one of the pre-set load management programs or create a user-defined program. Includes a streetlight function to control the duration and brightness of nighttime lighting.

- Remote On/Off control: Both the solar charge controller and load can be turned on/off via your computer.

Alternative connection: If you would prefer to monitor your Victron device using a mobile phone or other bluetooth enabled device, the Victron VE Direct Bluetooth Dongle can be used to connect your phone and Victron device via Bluetooth.

Click on the Details and Specifications tab for more information about this product.

Specifications:

• Compatible with Victron devices with a VE.Direct port, including:
  • Victron BlueSolar MPPT charge controllers (such as VBSM75-15, VBSM100-30?ÿ, VBSM100-50?ÿ, VBSM150-35?ÿ, VBSM150-45?ÿ, VBSM150-60?ÿor VBSM150-70)
  • Victron SmartSolar MPPT charge controllers (e.g. VSSM150-85 , VSSM150-100)
  • Victron Battery monitors (e.g. BMV-700?ÿ, BMV-712)
  • Victron Phoenix Inverters (e.g. VPX-250)
  • Victron Blue Smart chargers (e.g. VBC1215?ÿ,VBC1230)
  • Victron Peak Power Packs
• Compatible with?ÿPCs running on Windows (Windows 7, Windows 8, Windows 10) or macOS X (Earliest supported version is 10.10 - OS X Yosemite).
• Cable length: 0.9m
• Weight: 25g

This product is covered by a?ÿ5 year warranty. For more information please refer to our Terms and Conditions.

The VictronConnect app must be installed on your computer, and can be downloaded for free for Windows?ÿor macOS X.

A user manual for the app is available to download in the Documents tab.

If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone?ÿ

The following documents are available to download:

User manual for VictronConnect App
