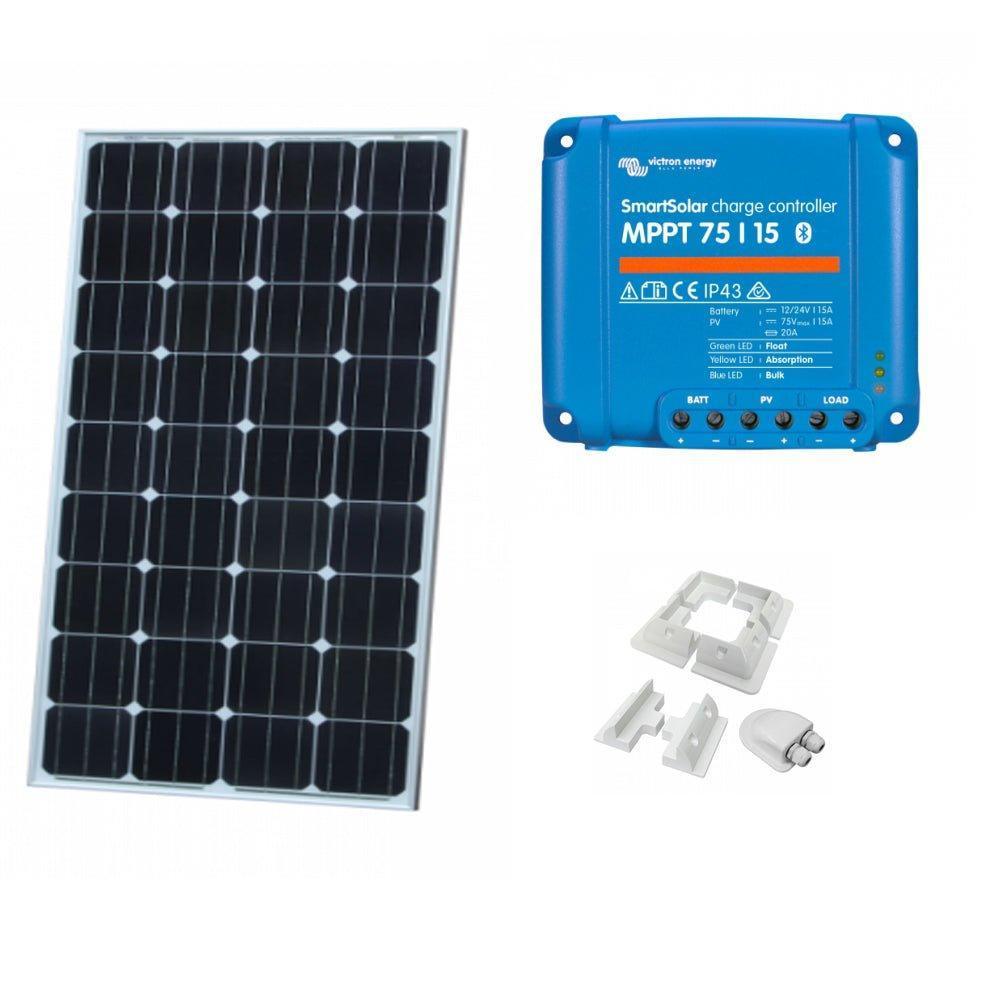

Victron 160w Mono Rigid Solar Panel Kit with SmartSolar MPPT, Mounts,5m Cables

Victron 160w Mono Rigid Solar Panel Kit with SmartSolar MPPT, Mounts,5m Cables

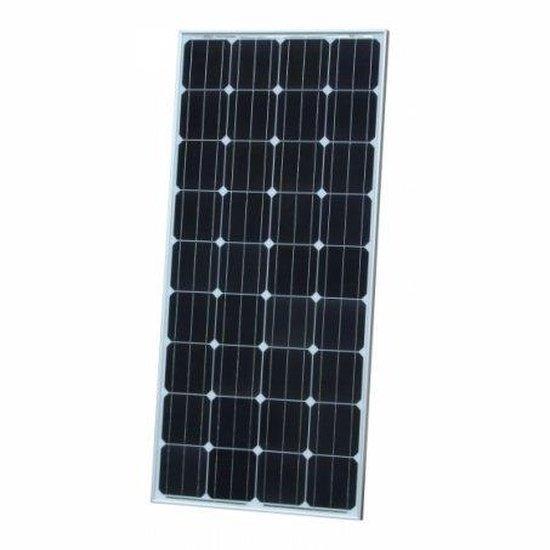

This waterproof, affordable,?ÿhigh-efficiency 160W monocrystalline solar panel?ÿis perfect for permanent outdoor use to provide free electricity to charge a 12V battery?ÿto power hundreds of devices and electrical appliances.

The long-lasting monocrystalline solar cells and the tough, sealed, aluminium frame will provide years and years of consistent, free power. The waterproof design ensures that?ÿthe panel can be used in?ÿall weather conditions.

The panel comes with?ÿ5m of special solar cable?ÿwhich can operate at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of the cable for easy connection to other solar panels, extension leads or your existing system (MC4 connectors can also be cut off when wiring to screw terminals of a solar charge controller).

Each individual solar panel is thoroughly tested to the highest quality standards and labeled with a unique serial number for further quality control and increased warranty protection.

Several of these panels may be connected in parallel or series to generate extra power for your needs.

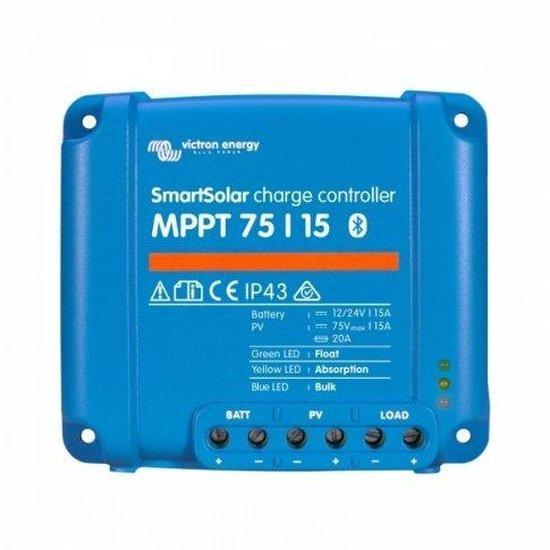

VICTRON SMARTSOLAR MPPT 75/15 15A SOLAR CHARGE CONTROLLER FOR SOLAR PANELS UP TO 220W (12V) / 440W (24V) UP TO 75V (BLUETOOTH INBUILT)

This?ÿVictron 75V 15A MPPT?ÿcontroller?ÿcomes?ÿfrom the intelligent?ÿSmartSolar?ÿrange, which uses the latest ultrafast MPPT technology to?ÿmaximise energy harvest whilst maintaining optimal battery health. This SmartSolar MPPT controller uniquely features?ÿbuilt-in Bluetooth, to allow remote system monitoring via any Bluetooth enabled device,?ÿin addition to an intelligent BatteryLife function?ÿ.

Ultrafast MPPT Technology:

This 15A MPPT solar charge controller is designed to deliver the highest possible energy yield in the shortest amount of time.?ÿThis is achieved?ÿthrough the use of high speed Maximum Power Point Tracking technology, which?ÿtracks the maximum power voltage point of the solar panels as it varies depending on sunlight exposure and temperature.?ÿ

This?ÿtechnology enables the controller to produce?ÿup to?ÿ30% greater energy yield than PWM controllers and as much as 10% more power than slower MPPT controllers. This advanced technology?ÿallows the controller to?ÿperform extremely well?ÿin low-light or cloudy conditions, as the controller consistently strives to extract?ÿthe maximum?ÿavailable power from the solar array.

Inbuilt safety protection:

Fully equipped with an extensive range of safety features, this controller?ÿoffers complete?ÿprotection against potential hazards such as battery reverse polarity, load short circuit, low-voltage load disconnect and battery overheating -?ÿmonitored via the internal temperature sensor. The controller also has self-diagnostic capability?ÿand highlights?ÿany system errors using sophisticated fault-targeting technology.?ÿThese?ÿare signalled via the high intensity LED indicators.?ÿ?ÿ

Intelligent 'BatteryLife' function:

To prevent complete discharge of the battery?ÿand avoid potentially permanent damage,?ÿthis controller is equipped with the Victron?ÿBatteryLife?ÿfunction; a state-of-the-art feature designed to extend the lifetime of the battery by monitoring and controlling the output of?ÿexcessive loads. Using an intelligent algorithm, the controller will continuously monitor the battery state of charge, and if required (e.g. during periods of poor weather), will?ÿgradually adjust the load disconnect threshold until a full 100% recharge is consistently achieved on a?ÿweekly basis. Alternatively, the load voltage disconnect point can be?ÿmanually configured to your preferred level, using the VictronConnect software (see below).

Inbuilt Bluetooth:

This SmartSolar?ÿcharge controller features?ÿbuilt-in?ÿBluetooth?ÿwhich allows the user to easily connect to any Bluetooth enabled device, such as a mobile phone, tablet or?ÿiPad?ÿin order to access?ÿthe?ÿVictronConnect App?ÿ(no additional Bluetooth dongle required).?ÿThe?ÿmobile app unlocks?ÿnumerous possibilities for?ÿadvanced programming and remote monitoring of your Victron SmartSolar system. Once the controller is paired with the app,?ÿa wide range of?ÿadditional features are made available, including:

Live data transmission:?ÿReal-time information is displayed including solar panel output, battery voltage and current (flowing into and out of the battery) as well as battery state of charge.

Detailed?ÿdata logs:?ÿSystem activity for the past 30 days is available to?ÿview; either as in-depth daily logs or as a monthly summary. These easy-view graphics display daily energy yield, maximum recorded power and voltage, time spent in each charging stage, minimum and maximum recorded battery voltages, error records and total energy counters.

Load configuration:?ÿOption to choose from one of the pre-set load management programs or create a user-defined program. Includes a streetlight function to control the duration and brightness of nighttime lighting.

The?ÿVictronConnect App?ÿis?ÿalso available to download?ÿas a?ÿPC version,?ÿfor computers without bluetooth connectivity. If you would like to?ÿuse?ÿthe PC version of the app to monitor/program your SmartSolar system, this controller can be connected to your PC via a?ÿVE Direct USB cable.

Optional Remote LCD Display:

The user can connect an optional?ÿMPPT Control panel?ÿ(sold separately) to the controller to access a range of monitoring and programming functions. The display shows charging parameters (voltage, current,?ÿpower) for the solar panel, battery and load, as well as 30 day?ÿperformance data. The user can also adjust the load settings and?ÿspecifically set the duration and voltage of each charging stage.?ÿ?ÿ

Other features:

The Victron SmartSolar MPPT?ÿ75/15 model is ideal for a wide range of applications as it is resistant to extreme temperatures, high altitudes, dusty environments and marine environments. The unit enclosure is?ÿIP43 water resistant?ÿwith resin encapsulation of the internal electrical components and has a?ÿPD3?ÿpollution rating.

This solar charge controller is also compatible with a wide range of battery types, including?ÿAGM, Gel,?ÿTubular plate?ÿand?ÿLithium batteries.

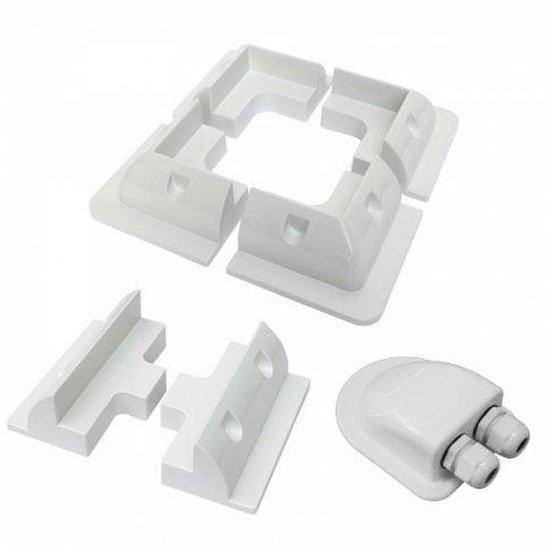

This is a solar panel mounting set?ÿfor fixing solar panels to vehicles, boats and other flat roofs and surfaces.

The set includes:

• 4 plastic corner brackets
• 2 side brackets
• A waterproof double entry cable gland?ÿ
