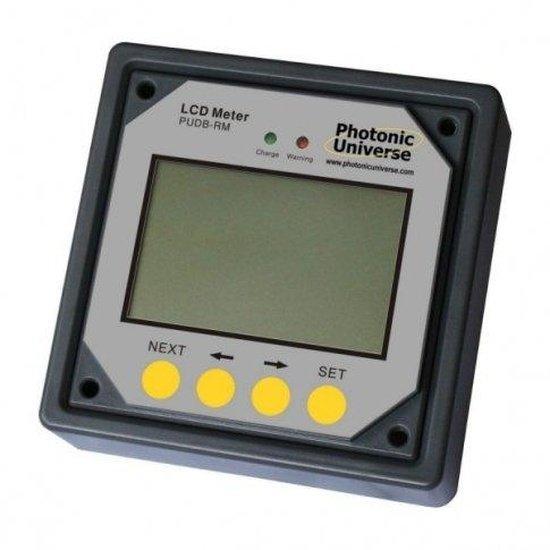

Remote meter / display for 10A and 20A dual battery solar charge controllers

PUDB-RM

  • Dispatched in 2-3 days
  • 30 Day Return Policy
  • In stock, ready to ship
  • Backordered, shipping soon
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

Regular price£39.99
/
Tax included.

This high quality, dual battery remote display / meter is suitable for the Photonic Universe 10A dual battery solar charge controller or 20A dual battery solar charge controller?ÿfor 12/24V solar systems with two batteries. The unit is ideal for remote system monitoring as it allows full control over the charging process.

This remote meter?ÿdisplays the following charging parameters:

  • Battery voltage
  • Solar panel voltage
  • Solar panel current (including maximum recorded current)
  • Battery state of charge
  • Accumulated battery capacity
  • Minimum and maximum voltages for each?ÿbattery
  • Split of charge ratio for each battery
  • Charging frequency (frequency of charging pulses)

The unit can also display:

  • Temperature (either measured by the inbuilt temperature sensor on the solar charge controller, or by an optional external temperature sensor )
  • Time

If you already have one of our dual battery solar controllers, this remote meter can easily be added at?ÿany time?ÿto your system - simply?ÿconnect the cable supplied with the meter to the RJ45 socket of the controller.

Charging parameters can either be displayed on an automatic 3 second rotation, or?ÿthe unit can be programmed to?ÿdisplay only the chosen set of data.

The?ÿfour buttons on the front panel allow?ÿfor easy transition between data sets.

Click on the Details and Specifcations tab for more information

Specifications:

  • Suitable for 10A or 20A dual battery solar charge controllers (DB1024 and DB2024 series)
  • Rated voltage: 12V
  • Self-consumption: 17-23mA
  • Operating temperature: -40C to +60C
  • LCD operating temperature: -10C to +40C
  • Humidity: 0-100%
  • Communication cable: RJ45 (8pin) 10 meters included
  • Wall mounting board with mounting holes included
  • Size: 11 x 11 x 4 cm
  • Weight: 150 g (without cable)

Installation:

This unit comes with a detailed user manual which explains installation and operations (see Documents tab).
