REMOTE IR PROGRAMMER FOR LUX SERIES WATERPROOF MPPT SOLAR CHARGE CONTROLLERS AND ARF SERIES LIGHTWEIGHT FOLDING SOLAR KITS

REMOTE IR PROGRAMMER FOR LUX SERIES WATERPROOF MPPT SOLAR CHARGE CONTROLLERS AND ARF SERIES LIGHTWEIGHT FOLDING SOLAR KITS

MPPT CONTROLLERS?ÿ

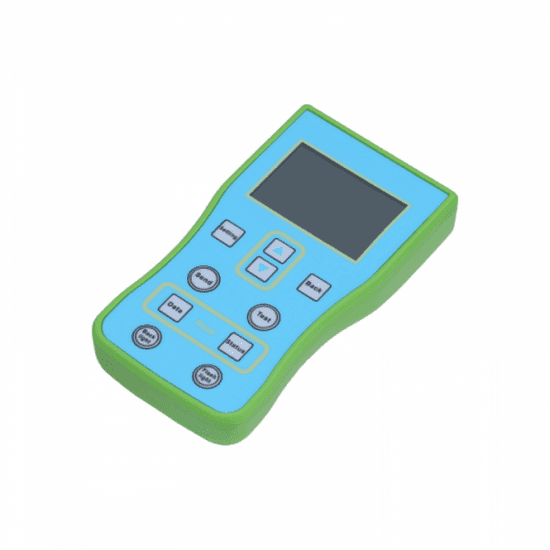

This high-quality?ÿIR remote programmer?ÿallows quick and easy viewing of the running data, for LUX series waterproof MPPT solar controllers and ARF series lightweight folding solar kits, including battery charge estimation, solar voltage, current, total energy generated and more at the push of a button. The programmer can also customise charging, and program load timers and dimmers - all with no wired connection needed.

The?ÿlarge LCD display with backlight?ÿand easy-to-use buttons make using this programmer simple and straightforward. The built-in emergency light assists with using the programmer safely at night, and the device will automatically go into sleep mode after a period of inactivity to preserve the battery life.

LUX solar controllers include a?ÿ5-stage load timer with a dimmer function?ÿwhich can be set up using this remote. The load output of the controller can use up to 5 adjustable timeslots triggered after sunset which can each provide between 0-100% of the power for use with dimmable DC appliances, ideal for after-dark lighting systems.

This remote programmer is compatible with the following models of MPPT controllers and folding solar kits:

-?ÿLUX1012WP
-?ÿLUX1012WP-LI
-?ÿLUX1524WP
-?ÿLUX1524WP-LI
-?ÿARF-FWP-80M
-?ÿARF-FWP-100M
-?ÿARF-FWP-120M

Specifications:

• Batteries: 2x AA (not included)
• Self-consumption: 6mA (on), 20mA (transmitting), 6uA (sleep), 15mA (light), 7mA (backlight)
• Max range: 8m
• Size: 120 x 65 x 20 mm
• Weight: 92 g (excluding batteries)

Please note:?ÿ
- This unit is only suitable for LUX series waterproof MPPT solar charge controllers.

If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone.

You can download the following documents for this product:

User manual for LUX-PRG remote IR programmer for LUX series waterproof MPPT solar charge controllers
