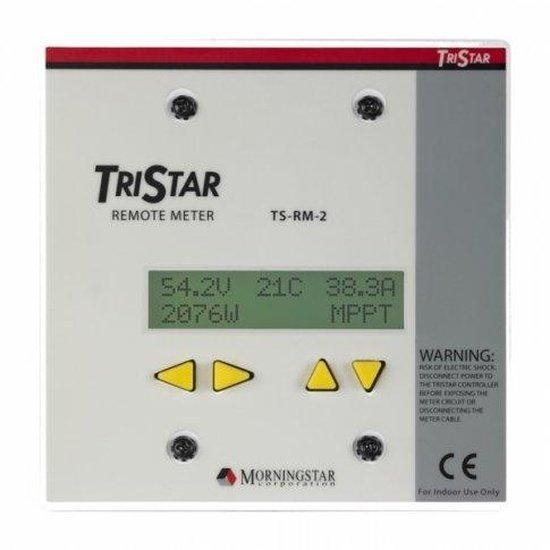

Morningstar TriStar remote LCD digital meter, for all TriStar solar charge controllers
TS-RM-2
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
- Backordered, shipping soon
As an official distribution partner of Morningstar products across the globe, we are proud to offer solar charge controllers and accessories?ÿfrom this world-leading supplier. Innovative design from years of dedicated research and superior build quality enable these top-of-the-range solar charge controllers to extend battery capacity and life, maximise energy production, and consistently achieve high performance standards.
This high quality advanced digital remote meter is suitable?ÿfor all?ÿMorningstar?ÿTriStar series of?ÿsolar charge controller (TS-series, TS-MPPT series and TS-MPPT-60-600V series - see Specifications tab for more details).
It is?ÿperfect for caravans, motorhomes, boats or other systems that have inaccessible?ÿbatteries and require remote monitoring and viewing of?ÿtheir solar power system, as?ÿthe remote meter comes with 30m of cable that simply plugs into the RJ-11 port on your TriStar controller. This remote meter can be purchased with any TriStar controller, or added as an upgrade at anytime.
Other key features?ÿinclude:
- Extremely high reliability, with a long 5 year warranty
- Easy to install and use, with only four directional pushbuttons for smooth navigation through the display screens
- Backlit LCD display that can show individual controller data, or aggregate system data with upto 15?ÿTriStar controllers (controllers must be linked through a Morningstar MeterHub sold separately)
- Multi-language option with information shown in English, French, German, Portuguese or Spanish.
The remote meter can display various charging parameters such as battery voltages, charge priority, state of charge of batteries etc. The large numerical display and buttons allow easy navigation through the meter menus and a quick point of reference for your solar power system.
Click on the?ÿDetails and Specifications tab for more information about this product.
Specifications:
- Suitable for all TriStar controllers:?ÿ
- TS-series (TS-45, TS-60 )
- TS-MPPT series (TS-MPPT-30 ,TS-MPPT-45 , TS-MPPT-60 )
- TS-MPPT-60-600V series (TS-MPPT-60-600V-48 ,TS-MPPT-60-600V-48-DB-TR )?ÿ
- Self-consumption: < 0.5W (42.5 mA with backlight on)
- Operating temperature: -40C to +60C
- RJ-11 (6pin)?ÿconnection point and 30m cable
- Wall mounting?ÿplate with mounting holes included
- Size: 116 x 116 mm
- Weight: 180 g (without cable)
This product is covered by a?ÿ5 year manufacturer?ÿwarranty.?ÿ
This product is supplied with a detailed?ÿinstruction manual (see the 'Documents' tab)?ÿwhich explains connections and operations.
If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone.
The following documents are available to download:
Data sheet for TS-RM-2 Morningstar TriStar LCD remote meter
Instruction manual for TS-RM-2 Morningstar TriStar LCD remote meter
