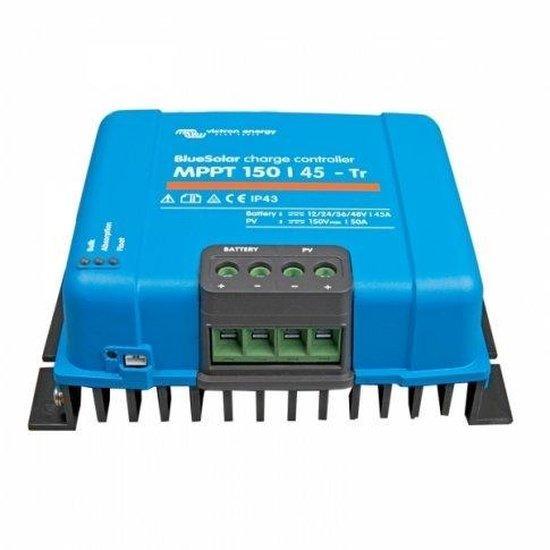

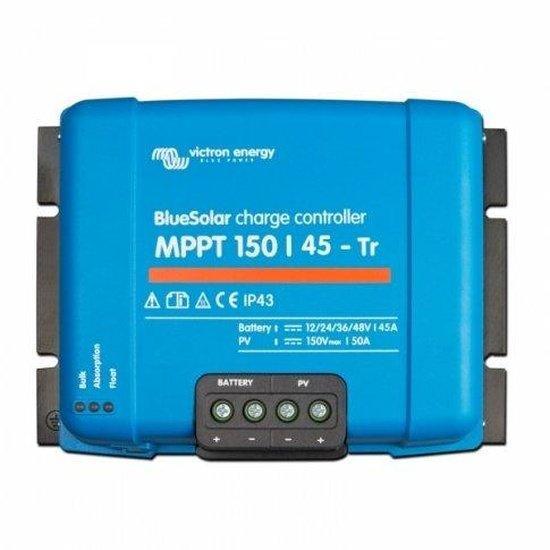

Victron BlueSolar MPPT 150/45 45A Solar Charge Controller | 4Boats
VBSM150-45
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price
Β£469.00
Sale priceΒ£459.99
Save Β£9.01
/
Tax included.
Reliable, highβspeed MPPT charge control for marine, caravan and offβgrid systems; advanced monitoring and configurable charging to protect battery life.
- Ultrafast MPPT Technology: 45 A MPPT designed to deliver the highest possible energy yield and support system monitoring for optimum array performance.
- Inbuilt safety protection: protects against PV short circuit, PV reverse polarity, PV reverse current, battery reverse polarity and battery overheating via internal temperature sensor; selfβdiagnostic and LED fault indicators.
- Advanced programming and monitoring: connect the optional MPPT Control panel (sold separately) or VE.Direct accessories for remote configuration and monitoring.
- Live data transmission: realβtime display of solar panel voltage, current and power; data logs: system activity for the past 30 days available to view.
- Userβdefined battery charging algorithm: option to disable preset values in favour of personalised charging parameters for various battery chemistries.
- Efficiency and ratings: highest MPPT efficiency (>95%); max solar panel voltage 150 V; max solar panel power 600 W (12 V) / 1300 W (24 V) / 1950 W (36 V) / 2600 W (48 V).
- Electrical & mechanical: cable connection area up to 35 mmΒ² (approx. 2 AWG); selfβconsumption <35 mA (12 V) / <20 mA (24 V); dimensions 185 x 250 x 95 mm (7.3 x 9.8 x 3.7 in); mounting dimensions 225 x 81 mm (8.9 x 3.2 in); weight 3 kg (6.6 lb); 4 x mounting holes (8 mm diameter).
- Environmental & communications: communication port RS232 / TTL for VE.Direct accessories; working temperature β30Β°C to +60Β°C (β22Β°F to +140Β°F); IEC/EN certified; enclosure IP43 (electronic components); Pollution Degree PD3; user manual (VBSM150β45) and product data available to download.
Compatible with Victron BlueSolar accessories and VE.Directβenabled software for Windows PCs/laptops. Installation should be carried out by a qualified technician and batteries must be configured to the correct chemistry and voltage range.
