Navico Outboard Pilot Cable Steer Pack – Autopilot System for Boats

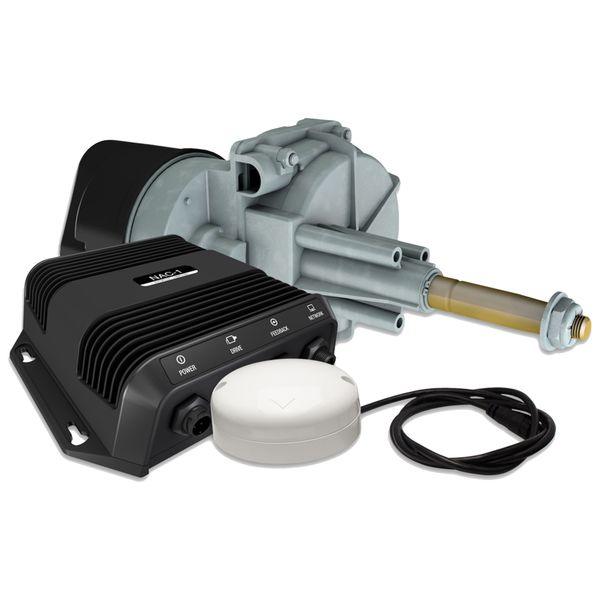

Navico Outboard Pilot Cable Steer Pack

Take full control of your navigation with the Navico Outboard Pilot Cable Steer Pack, a complete autopilot system designed specifically for boats up to 30 feet with a single cable-steered outboard motor. Engineered for easy integration with Simrad multifunction displays, this kit includes everything required for a DIY-friendly installation and delivers advanced autopilot features with seamless control.

Key Features:

• Complete System – Includes everything needed to install an autopilot on a cable steer outboard
• Simrad Compatible – Intuitive autopilot control via Simrad MFDs
• Advanced Navigation – Supports turn patterns, route following, and Depth Contour Tracking
• Compact & Efficient – Designed for boats under 9m (30ft)
• Straightforward Setup – Plug-and-play installation with clear step-by-step guidance
• No Complex Wiring – Micro-C NMEA 2000 connectors with no terminal block fuss

What’s Included:

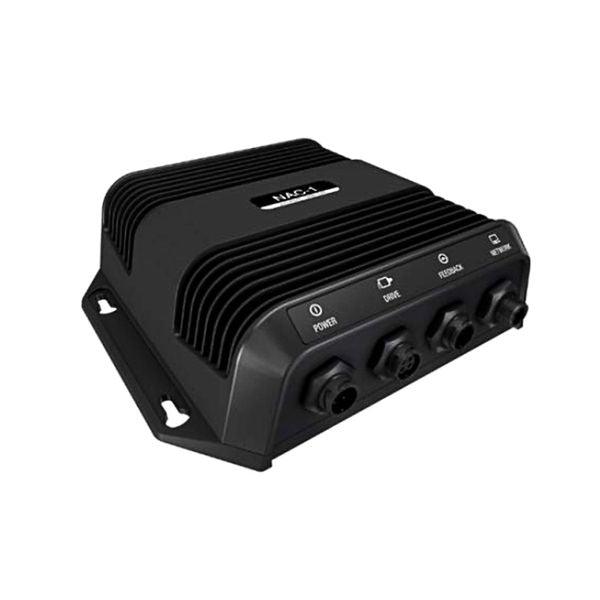

• NAC-1 Autopilot Computer (000-11769-001)
• HELM-1 Cable Steer Drive Unit (000-11771-001)
• Point-1 GPS/Heading Sensor Antenna (000-12930-001)
• Micro-C Power Cable (000-12202-001)
• Auto-Standby Button (Metal) (000-13703-001)
• N2KEXT-15RD 15ft Network Extension Cable (000-0119-86)
• NMEA 2000EXT-2RD 2ft Extension Cable (000-0119-88)
• NMEA 2000 6ft Extension Cable (000-0127-53)
• TR-120-KIT Network Terminator Kit (000-0127-52)
• NMEA 2000 Micro-C 4-Way Block (000-10996-001)
• N2K Micro-C 4-Way Block (22AWG) (000-12612-001)

Specifications:

• Brand: Navico
• Voltage: 12V DC
• Application: Cable-steer outboard engines on boats up to 9m (30ft)
• Compatibility: Simrad MFDs (GO, NSS, NSX series)
• Install Style: DIY, plug-and-play
