Stainless Steel Chafe Strip – Mirror‑polished AISI 304 | 4Boats

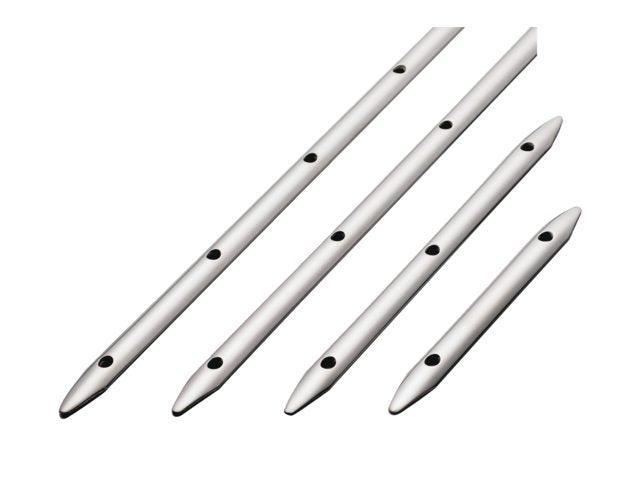

Stainless Steel chafe strip manufactured in AISI 304 with a mirror‑polished finish to reduce friction and resist corrosion. Flattened, rounded tips reduce chafe and help guide lines cleanly over fittings. Designed to protect rope and synthetic lines where they run across deck hardware.

• Material: AISI 304 stainless steel
• Finish: Mirror‑polished for low friction and easy cleaning
• Tip design: Flattened, rounded tips to reduce wear and chafe
• Function: Protects lines from abrasion where they run over fittings and guiding points
• Profile: Smooth, low‑friction profile minimises wear on rope and synthetic lines
• Maintenance: Low‑maintenance stainless finish — easy to inspect and clean
• Compatibility: Suitable for sheets, halyards, dock lines and common deck fittings

Specifications:

• Available lengths (typical): 100 mm, 200 mm, 300 mm (custom lengths may be available)
• Width: 20 mm (standard)
• Thickness: 2.5 mm (sturdy wear plate for light‑to‑medium loads)
• Fixings: 2 holes for short lengths (≈50 mm centres), 4 holes for longer lengths (≈50 mm spacing); countersunk or flat options can be supplied
• Recommended fasteners: A2/A4 stainless steel screws or rivets (e.g. M4 / #8 stainless screws); use matching grade fasteners for marine environments where required
• Approximate weight: 40 g (100 mm) to 120 g (300 mm), depending on length and hole pattern

Installation notes:

• Mark the mounting location and check clearances before drilling.
• Drill pilot holes sized for the chosen fasteners and use countersunk holes if a flush finish is desired.
• Use stainless fasteners and consider a small bead of marine sealant under the strip for deck installations to prevent water ingress.
• For high‑load or critical fittings, fit with backing plates or rivet assemblies as appropriate.

Care: rinse with fresh water after use in saltwater and wipe dry; use a mild detergent for stubborn grime. Compatible with most synthetic and natural lines. Regular inspection is recommended to ensure fasteners remain secure and the strip is free of sharp edges.
