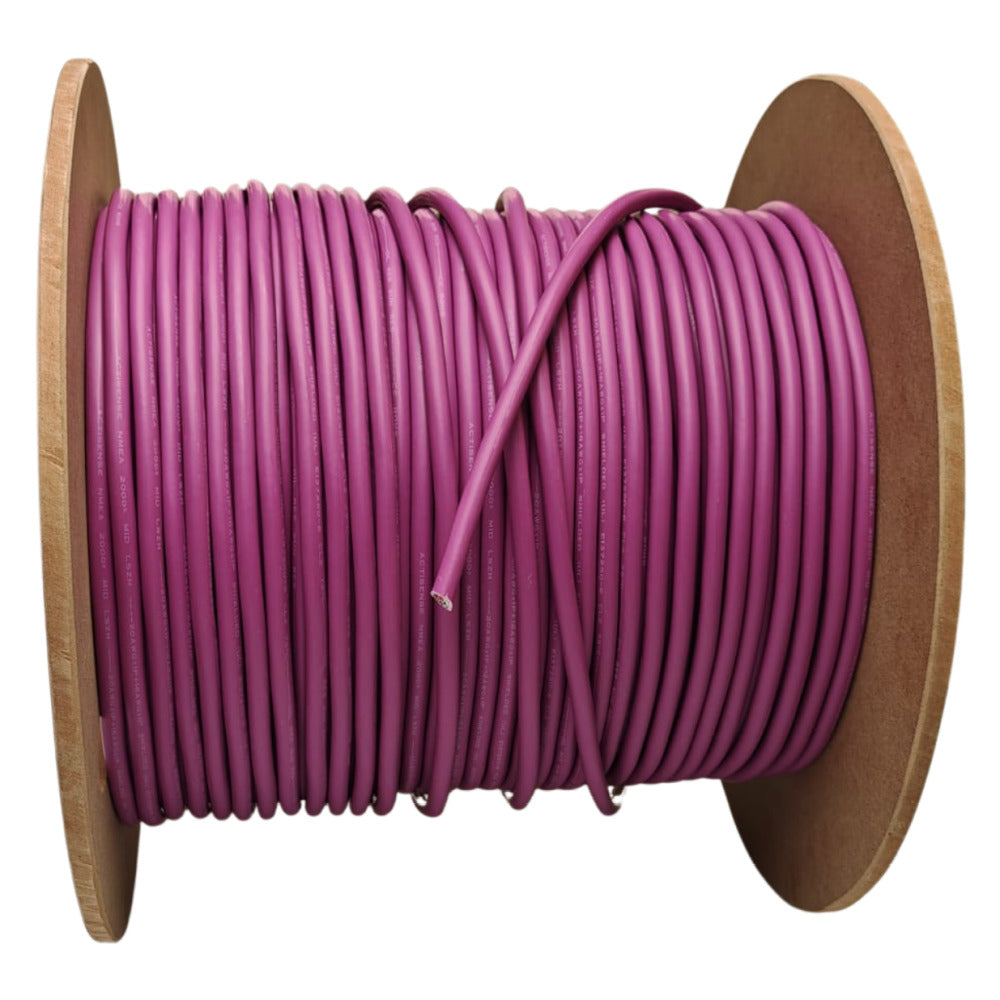

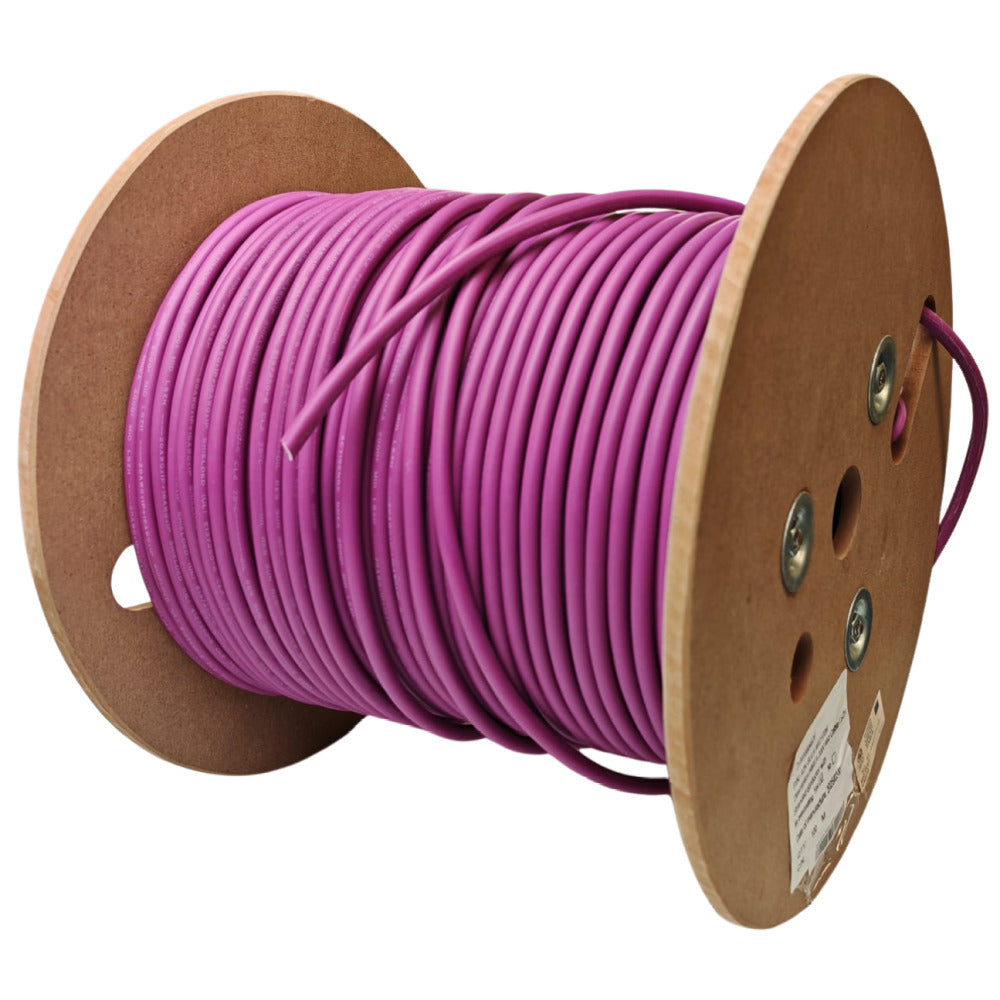

Actisense Bulk LSZH Mid Bulk Cable Reel - 100m
005-A2KBULKMID100M
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon
- Max Amps: 4A
- Power Pair: 18 AWG
- Data Pair: 20 AWG
This NMEA 2000 cable includes five wires within a single waterproof cable: Power and Ground wires two signal (data) wires and a drain wire. The drain wire connects to the cable shield which protects the signal power and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.
NMEA 2000 cable can be used to create a backbone up to 250 metres in length. The maximum permitted length of a drop cable (distance from the backbone) is 6 metres. It is important to limit each drop length to the minimum required as the total of all drop lengths must not exceed 72 metres. To help with this limitation Actisense have drop cable assemblies in varying lengths from 0.25 metres to 6 metres.
The Actisense range of NMEA 2000 connectors and cables has been designed using their specialist interconnect and NMEA knowledge.
