Tohatsu OEM 5HP 4STR L/S Sep Tk — Part #D-MFS5DS L
D-MFS5DS L
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 4 items left
- Backordered, shipping soon

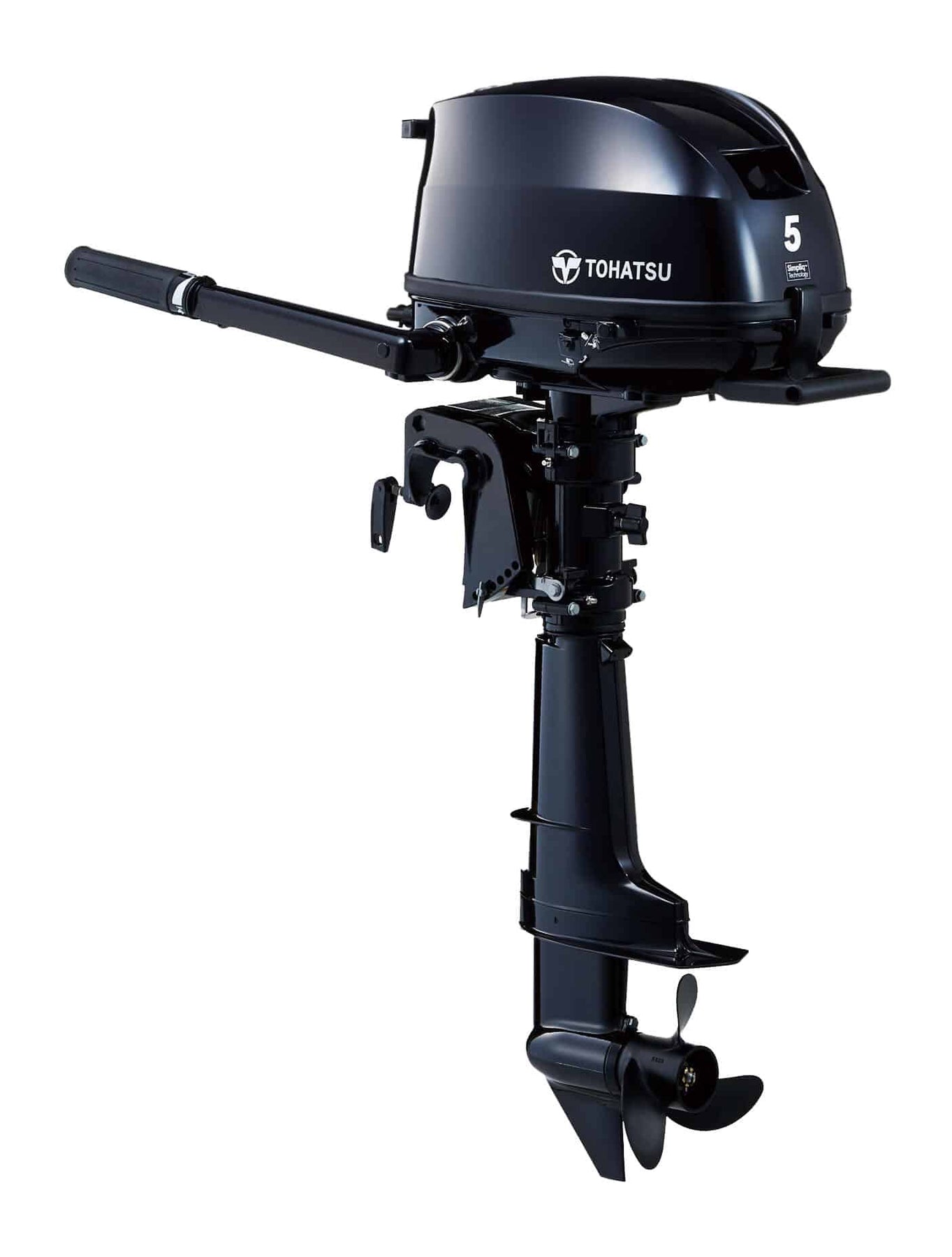

Tohatsu MFS5DS-L 5hp Outboard
4-Stroke Power | Long Shaft (20") | Separate Fuel Tank
For shipping cost please call before placing the order! It will be delivered on pallet so the price depends of your postcode!
The Tohatsu MFS5DS-L represents the pinnacle of portable 4-stroke marine power. This 5hp engine is engineered for boaters who require a "Separate Tank" (S) configuration and a "Long Shaft" (L) for deeper transoms. As part of the latest "D" series, it incorporates Tohatsu’s innovative design philosophy, offering exceptional fuel economy and the industry’s first 3-way storage system, which allows the motor to be stored on three different sides without the risk of oil leakage.
Key Features
- ✔ 3-Way Storage (Leak-free design)
- ✔ Large Carrying Handles (Front & Back)
- ✔ Front-Mounted Shift Lever
- ✔ Through-the-prop exhaust
- ✔ Digital CD Ignition for fast starts
Technical Specs
| Engine Type: | 1-Cylinder 4-Stroke OHV |
| Displacement: | 123 cc |
| Shaft Length: | 20 in (Long) |
| Weight: | 26 kg (approx.) |
| RPM Range: | 4,500 - 5,500 |
| Fuel Tank: | 12L External (Included) |
| Gear Ratio: | 2.15:1 |
Compatibility / Fitment Guide
| Application | Boat Type | Notes |
|---|---|---|
| Tenders/Inflatables | RIBs, SIBs, Dinghies | Ideal for 2.5m - 4.0m boats |
| Auxiliary Power | Small Sailboats / Yachts | Long shaft reaches water on high transoms |
| Fishing | Aluminum Skiffs | Quiet operation for trolling |
OEM Cross Reference
| Manufacturer | Cross Reference Model / Part No. |
| Tohatsu Corp. | MFS5DS-L, MFS5D, MFS5D L |
| Mercury Marine | 5hp 4-Stroke ML (Shared Architecture) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Tohatsu outboard engine, brand new and supplied with the standard manufacturer warranty through 4boats.co.uk.
How do I know if it is compatible?
Measure your boat's transom. This 'L' model is designed for a 20-inch transom height. If your transom is approximately 15 inches, you will require the Short Shaft (S) model.
Can this engine be stored on its side?
Yes, the MFS5D series features unique 3-way storage, allowing it to be stored on the front, left, or right side without oil leakage or engine damage.
Note: Outboard engines are shipped dry. You must add the correct grade and quantity of 4-stroke marine oil before first use.
