ST CLB 6-Position Circuit Breaker Block with Negative Bus | 4Boats
BSS5052
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price£96.00
/
Tax included.

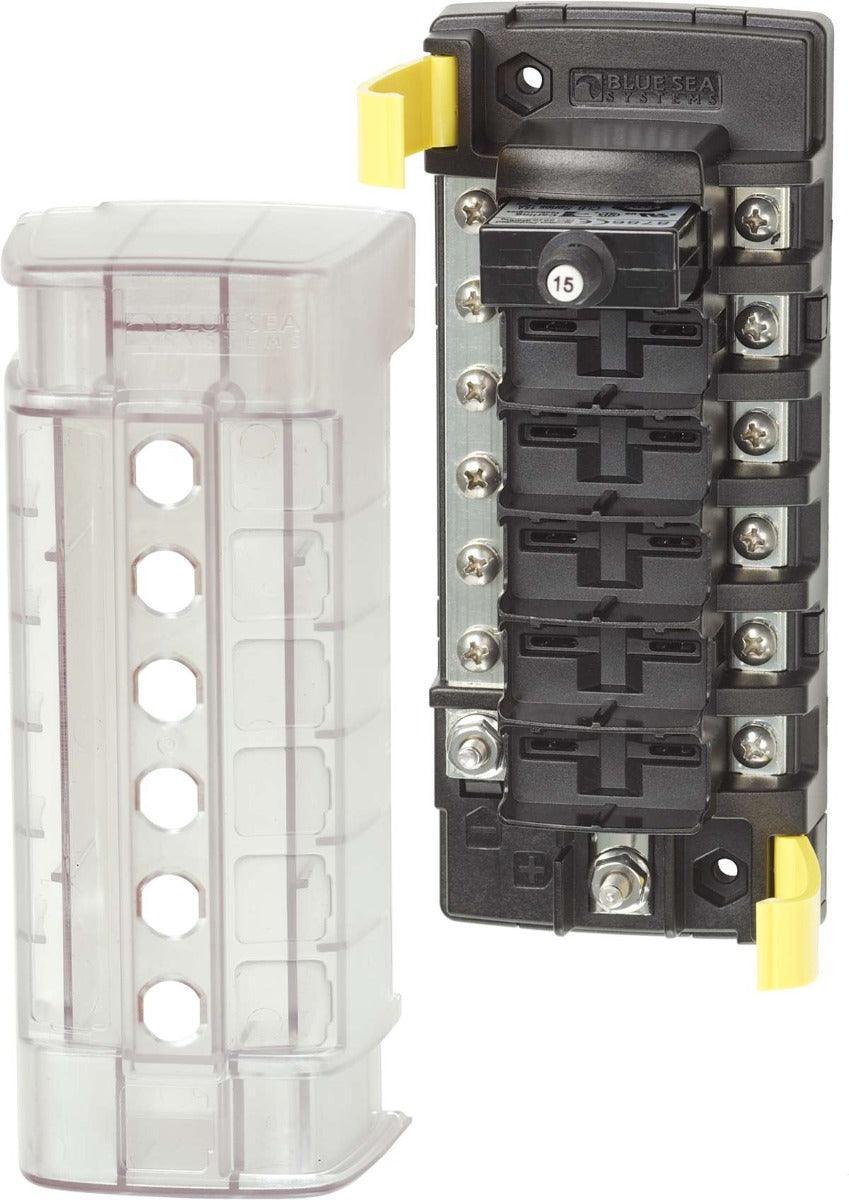

Compact 6-position DC circuit breaker block with integrated negative bus and durable terminal hardware for marine and vehicle electrical systems.
- 6 circuits
- Maximum amperage: 100 A per block; 32 A per circuit
- Maximum voltage: 32 V DC
- Negative bus: #10-32 stud; Positive bus: #10-32 stud
- Mounting: #8 screw (M4) or #8 nut; mounting centers 143 mm (5.63 in)
- Screw terminals: #8-32 screws with captive star lock washer
- Source: common source
- Operating temperature: -10 °C to 60 °C (14 °F to 140 °F)
- Height: 169.93 mm (6.69 in); Weight: 0.34 kg (0.75 lb)
Maximum amperage ratings depend on using appropriately sized breakers and conductors for the intended application.
