Get A Sharper View From Your Connected Helm

Panoptix Sonar Support

Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

Faster Sharper Smarter
With its ultrasleek design vivid sonar colour palette and high-resolution 12-inch in-plane switching display this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.

Optional Bluechart G3 Vision Charts
These optional charts offer the best of Garmin and Navionics data Auto Guidance3 technology and other premium navigation features.

Garmin Marine Network
If you have multiple compatible Garmin devices on your boat you can share information — such as maps user data radar and IP camera video — among them.

NMEA 2000 and NMEA 0183 Networks

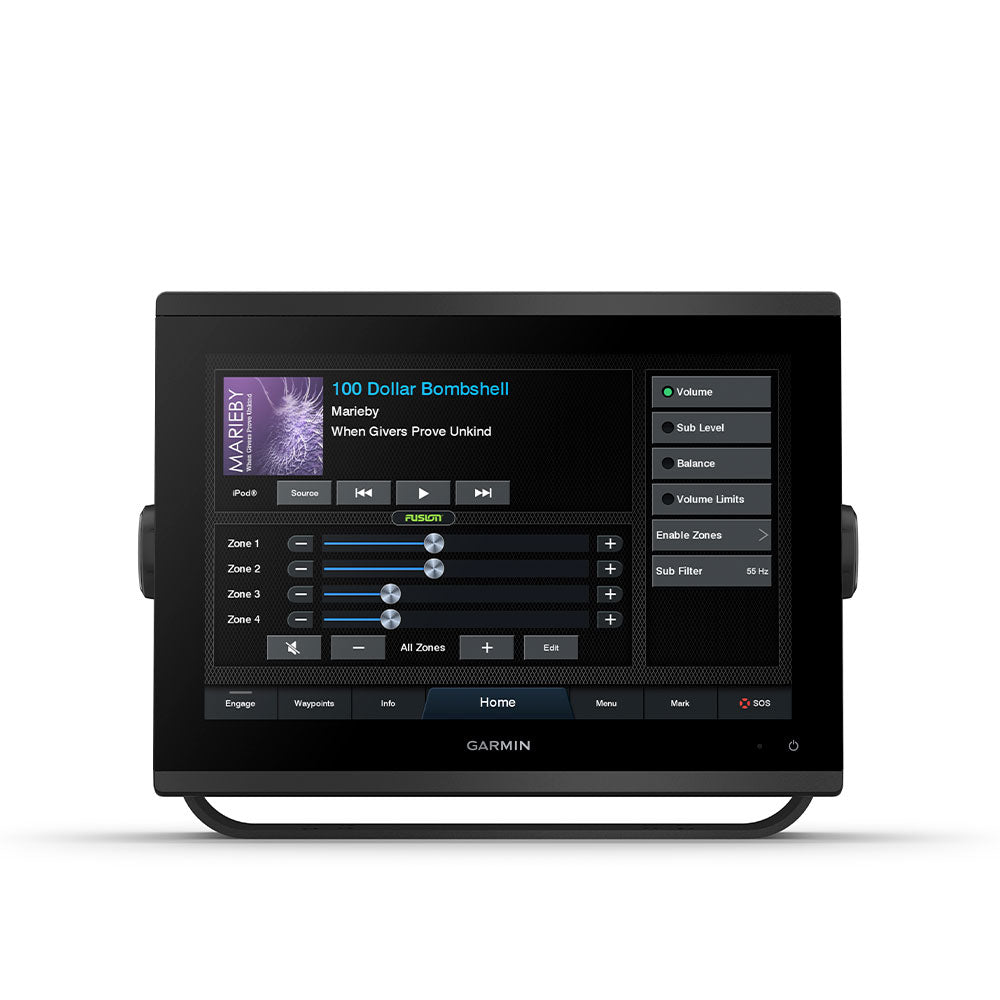

Connect to compatible autopilots digital switching weather Fusion-Link audio system media VHF AIS and more from one screen.

Activecaptain App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature smart notifications software updates Garmin Helm digital switching Garmin Quickdraw Community data and more.

Integrated ANT Technology
Connect with some of your favourite devices such as quatix marine watches gWind Wireless 2 transducers GNX Wind marine instruments and wireless remote controls.

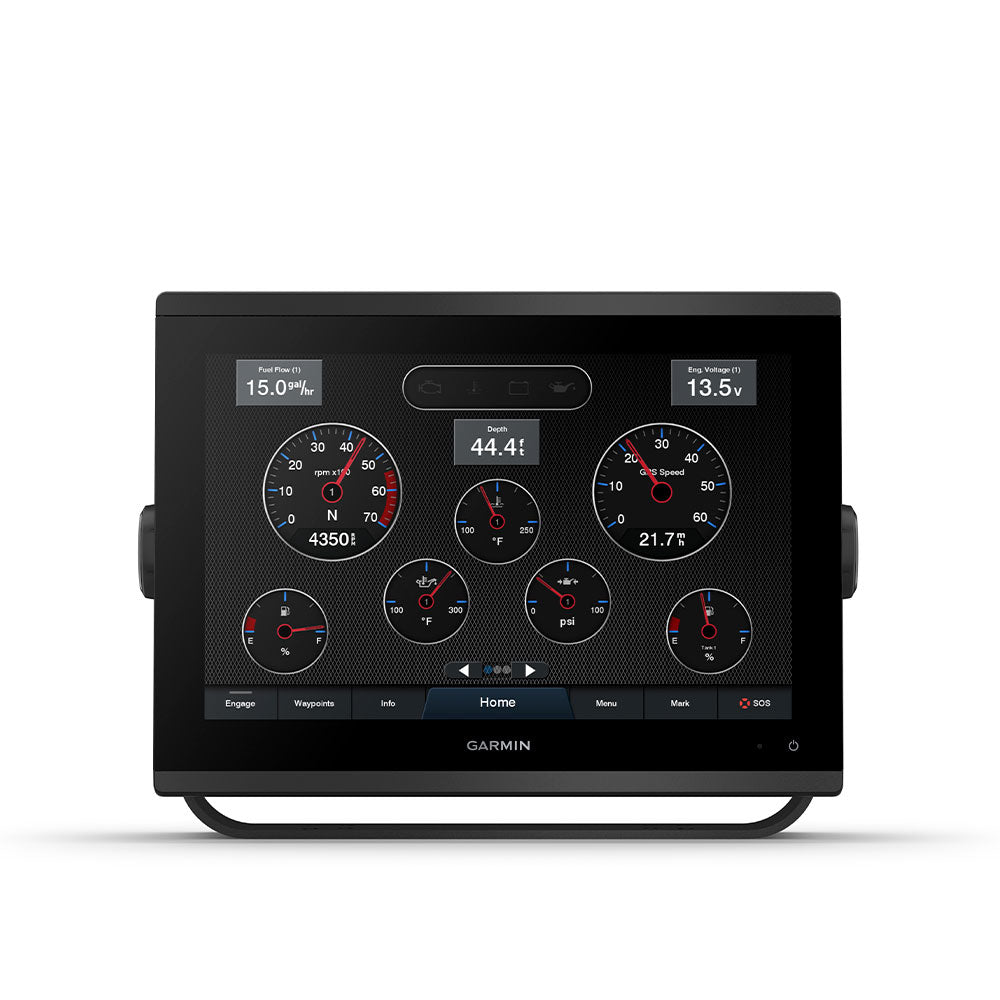

J1939 Connectivity
Now you can connect your chartplotter to different kinds of engines including select Yamaha engines.

Onehelm Feature
This exclusive feature brings together all the operations and capabilities of select third-party devices such as EmpirBus digital switching on one screen.

In The Box

• GPSMAP 1223 chartplotter
• microSD card preinstalled
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 metres)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
