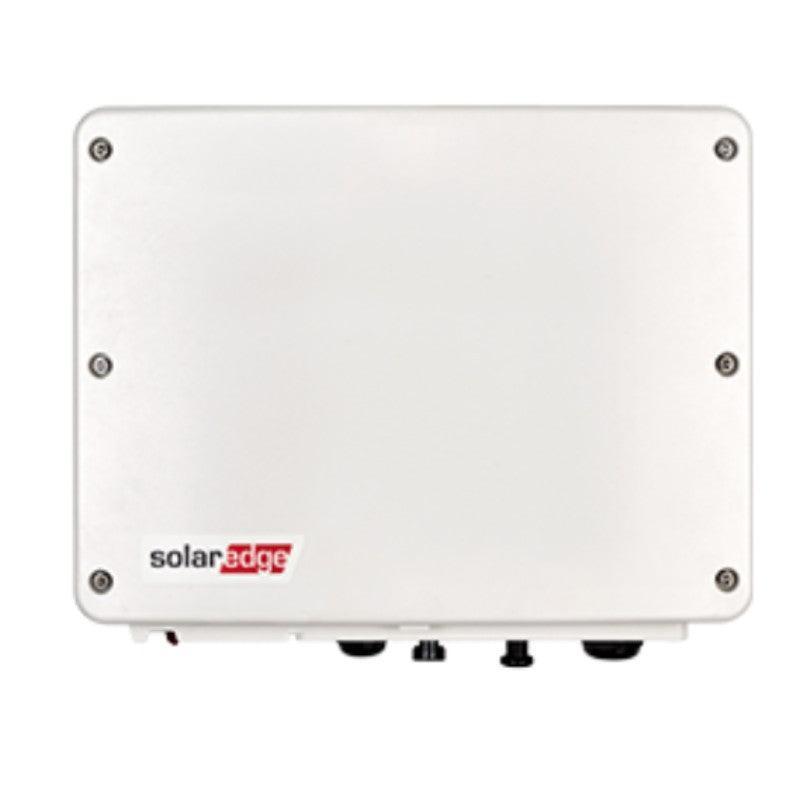

SolarEdge 3680W 1ph Home-Wave Inverter (Net Inverter)
SE3680W-NET
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon
- The Net Home-Wave Inverter Contains an extra 'plug-in slot' for both the E-NET card and either ZigBee or GSM.
The SolarEdge Home-Wave Inverter uses HD-Wave technology to provide an optimised installation. This is the 3680W version and maintains all of the key characteristics of the previous screenless SetAPP inverter whilst containing an extra 'plug-in slot' for both the E-NET card and ZigBee/GSM card.
Marked as a milestone in inverter technology, the award winning HD-Wave technology is a record-breaker in efficiency tests.
Small, light, efficient and superbly reliable – SolarEdge’s single phase inverters with innovative HD-Wave technology are now a firm favourite for installers and end-customers alike.
SolarEdge inverters will only work with power optimisers, which control module-level Maximum Power Point Tracking and voltage management. This means that the inverter is only responsible for DC to AC inversion – this is the secret of the HD-Wave technology. It uses smaller, lighter and more reliable thin film capacitors, allowing SolarEdge to rid most of the heavy metal parts from the inverter.
Commissioning requires using SolarEdges' SetApp on your mobile device.
- Max power: 3680W
- Max current: 16A
- Number of phases: 1
- Number of MPPT Not applicable
- V range of MPPT Not applicable
- Max power 7360W
- Max current 10.5A
- Max voltage 480V
- Start up voltage Not applicable
- Efficiency 99.2%
- IP rating IP65
- Built in protection Arc fault/Safe DC
- Export limitations Possible using meter
- Weight 7.8kg
- Dimensions 280x370x142mm
- Communication Ethernet, RS485, (Wifi, Zigbee, cellular optional)
- Warranty (extensions) 12 years (20 or 25 years extensions available)
