Growatt MOD 8kW 3-Phase Hybrid Inverter – Battery Ready | IP66 | Dual MPPT | OLED Display

Growatt MOD 8kW 3-Phase Hybrid Inverter – Battery Ready | IP66 | Dual MPPT | OLED Display

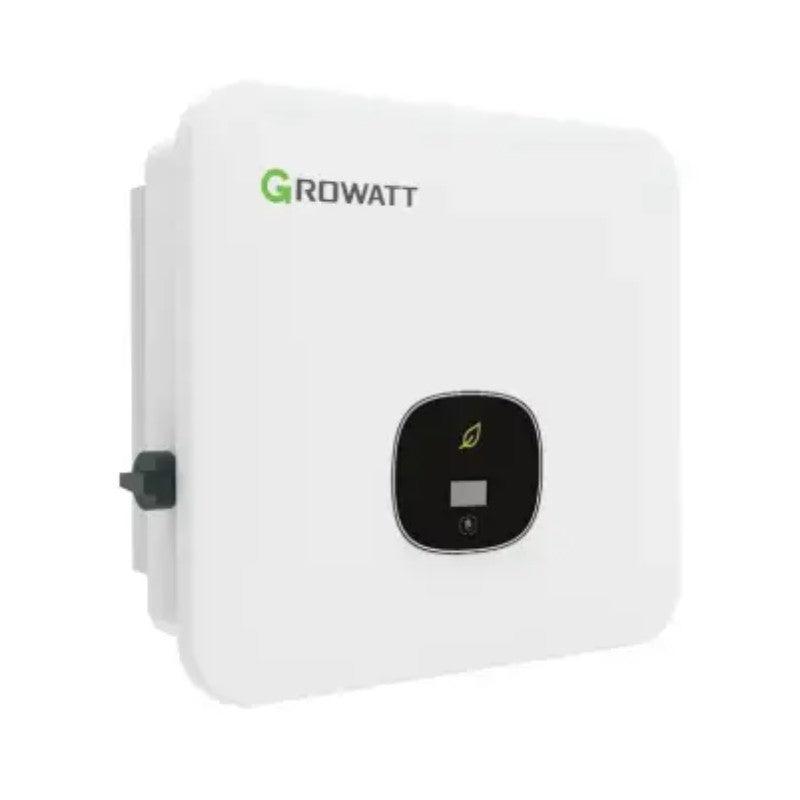

The Growatt MOD 8000TL3-XH is a high-performance three-phase hybrid inverter engineered for residential and light commercial solar PV systems. With 8kW of output power and dual MPPT tracking, it efficiently converts DC from solar panels into AC, while offering future-proof energy storage compatibility and advanced monitoring.

✅ Key Features:

• 🔋 Battery Ready – Seamless upgrade to hybrid system with compatible Growatt ARK XH batteries

• ⚡ High Output Power – Max 8000W AC with up to 14000W DC input

• 🌞 Dual MPPTs – 2 independent trackers for flexible panel configurations

• 📱 Smart Monitoring – OLED display with touch keys, WiFi, RS485, and optional LAN/4G

• ☔ Rugged Design – IP66-rated aluminium casing for indoor & outdoor installation

• 🔒 Integrated DC Switch & Protection – AFCI (optional), Type II SPD, and residual current monitoring

• 🌍 European Certified – G98/G99, VDE0126, EN50549, CEI0-21, and more

⚙️ Specifications:

• AC Output Power: 8000W

• Max AC Current: 13.3A

• DC Input Power (Max): 14000W

• MPPT Voltage Range: 140V – 1000V

• Max DC Voltage: 1100V

• Max Efficiency: 98.6%

• Battery Ready: Yes (ARK XH Compatible)

• Weight: 14kg

• Dimensions: 425 x 387 x 178 mm

• Protection Rating: IP66

• Warranty: 10 Years Standard (UK warranty coverage)

📦 In the Box:

• Growatt MOD 8000TL3-XH Inverter

• Wall bracket & mounting accessories

• AC & DC connectors

• Quick installation manual

🔧 Installation Requirements:

• Professional electrical installation required

• Ambient temperature: –25°C to +60°C

• Clearance: 500mm above/below, 300mm sides/front
