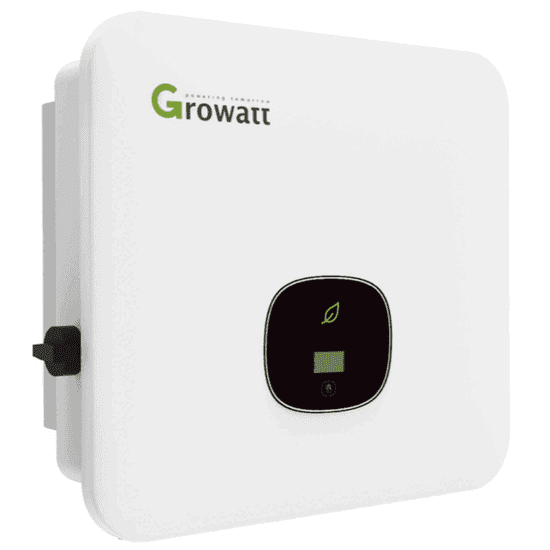

Growatt MOD 6000 TL3-X Three Phase Inverter
TL3-6000<10k
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 3 items left
- Backordered, shipping soon
No reviews
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price£799.00
/
Tax included.
The TL3-X series from Growatt are compact and light three phase inverters. With two MPPTs, the MOD 3-15K TL3-X series can be connected to two strings, and are therefore suitable for connecting two different panel arrays.
The Growatt TL3-X range offer a suitable solution for larger 3-phase residential systems, as well as smaller commercial systems. The compact design enables ease of transportation and installation, whilst the IP66 rating enables flexibility in location.
The ultra-low start-up and wide working voltages enable wider power generation windows.
AC attributes
Max power: 6000W
Max current: 10A
Number of phases: 3
DC attributes
Number of MPPT 2
V range of MPPT 140 - 1000V
Max power 9000W
Max Isc current 16A
Max voltage 1100V
Start up voltage 160V
System
Max efficiency 98.3%
IP rating IP66
Weight 12.5kg
Dimensions 425x387x178mm
Communication USB/RS485 (Optional- WiFi/GPRS/LAN/RF)
Key features
-
Dual independent MPPTs
- Built-in DC switch
- High maximum efficiency 98.6%
- Touch key and OLED display
- Optional AFCI (Arc-Fault Circuit Interrupter function)
- IP66 protection grade
- Easy installation
