SEAFLO Pressure Pump 33 Series 24V 3.0 gpm 45 psi
DP203004533
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship

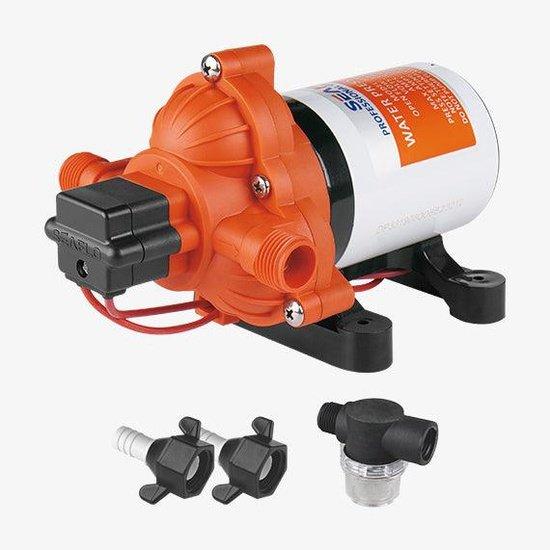

Seaflo Water Pressure Pump - 33 Series 24V 3.0 GPH / 1.3 LPH
33 Series DC Diaphragm Pump
The water pressure pump - 33 series has: An on-demand long life pressure switch, adjustable pressure switch. Is self-priming and capable of being run dry. Quiet operation with rubber feet for vibration and noise reduction.
- 3-Chamber diaphragm pump
- Industry standard mount pattern
- Thermal overload protected with Automatic restart feature
- Marine grade blocked wiring
- 60Β°C (140Β°F) temperature limit
- Shut-off pressure 45 PSI: 35 PSIΒ±5 PSI (Β±0.3 bar)
- Valves: EPDM Diaphragm: Santoprene Inlet/Outlet Ports: 1/2" - 14 MNPT
- Meets or exceeds RoHS, SGS and ISO standards
- 4 Year Warranty
| Weight | 1.8 kg |
|---|---|
| Brand | Seaflo |
| Voltage | 24V |
| Flow Rate | 3.0 GPH / 11.3 LPH |
| Control Type | Switch |
| Wire Connector | 16 AWG x 11.4 cm |
| Priming Capabilities | 1.8 m / 6' |
| Max Draw | 3.40 A |
| Shut off pressure PSI BAR | 45 / 3.1 |
MORE FEATURES & BENEFITS
β’Β Capable of supplying 2-3 fixtures
β’Β Up to 3.0 GPM
β’Β Self priming
β’Β Continuous Duty
β’Β Run dry safe
β’Β Quiet operation
β’Β On-demand use
β’Β Industry Standard mounting pattern
β’Β Completely rubber mounting-base
β’Β Adjustable pressure switch
β’Β 16 AWG, 4.5"(11.4 cm) long LeadsΒ Β Β Β Β Β Β
β’Β 2 Year Warranty
β’Β Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow |
Max Draw |
Shut-off Pressure |
| SFDP1-030-045-33 | 12V | 3.0 / 11.3 | 6.74A | 45 / 3.1 |
| SFDP2-030-045-33 | 24V | 3.0 / 11.3 | 3.40A | 45 / 3.1 |
| SFDP1-028-045-33 | 12V | 2.8 / 10.6 | 5.61A | 45 / 3.1 |
| SFDP2-028-045-33 | 24V | 2.8 / 10.6 | 3.02A | 45 / 3.1 |
| SFDPA1-030-045-33 | 115V | 3.0 / 11.3 | 1.60A | 45 / 3.1 |
| SFDPA2-030-045-33 | 220V | 3.0 / 11.3 | 0.80A | 45 / 3.1 |
2.8GPM / 45PSI
|
PRESSURE |
12V |
24V |
|||||
|
FLOW |
CURRENT |
FLOW |
CURRENT |
||||
|
PSI |
BAR |
GPM |
LPM |
AMPSΒ Β |
GPM |
LPM |
AMPSΒ Β |
|
0 |
0 |
2.56 |
9.70 |
2.80 |
2.62 |
9.90 |
1.56 |
|
10 |
0.69 |
2.11 |
8.00 |
4.46 |
2.17 |
8.20 |
2.34 |
|
20 |
1.38 |
1.80 |
6.80 |
4.82 |
1.85 |
7.00 |
2.48 |
|
30 |
2.07 |
1.43 |
5.40 |
5.27 |
1.48 |
5.60 |
2.61 |
|
40 |
2.72 |
1.11 |
4.20 |
Β |
|||
