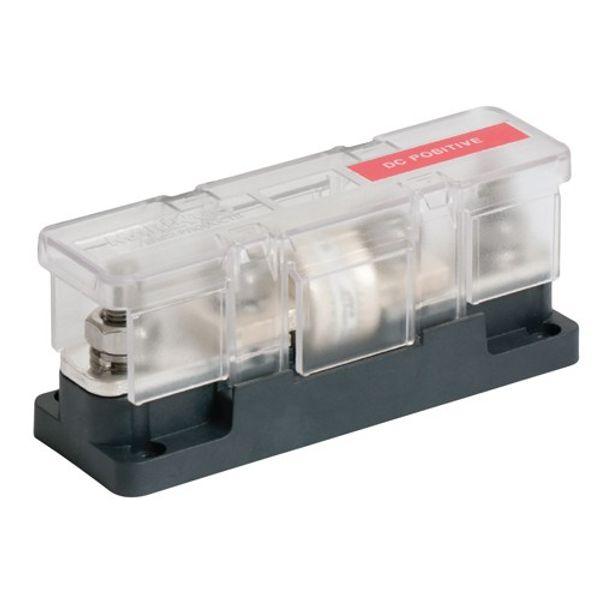

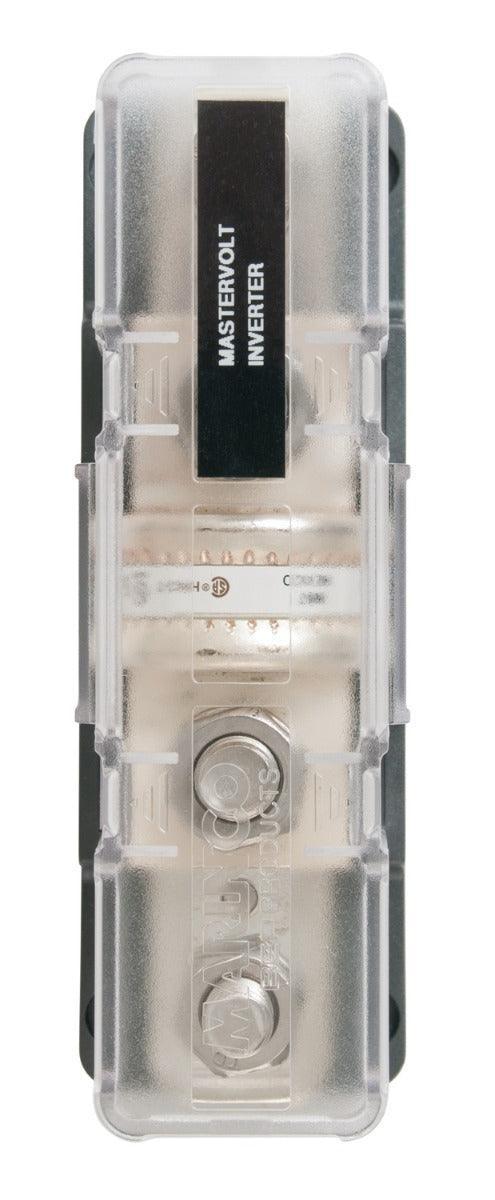

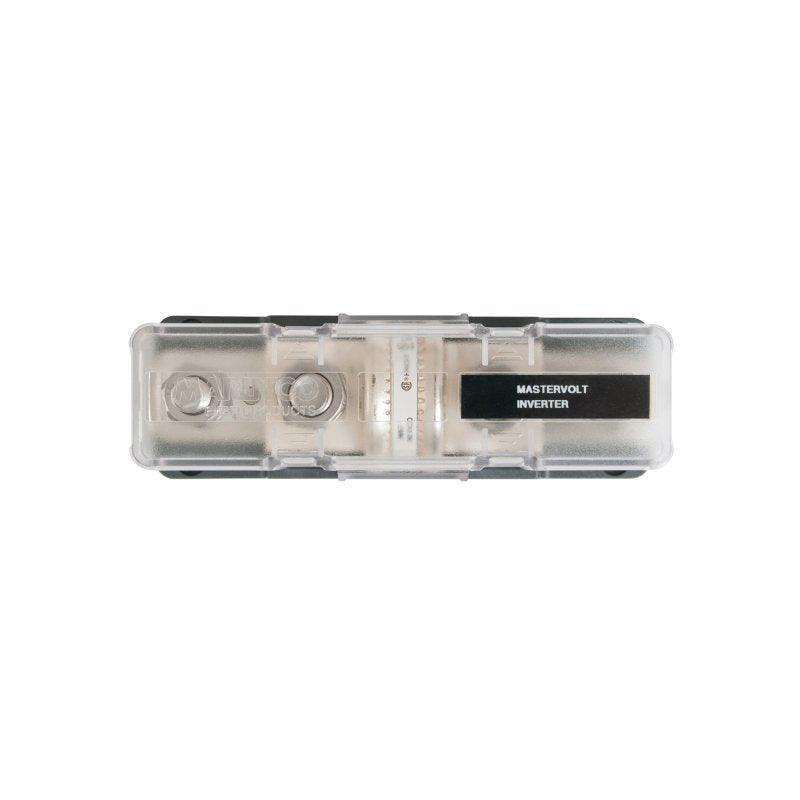

Pro Installer Class-T Fuse Holder 225-400A & 450-600A | 4Boats

Pro Installer Class-T Fuse Holder with two studs, available in 225–400 A and 450–600 A variants, is engineered for fast-acting protection in high-current marine, RV and battery bank applications. Compatible with Mastervolt Lithium‑Ion and AGM systems and built for harsh conditions.

• Class-T fusing – provides fast-acting protection for high-power circuits and long-term reliability.
• Heavy-duty studs – cable connection studs: 10 mm (3/8"); fuse mounting studs: 10 mm (3/8") for the 225–400 A holder and 12 mm (1/2") for the 450–600 A holder.
• High-temperature base – fibre-reinforced plastic base for superior strength and chemical resistance.
• Durable construction – tinned CDA102 copper conductors and stainless steel studs for long-lasting performance in marine conditions.
• Clear polycarbonate cover – protects the fuse while allowing easy inspection.
• Part numbers – 8-93524 (225–400 A), 8-93525 (450–600 A).
• Ratings & compatibility – voltage rating 50 VDC; fuse type Class-T (JLLN / TJN / A3T); maximum amperage determined by fuse sizing (up to 400 A or 600 A depending on variant).
• Size & weight – dimensions: 147 × 49 × 61 mm (5.8 × 1.9 × 2.4 in); weight: 351 g (225–400 A), 382 g (450–600 A).
• Applications – marine and RV systems, battery banks, and other high-power electrical systems requiring reliable circuit protection.

Ensure reliable circuit protection and system longevity with the Pro Installer Class-T Fuse Holder, ideal for demanding marine and high-current applications.
