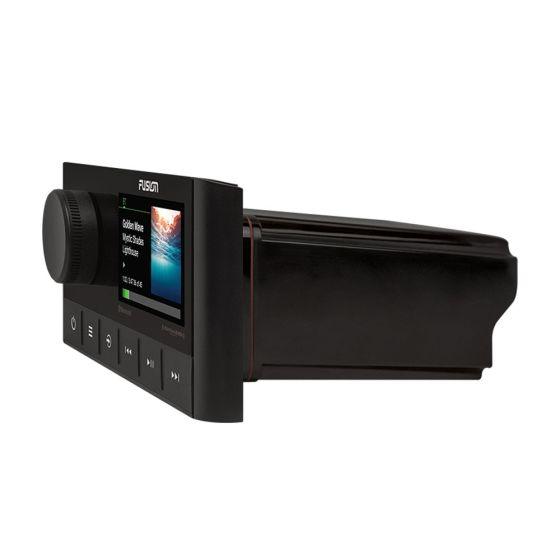

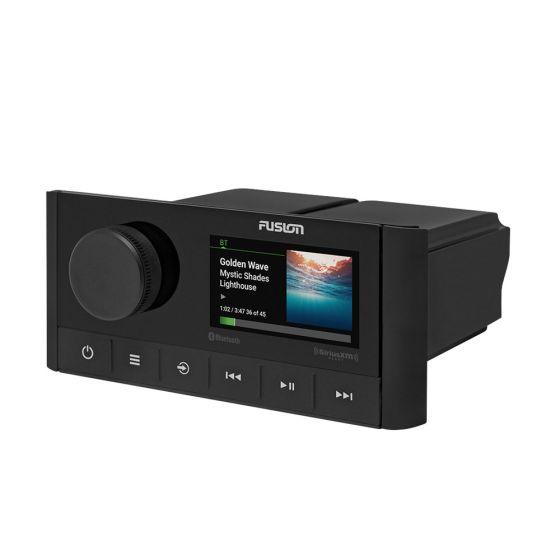

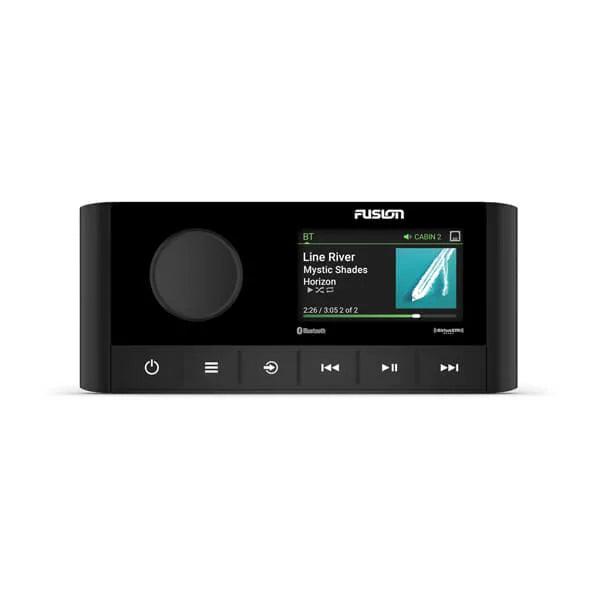

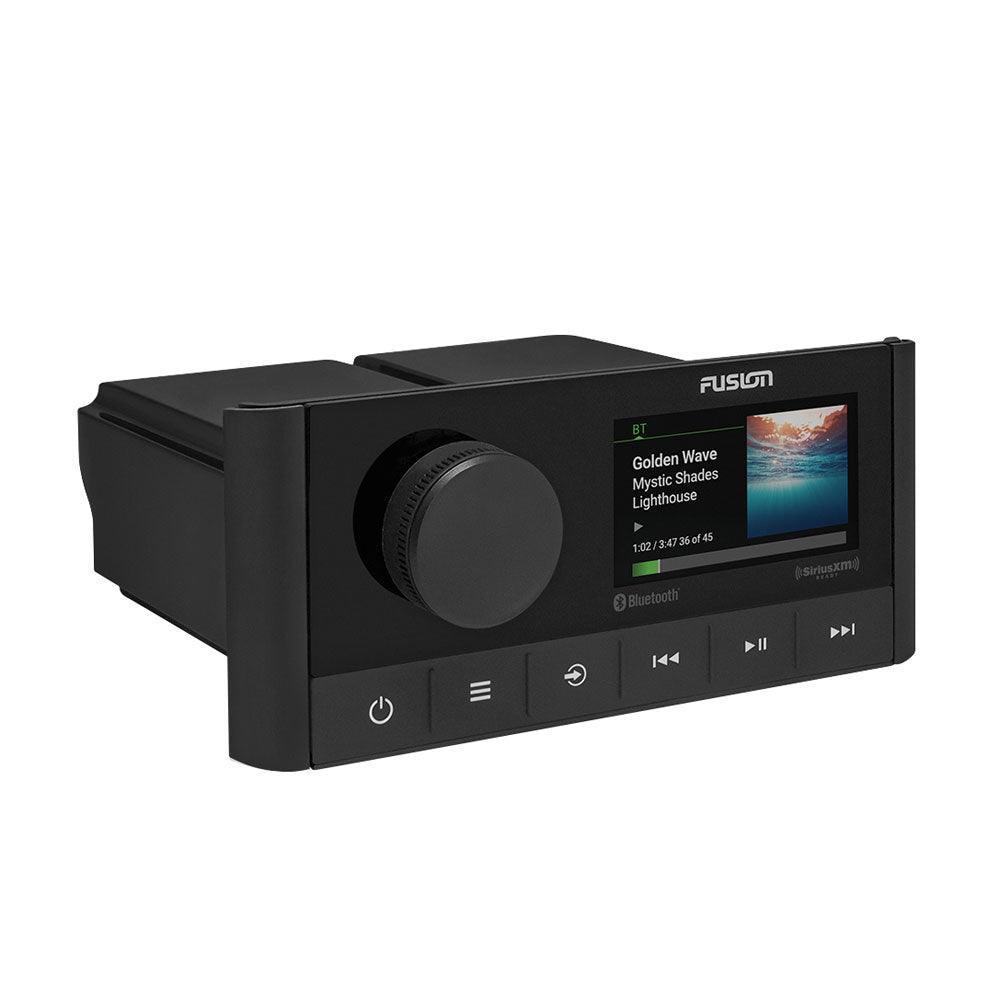

Fusion MS-RA210 Marine Entertainment System with Bluetooth & DSP

Fusion MS-RA210 Marine Stereo | Bluetooth, DSP, NMEA 2000, Multi-Zone Technology

High-Performance Marine Stereo | Waterproof, Class-D Amplifier, 200W Peak Power

Product Overview

The Fusion MS-RA210 Marine Stereo is an advanced on-water entertainment system, offering high-quality audio, modern design aesthetics, and advanced connectivity. Featuring Fusion’s Digital Signal Processing (DSP) technology, Multi-Zone™ Technology, and Fusion-Link™ integration, this stereo ensures an optimized audio experience across multiple zones on your vessel.

Designed for durability, it meets IPX6 & IPX7 water resistance ratings, ensuring protection against water, fogging, and condensation. The built-in Class-D amplifier delivers higher efficiency and greater output, meaning you can enjoy crystal-clear music with minimal battery drain.

Key Features & Benefits

✔ High-Quality Digital Sound Processing (DSP) – Optimizes audio output for enhanced listening experiences in different environments.
✔ Optically Bonded Color LCD Display – 2.7" sunlight-readable screen with color album art display for easy track identification.
✔ Fusion-Link™ Connectivity – Control your music from a Garmin watch, smartphone, tablet, or MFD (NMEA 2000 network required).
✔ Multi-Zone™ Technology (2 Zones) – Customize independent audio settings across two separate areas on your boat.
✔ Built-in Class-D Amplifier – Provides greater efficiency, higher power output, and lower power consumption.
✔ 200W Peak Power Output – 26W RMS per channel at 4 ohms, ensuring powerful sound performance.
✔ IPX6 & IPX7 Weatherproof Protection – Durable marine design for long-lasting performance in harsh environments.
✔ Bluetooth & USB Connectivity – Stream music wirelessly or play audio directly from a USB drive or smartphone.
✔ SiriusXM & DAB+ Ready – Compatible with satellite radio (SiriusXM) and digital radio (DAB+ in select regions).
✔ Compact & Versatile Installation – Uses the same footprint as MS-RA205, making installation and upgrades easy.

Technical Specifications

🔹 Physical Dimensions (H x W x D): 68 x 157 x 126.6 mm
🔹 Weight: 350g (12.4 oz)
🔹 Water Rating: IPX6 & IPX7 (Front panel only, when properly installed)
🔹 Power Input: 10.8-16 VDC
🔹 Max Current Draw: 15A
🔹 Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
🔹 Compass-Safe Distance: 150 mm

Stereo Features

🎵 Display: 2.7" optically bonded color LCD
🎵 Amplifier Type: Built-in Class-D (4 Ohm stable)
🎵 Peak Power Output: 200W
🎵 RMS Power Output: 26W x 4 channels @ 14.4V input
🎵 Fusion-Link™ Control: Compatible with MFDs, smartphones, and Garmin watches
🎵 Multi-Zone™ Technology: Two independent audio zones
🎵 Bluetooth Wireless Streaming: Yes
🎵 ANT Wireless Connectivity: Yes

Supported Audio Sources

📡 AM / FM Radio
📡 Bluetooth Streaming
📡 USB Audio / iPhone / iPod / AUX Input
📡 SiriusXM-Ready (Requires optional SiriusXM tuner – USA only)
📡 DAB+ Ready (Europe & Australia – Requires DAB100A antenna module)

Connectivity Options

🔌 Aux Input: 1x RCA
🔌 NMEA 2000 Port: 1x NMEA 2000
🔌 USB Port: 1x USB 2.0
🔌 SiriusXM Connector: 1x SiriusXM Port
🔌 AM/FM Antenna Port: 1x Motorola Connector
🔌 Speaker Connections: 4 speaker connections (2 zones amplified)
🔌 RCA Pre-Out (L, R, Subwoofer): 2 zones (requires external amp)
🔌 Line Out: Zone 1, Zone 2 (L+R, requires external amp)
🔌 Subwoofer Out: Zone 1, Zone 2 (requires external amp)

Why Choose the Fusion MS-RA210?

✔ Designed for Marine Use – Waterproof, weatherproof, and corrosion-resistant.
✔ Premium Sound Quality – Fusion’s DSP technology ensures clear, distortion-free audio.
✔ Multiple Audio Zones – Independent volume control & custom settings for two separate areas.
✔ Advanced Connectivity – Fusion-Link™, NMEA 2000, Bluetooth, USB, & SiriusXM support.
✔ Compact & Easy to Install – Same footprint as MS-RA205, making upgrades effortless.

🎧 Enjoy the ultimate on-water audio experience with Fusion’s MS-RA210 Marine Stereo!
